P6 Outdoor LED Module 192×192mm

P6 Outdoor LED Module 192×192mm

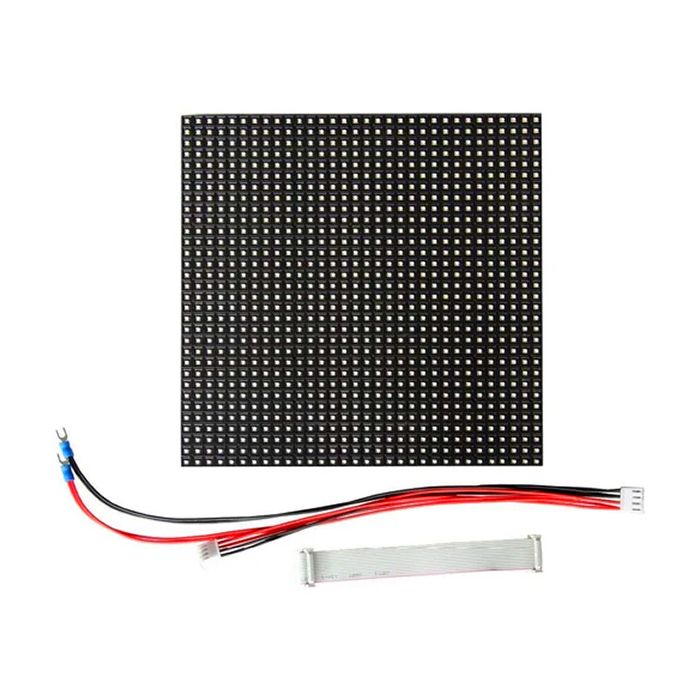

This P6 mm outdoor LED display module (192 × 192 mm) is a rugged high-visibility solution tailored for outdoor signage, digital billboards and façade screens throughout Bangladesh. With a 6 mm pixel pitch, module size 192 × 192 mm and robust SMD3535 LED technology, the panel offers excellent readability in bright daylight, solid durability for outdoor installation, and is built for the local climate and usage demands.

Key Features

• Pixel pitch: 6 mm – ideal for outdoor viewing distances of approximately 6 m to 60 m.


• Module size: 192 mm × 192 mm, resolution 32 × 32 pixels.


• LED type: SMD3535 for high uniformity, brightness and weather-tolerance.


• Brightness: Typical 5,500-6,000 cd/m² – ensures clear visibility even in strong daylight.


• Viewing angles: ~140° horizontal & ~140° vertical for wide audience coverage.


• Outdoor-rated protection: IP65, designed for weather-resistant outdoor use.


• Long lifespan: Operating life ≥ 100,000 hours; very low pixel failure rate (≤ 0.01%).

• Includes data & power cables and waterproof rubber ring for outdoor installation readiness.



Technical Specifications:

Why This Module is Ideal for Bangladesh

For outdoor installations in Bangladesh, such as roadside advertising, building facades, stadium perimeter LED walls or event signage, this P6 mm 192×192 mm module offers a strong balance between cost-effectiveness and performance. The 6 mm pitch is large enough for mid-to-long distance readability, while maintaining good image clarity for typical outdoor viewing scenarios. With high brightness levels and IP65 weather rating, it is built to perform reliably in the tropical environment (sunlight, rain, humidity) that Bangladesh often presents. A local supplier channel can also streamline delivery, installation support and maintenance in the Bangladesh market.
