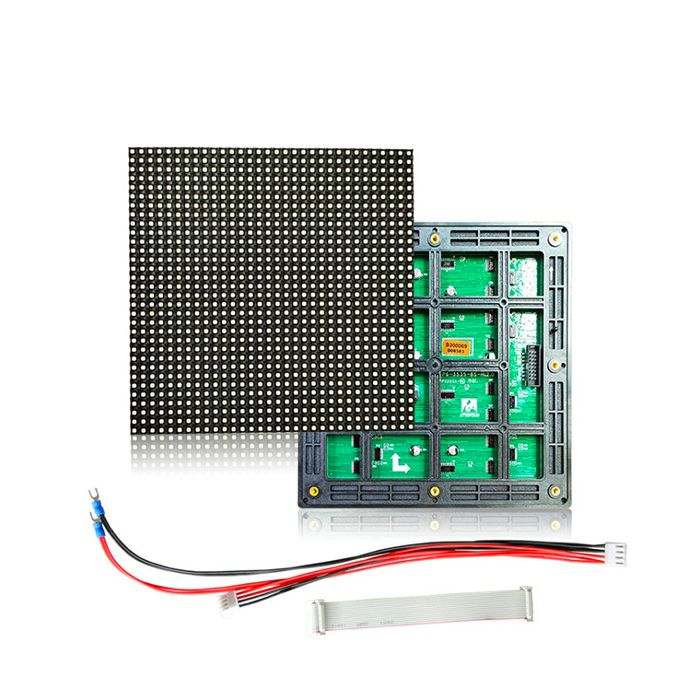

P6 Outdoor LED Display Module
P6 Outdoor LED Display Module
Pixel Pitch: 6 mm
LED Arrangement; SMD3535
Module Size: 192 mm × 96 mm
Resolution (H×V): 32 × 16 pixels
Brightness: ~5,500-6,000 cd/m² (typical)
Best Viewing Distance: ≈ 6 m to ~60 m
Viewing Angle: ~140° H / ~140° V
Brightness Adjustment: 100 levels
P6 Outdoor LED Display Module
This P6 mm outdoor LED display module is built for high-visibility outdoor signage in the Bangladeshi market. With a 6 mm pixel pitch and a compact module size of 192 mm × 96 mm (32 × 16 pixel resolution), it provides crisp visuals at medium to long viewing distances. Featuring SMD3535 LEDs, high brightness, IP65 protection and rugged design, it is ideal for billboards, façade screens, building-exterior advertising and other outdoor installations in the local climate.
Key Features
-
Pixel pitch of 6 mm delivering optimal clarity for outdoor viewing distances of ~6 m and above.
-
Compact module size: 192 mm × 96 mm (32 H × 16 V pixels) for flexible cabinet design.
-
LED type: SMD3535 offering high uniformity and outdoor durability.
-
High brightness level (~5,500-6,000 cd/m²) for strong visibility even in daylight.
-
Wide viewing angles (≈ 140° horizontal & vertical) for broad audience coverage.
-
IP65 outdoor protection, designed for weather-resistant installations.
-
Long service-life design (100,000 hours typical) & low pixel-failure rate (≤ 0.01 %).
Technical Specifications:
|
Parameter |
Specification |
|
Model |
P6 mm Outdoor-32×16 |
|
Pixel Pitch |
6 mm |
|
LED Arrangement |
SMD3535 |
|
Module Size |
192 mm × 96 mm |
|
Resolution (H×V) |
32 × 16 pixels |
|
Brightness |
~5,500-6,000 cd/m² (typical) |
|
Best Viewing Distance |
≈ 6 m to ~60 m |
|
Viewing Angle |
~140° H / ~140° V |
|
Grey Scale / Colour Depth |
8-bit input corrected to 16-bit; 16.7 M colours |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
AC 100-240 V, 50/60 Hz |
|
Max Power Consumption |
~850 W/m² |
|
Average Power Consumption |
~480 W/m² |
|
Refresh Rate |
~960-1,920 Hz |
|
Operating Temperature |
–20 °C to +60 °C |
|
Operating Humidity |
10% to 95% RH |
|
Protection Level |
IP65 |
|
Life Expectancy |
≥ 100,000 hours |
|
Pixel Failure Rate |
≤ 0.01% |
Why It’s Ideal for Bangladesh
For outdoor installations in Bangladesh, whether roadside advertising, stadium perimeter screens or building-wrapped media facades, this P6 mm outdoor module offers the right mix of cost-effectiveness and durability. The 6 mm pitch provides sufficient resolution for typical viewing distances, while the robust outdoor features (high brightness + IP65) ensure reliable performance in the tropical climate. Local suppliers can provide quicker delivery, support for installation, calibration and spare parts, key for long-term stable operation in Bangladesh.
| Call for Price | No |
|---|---|
| Brand | Varito |
