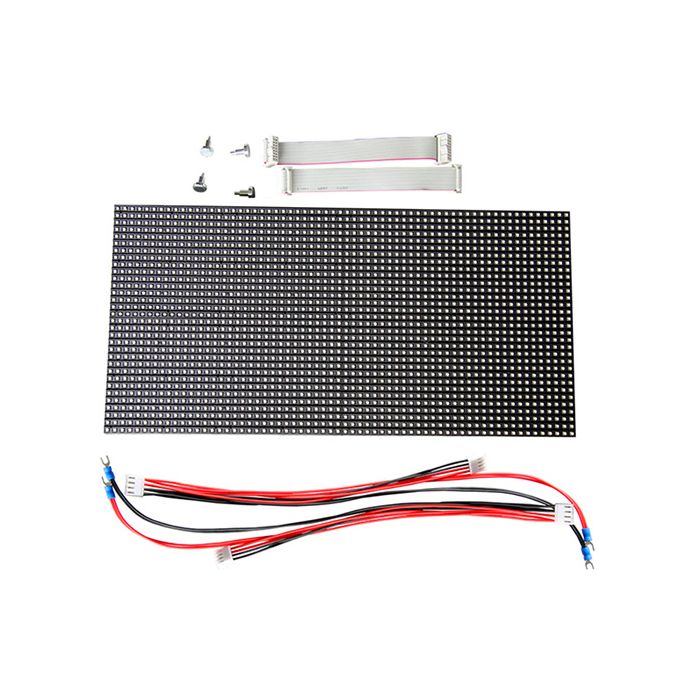

P6.67 Outdoor LED Display Module
P6.67 Outdoor LED Display Module
Pixel Pitch: 6.67 mm
LED Arrangement: SMD3535 (3-in-1)
Module Size: 320 mm × 160 mm
Module Resolution (H × V): 48 × 24 pixels
Brightness: ~5,500 – 6,000 cd/m²
Best Viewing Distance: ≈ 6.6 m to ~67 m
Viewing Angle: ~140° (H) / ~140° (V)
Brightness Adjustment: 100 levels
P6.67 Outdoor LED Display Module
This P6.67 mm outdoor LED display module offers a compelling combination of image clarity and durability for outdoor signage, commercial facades and advertising screens in Bangladesh. With a 6.67 mm pixel pitch, module size of 320 × 160 mm and high-performance SMD3535 LEDs, it ensures visibility in bright ambient daylight, robust weather resistance (IP65 rating) and reliable lifespan for outdoor installations.
Key Features
-
Pixel pitch: 6.67 mm – ideal for outdoor viewing distances starting around ~6.6 m and extending to ~67 m.
-
Module size: 320 mm × 160 mm, resolution 48 (H) × 24 (V) pixels.
-
LED type: SMD3535 (3-in-1 full colour) for high uniformity and good outdoor visibility.
-
High brightness level: up to ~5,500-6,000 cd/m² (typical) – strong readability in daylight.
-
Wide viewing angle: approx. 140° horizontal & vertical, allowing broad audience visibility.
-
Outdoor-rated protection: IP65 – resistant to rain, dust, and humidity for Bangladesh’s climate.
-
Long expected lifespan: ≥ 100,000 hours, minimal pixel failure, designed for outdoor durability.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
P6.67-O-48×24 |
|
Pixel Pitch |
6.67 mm |
|
LED Arrangement |
SMD3535 (3-in-1) |
|
Module Size |
320 mm × 160 mm |
|
Module Resolution (H × V) |
48 × 24 pixels |
|
Brightness |
~5,500 – 6,000 cd/m² |
|
Best Viewing Distance |
≈ 6.6 m to ~67 m |
|
Viewing Angle |
~140° (H) / ~140° (V) |
|
Grey Scale / Colour Depth |
8-bit input, corrected to 16-bit; 16.7 M colours |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
AC 100-240 V, 50/60 Hz |
|
Max Power Consumption |
~800 W/m² |
|
Average Power Consumption |
~400 W/m² |
|
Refresh Rate |
|
|
Operating Temperature |
–20 °C to +60 °C |
|
Operating Humidity |
10% to 95% RH |
|
Protection Level |
IP65 |
|
Life Expectancy |
≥ 100,000 hours |
|
Pixel Failure Rate |
≤ 0.01% |
Why This Module Is Well-Suited for Bangladesh
For outdoor installations in Bangladesh, such as roadside billboards, building façade media walls, stadium perimeter screens or mall exteriors, this P6.67 mm outdoor module hits a sweet spot between cost-effectiveness and image clarity. The 6.67 mm pitch offers adequate resolution for moderate distances, while the robust high-brightness, IP65 protection and outdoor-optimized design guarantee reliable operation in tropical sunlight, heavy rain, humidity and high dust conditions. Having a local supplier also means faster delivery, on-site support, spare-part availability and easier maintenance for long-term performance.
| Call for Price | No |
|---|---|
| Brand | Varito |
