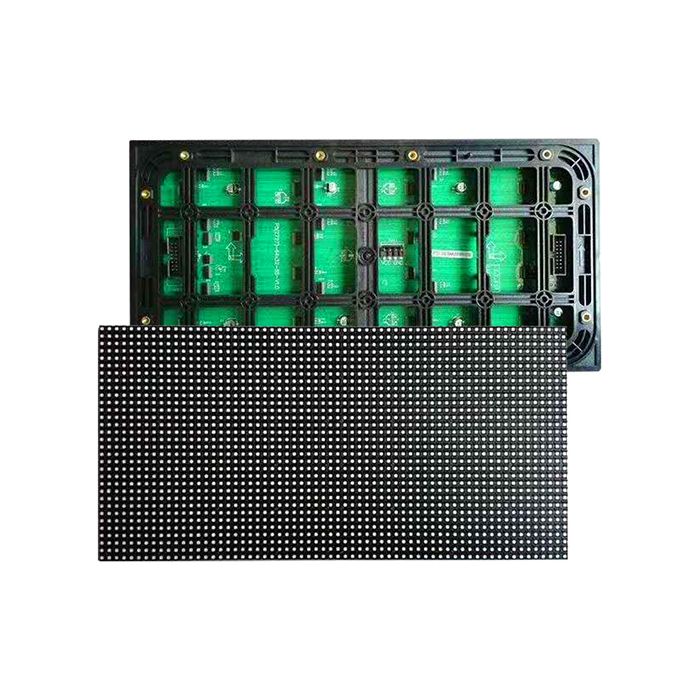

P5mm Outdoor LED Display Module
P5mm Outdoor LED Display Module
Pixel Pitch: 5 mm
LED Arrangement: SMD1921 (3-in-1)
Module Size: 320 mm × 160 mm
Resolution (H × V): 64 × 32 pixels
Brightness :~5,500 – 6,000 cd/m²
Best Viewing Distance :≈ 5 m to ≈ 50 m
Viewing Angle: ~140° H / ~140° V
Grey Scale / Colour Depth: 8-bit input, 16.7 M colours (typical)
P5mm Outdoor LED Display Module
This P5 mm outdoor LED display module offers a robust, high-visibility solution for outdoor signage, digital billboards and façade displays in Bangladesh. With a 5 mm pixel pitch, module size of 320×160 mm and high brightness of 5,500-6,000 cd/m², it ensures clear readability in daylight. Built with SMD1921 LED chips, waterproof design and designed for outdoor durability, this module is tailored to Bangladesh’s climate and outdoor advertising needs.
Key Features
-
Pixel pitch: 5 mm, optimized for outdoor viewing distances (approx. 5-50 m).
-
Module size: 320 mm × 160 mm, resolution 64 (H) × 32 (V) pixels.
-
LED type: SMD1921 (3-in-1 full colour) for uniform brightness and vivid colour.
-
High brightness: 5,500-6,000 cd/m² typical — ideal for outdoor daylight environments.
-
Wide viewing angle: ~140° H / ~140° V for good visibility from different perspectives.
-
Outdoor-rated: Protection level IP65, designed for outdoor conditions including rain, sun and humidity.
-
Long life span: Designed for 100,000 hours expected lifetime under proper usage.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
P5-Outdoor-64×32 |
|
Pixel Pitch |
5 mm |
|
LED Arrangement |
SMD1921 (3-in-1) |
|
Module Size |
320 mm × 160 mm |
|
Resolution (H × V) |
64 × 32 pixels |
|
Brightness |
~5,500 – 6,000 cd/m² |
|
Best Viewing Distance |
≈ 5 m to ≈ 50 m |
|
Viewing Angle |
~140° H / ~140° V |
|
Grey Scale / Colour Depth |
8-bit input with correction up to 16-bit; 16.7 M colours (typical) |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
AC 100-240 V, 50/60 Hz |
|
Maximum Power Consumption |
~900 W/m² |
|
Average Power Consumption |
~550 W/m² |
|
Refresh Rate |
~960-1,920 Hz |
|
Operating Temperature |
–20 °C to +60 °C |
|
Operating Humidity |
10% to 95% RH |
|
Protection Level |
IP65 |
|
Life Expectancy |
≥ 100,000 hours |
|
Pixel Failure Rate |
≤ 0.01% |
| Call for Price | No |
|---|---|
| Brand | Varito |
