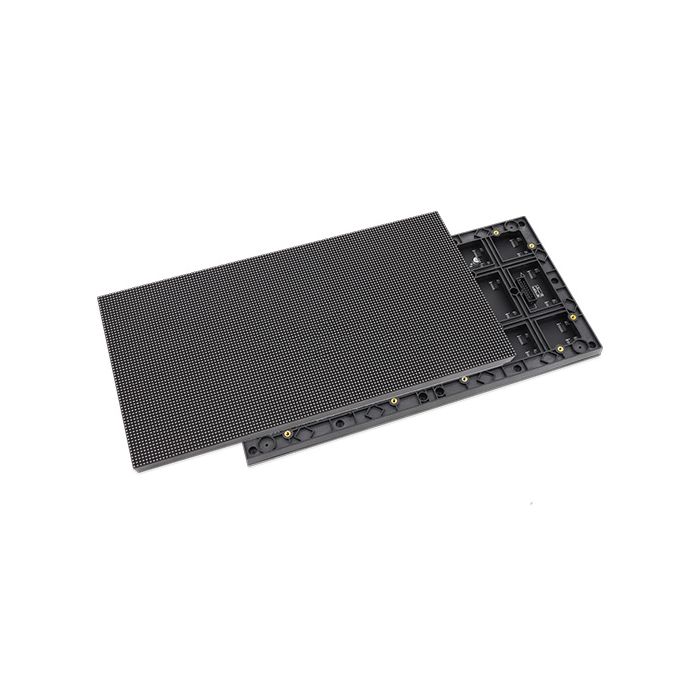

P5 Indoor Full-Color LED Module
P5 mm Indoor Full-Color LED Module
Pixel Pitch: 5.0 mm
LED Type: SMD 2121 (full-color)
Module Size: 320 × 160 mm
Module Resolution: 64 (H) × 32 (V) pixels
Driving Mode / Scan: Dynamic constant-current, 1/16 scan
Brightness (White): Approx. 800-1000 nits
Viewing Angle: ~140° H / ~140° V (typical)
P5 mm Indoor Full-Color LED Module
The P5 mm indoor full-colour LED module features a 5 mm pixel pitch with black-mask SMD2121 LEDs. Designed in a 320×160 mm (64×32 pixel) panel, this module delivers excellent uniformity, high refresh rate and vivid visuals, ideal for indoor video walls, retail signage, conference rooms and more.
Key Features
-
5 mm pixel pitch (P5) for balanced cost vs quality in indoor screens.
-
SMD2121 LED package with pure black mask for high contrast and deep blacks.
-
Standard module size 320×160 mm (resolution 64×32) for flexible cabinet assembly and seamless splicing.
-
Driving method: constant-current, 1/16 scan for stable display and efficient power use.
-
Wide viewing angle, high refresh rate (≈ 480-960 Hz or more) and full-colour (16.7M) output for smooth motion visuals.
-
Built for indoor applications with CE/RoHS certification, 2-year warranty and 72-hour aging test for reliability.
Specifications
|
Parameter |
Specification |
|
Pixel Pitch |
5.0 mm |
|
LED Type & Package |
SMD 2121 (full-colour) |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
64 (H) × 32 (V) pixels |
|
Driving Mode / Scan |
Dynamic constant-current, 1/16 scan |
|
Brightness (White) |
Approx. 800-1000 nits |
|
Viewing Angle |
~140° H / ~140° V (typical) |
|
Best Viewing Distance |
Approx. 5 m – 50 m |
|
Average Power Consumption |
Approx. 300 W/m² |
|
Maximum Power Consumption |
Approx. 700 W/m² |
|
Operating Temperature |
-20 °C to +60 °C |
|
Operating Humidity |
10% – 95% RH |
|
Lifetime |
≥ 100,000 hours |
|
Certifications |
CE, RoHS |
| Call for Price | No |
|---|---|
| Brand | Varito |
