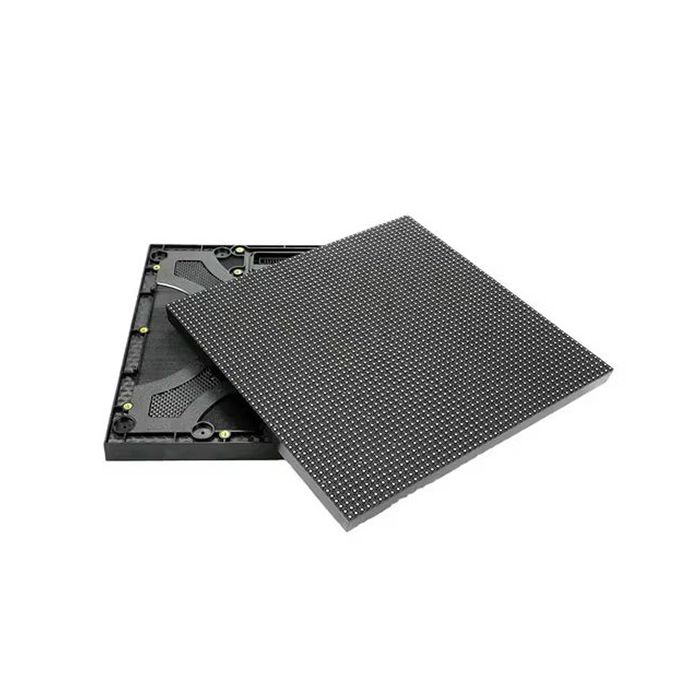

P4 Outdoor SMD LED Module
P4 Outdoor SMD LED Module
Pixel Pitch: 4.0 mm
LED Type: SMD 2525
Module Size: 256 × 128 mm (64×32 pixels)
Brightness (White): ~5,500-6,000 cd/m²
Viewing Angle: Approx. 140° H / 140° V
Best Viewing Distance: From ~4 m onwards
P4 Outdoor SMD LED Module
This P4 SMD Outdoor LED Module offers a 4 mm pixel pitch for clear outdoor visuals, with high brightness, weather-proof construction and flexible module size for large outdoor digital signage, building facades and stadium displays.
Key Features
-
4.0 mm pixel pitch for sharp outdoor display quality. SMD-2525 LED package and constant-current driving for uniform brightness and long life.
-
Module size of 256 × 128 mm (64 × 32 pixels) or 320 × 160 mm (80 × 40 pixels) for flexible installation.
-
High brightness of ~5,500-6,000 cd/m² (or higher) for excellent visibility in daylight.
-
Wide viewing angle (~140° horizontal/vertical) so content is visible from many angles. Waterproof outdoor module with IP65 front protection for outdoor durability.
Technical Specifications:
|
Parameter |
Specification |
|
Pixel Pitch |
4.0 mm |
|
LED Type / Package |
SMD 2525 |
|
Module Size |
256 × 128 mm (64×32 pixels) or 320 × 160 mm (80×40) |
|
Brightness (White) |
~5,500-6,000 cd/m² |
|
Viewing Angle |
Approx. 140° H / 140° V |
|
Best Viewing Distance |
From ~4 m onwards |
|
Driving Method / Scan |
Dynamic constant-current, e.g., 1/16 scan |
|
Max Power Consumption |
~750 W/m² |
|
Average Power Consumption |
~250-350 W/m² |
|
Protection Rating |
IP65 (front) |
|
Operating Temperature |
-20 °C to +60 °C |
|
Lifetime |
≥ 100,000 hours |
| Call for Price | No |
|---|---|
| Brand | Varito |
