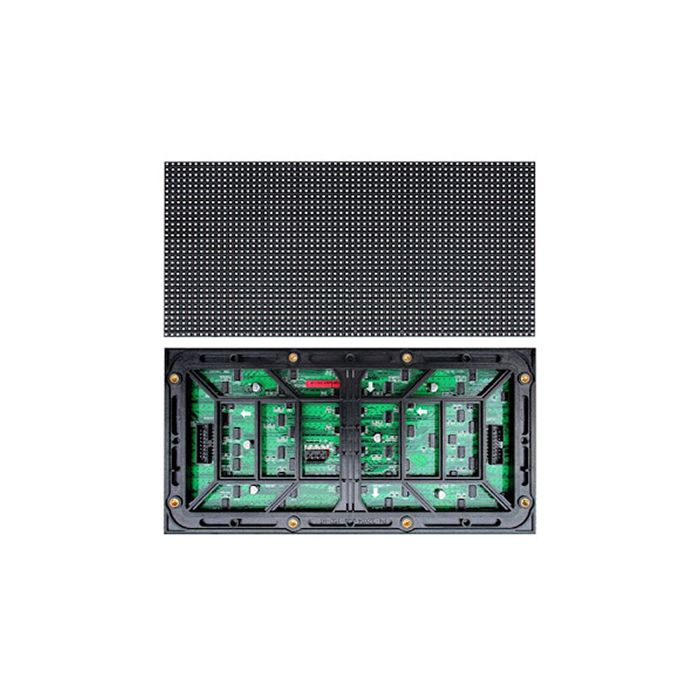

P4 Outdoor LED Module 256×128mm
P4 Outdoor LED Module 256×128mm
Pixel Pitch: 4.0 mm
LED Type: SMD 2525
Module Size: 256 mm × 128 mm
Module Resolution: 64 (H) × 32 (V) pixels
Brightness (White): ~5,500-6,000 cd/m²
Viewing Angle (H/V): ~140° / ~140°
P4 Outdoor LED Module 256×128mm
The P4 Outdoor LED Module (256×128 mm) delivers high-definition outdoor visuals thanks to its 4 mm pixel pitch, durable SMD2525 LEDs and weather-proof IP65 design, ideal for outdoor signage, building facades and digital billboards.
Key Features
-
4 mm pixel pitch (P4) for crisp image quality in outdoor environments.
-
SMD2525 LED package providing uniform brightness and strong contrast.
-
Module size of 256×128 mm with resolution of 64×32 pixels for flexible installation and modular splicing.
-
High brightness level of ~5,500–6,000 cd/m² and wide viewing angle (~140° horizontal/vertical) for daylight visibility.
-
1/16 (or specified) scan constant-current driving and 72-hour aging test for reliability.
-
Outdoor rated protection – IP65 front seal for water and dust protection.
-
Designed for the best viewing distance from ~4 m upwards.
Technical Specifications:
|
Specification |
Value |
|
Pixel Pitch |
4.0 mm |
|
LED Type & Package |
SMD 2525 |
|
Module Size |
256 mm × 128 mm |
|
Module Resolution |
64 (H) × 32 (V) pixels |
|
Brightness (White) |
~5,500-6,000 cd/m² |
|
Viewing Angle (H/V) |
~140° / ~140° |
|
Best Viewing Distance |
From ~4 m |
|
Driving/Scan Mode |
Constant-current, 1/16 scan (or similar) |
|
Max Power Consumption |
~750 W/m² |
|
Average Power Consumption |
~350 W/m² |
|
Operating Temperature |
-20 °C to +60 °C |
|
Protection Level |
IP65 (front) |
|
Lifetime |
≥ 100,000 hours |
