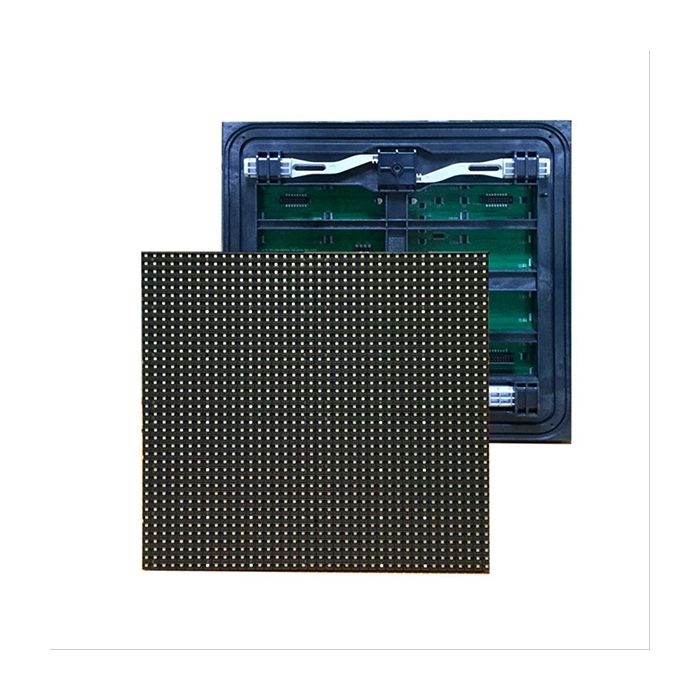

P4.81 Outdoor LED Display Module
P4.81 Outdoor LED Display Module
Pixel Pitch: 4.81 mm
LED Arrangement: SMD1921 (3-in-1 full-color)
Module Size: 250 mm × 250 mm
Module Resolution (H × V): 52 × 52 pixels
Brightness: 5,500 – 6,000 cd/m² (typical)
Best Viewing Distance: ≈ 4.8 m to ≈ 48 m
Viewing Angle; ~140° H / ~140° V
Grey Scale / Colour Depth, 8-bit input, 16.7 M colours
P4.81 Outdoor LED Display Module
This P4.81 mm outdoor LED display module is a high-performance solution for outdoor signage, digital billboards, façade displays and rental LED walls in Bangladesh. With a pixel pitch of 4.81 mm, a module size of 250×250 mm and high brightness of 5,500-6,000 cd/m², it ensures clear readability under daylight. Featuring SMD1921 LEDs, IP65 rated protection and long-life design, it is built to withstand Bangladesh’s outdoor conditions including intense sunlight, humidity and rain.
Key Features
-
Pixel pitch: 4.81 mm, optimized for outdoor viewing distances (approx. 4.8 m to 48 m).
-
Module size: 250 mm × 250 mm, resolution 52 (H) × 52 (V) pixels.
-
LED type: SMD1921 (3-in-1 full colour) for uniform brightness and colour accuracy.
-
High brightness: 5,500-6,000 cd/m², suitable for outdoor daylight conditions.
-
Wide viewing angles: ~140° horizontal and vertical for strong visibility from different angles.
-
Robust outdoor rating: Protection level IP65, designed for outdoor durability in harsh environments.
-
Long service life: Operating life up to 100,000 hours under standard conditions.
-
Low maintenance & efficient installation, standard module size supports easier cabinet-design and replacement.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
P4.81-Outdoor-52×52 |
|
Pixel Pitch |
4.81 mm |
|
LED Arrangement |
SMD1921 (3-in-1 full-colour) |
|
Module Size |
250 mm × 250 mm |
|
Module Resolution (H × V) |
52 × 52 pixels |
|
Brightness |
5,500 – 6,000 cd/m² (typical) |
|
Best Viewing Distance |
≈ 4.8 m to ≈ 48 m |
|
Viewing Angle |
~140° H / ~140° V |
|
Grey Scale / Colour Depth |
8-bit input, corrected to 16-bit; 16.7 M colours |
|
Brightness Adjustment |
0-100% (100 Levels) |
|
Power Supply |
AC 100-240 V, 50/60 Hz switch-able |
|
Max Power Consumption |
~700 W/m² |
|
Average Power Consumption |
~300 W/m² |
|
Refresh Rate |
960-1,920 Hz |
|
Operating Temperature |
–20 °C to +60 °C |
|
Operating Humidity |
10% to 95% RH |
|
Protection Level |
IP65 (outdoor rating) |
|
Life Expectancy |
≥ 100,000 hours |
|
Pixel Failure Rate |
≤ 0.01% |
| Call for Price | No |
|---|---|
| Brand | Varito |
