P3 Outdoor LED Display Module

P3 Outdoor LED Display Module

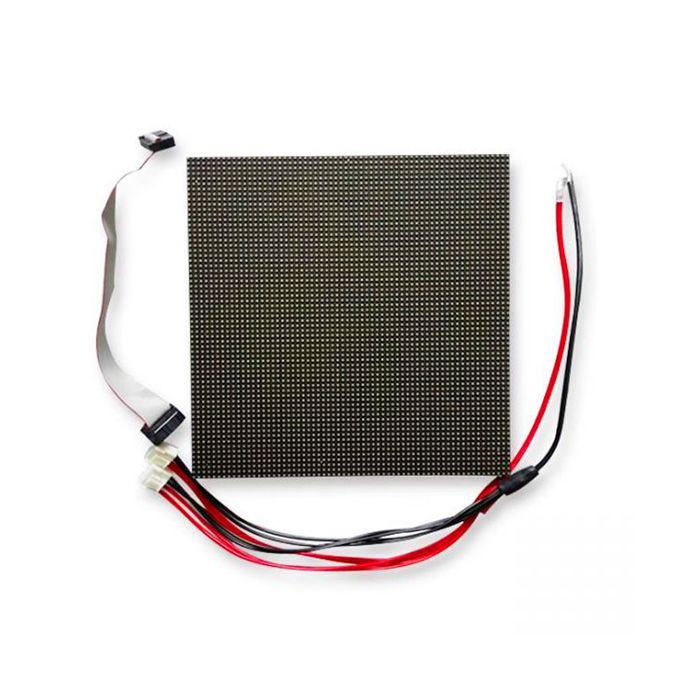

This outdoor LED display module offers a compact 192×192 mm format featuring a 3 mm pixel pitch for crisp visuals even at moderate viewing distances (3 m–30 m). Built with high-quality SMD1415 LEDs, the module ensures uniform brightness and high grey level performance. The robust design includes waterproofing for true outdoor use (IP65), and the high luminance (5,500–6,000 cd/m²) makes it suitable for daylight applications such as billboards, digital signage, outdoor events, and large screen installations.

Advanced control features include a refresh rate up to 960–1920 Hz, 16bit input colour depth, and support for various input formats (Composite Video, S-Video, DVI, HDMI, SDI). Powered via AC100-240 V and operated in ambient conditions from –20 °C to +60 °C, this module is built for reliability with a life expectancy of 100,000 hours. With pre-included data & power cables, waterproof ring, and full support from the manufacturer, this product offers a turnkey outdoor display module solution.

Features:

• Pixel pitch: 3 mm, ideal for clear outdoor visuals.


• Module size: 192 × 192 mm, containing 64 (H) × 64 (V) pixels.


• SMD1415 LED type – uniform brightness, high grey level.


• High brightness: 5,500–6,000 cd/m² for daylight readability.


• Wide viewing angle: 140° horizontal and vertical.


• Robust outdoor protection: IP65 rating.


• Wide operating temperature range: –20 °C to +60 °C.


• Power supply: AC 100-240 V, 50-60 Hz; average consumption ~320 W/m².


• Supports long-distance control: Ethernet up to 100 m, optical fiber up to 5 km.
