P3 LED Display (Indoor)

P3 LED Display Module Specification

Key Features of P3 LED Displays

P3 LED Display Price in Bangladesh

Conclusion

Skip to the beginning of the images gallery

$9,500.00

In stock

SKU

P3LEDD

Main Specification

Pixel Pitch: 3mm
Module Size: 320*160*15mm
Resolution: 128*64dps
Horizontal View Angle: 160 Deg.
Verticle View Angle: 140 Deg.
Brightness: ≥600cd/m2 nits
Contrast Ratio: ≤5000:1
Pixel Density: 160000pix/㎡
Refresh Rate: ≥1920-3840Hz
View Distance: ≥6+m
Control Distance: Cable:100m, Optical Fiber:10KM

Details

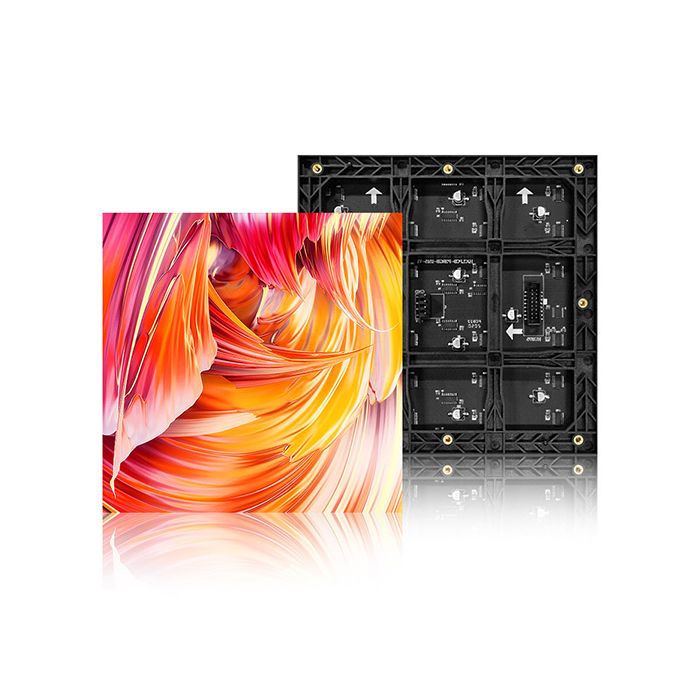

A P3 LED Display refers to a type of LED Screen where the pixel pitch, the distance between the center of two adjacent pixels, is 3 millimeters. This small pixel pitch ensures a high pixel density, resulting in sharp, clear, and vibrant images even at close viewing distances. P3 LED Screen is part of the larger family of LED Display Board, which utilize light-emitting diodes to create bright, colorful displays suitable for various environments. LED Display Price in Bangladesh start from BDT 5,000 - BDT 30,000 but the price vary on product quality and quantity.

LED Lamp Specification
Color	Package	Intensity		Viewing angle	Wavelength	Testing condition
Red	3 IN 1 SMD	70-100mcd		160°/140°	620-625nm	25℃,20mA
Green		120-200mcd		160°/140°	515-530nm	25℃,10mA
Blue		30-40mcd		160°/140°	465-475nm	25℃,5mA
Module Parameter
Pixel Pitch			P3mm
Pixel Strcture			3 IN 1 SMD
Density			111111pixels/㎡(real pixel)
Module Resolution			64pixel(L) * 64pixel(H)
Module Dimension			192mm(L) * 192mm (H) * 15mm(D)
Cabinet Dimension			192*192mm
Cabinet Weight			.45 (kg)

Single Point Brightness, Chroma Correction: Support
White Balance Brightness			≥600 cd/㎡
Viewing Angle			140°(Horizontal)； 120°(Vertical)
Best Viewing Distance			≥6+m
Color Tempareture			2000K-12500K (adjustable)
Display Color			68.7 Billion Color
Brightness Uniformity			≥97%
Contrast Ratio			≥5000:1
Process Performance
Single Processing bits			16bits*3
Gray Scale			12-16Bit
Control Distance			Cable:100m, Optical Fiber:10KM
Drive Mode			Constant current source driver
Frame rate			≥60Hz
Refress rate			1920-3840Hz
Way to control			Synchronize
Brightness adjustment range			0-100 Stepless
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
User Paramiter
Working Temperature			-20～+50 ºC
Stored Temperature			-30～+60 ºC
Working Humidity			10%～80% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Working Time			≥72 hours
IP Protection Grade			IP20
Out of Control Pixel Rate			≤0.01%

High Resolution and Clarity: P3 LED displays offer exceptional resolution due to their high pixel density. This makes them ideal for settings where image clarity is paramount, such as control rooms, broadcast studios, and conference halls. The fine pixel pitch ensures that even the smallest details are rendered with precision.
Superior Brightness and Contrast: LED technology is known for its superior brightness and contrast ratios. P3 LED displays can produce vibrant colors and deep blacks, providing a dynamic range that enhances the viewing experience. This is particularly useful in environments with varying lighting conditions.
Wide Viewing Angles: P3 LED displays maintain consistent image quality across wide viewing angles. This means that viewers can enjoy clear and bright images from different positions without experiencing color distortion or loss of brightness.
Energy Efficiency: LED technology is inherently energy-efficient. P3 LED displays consume less power compared to traditional display technologies, making them an environmentally friendly choice. Their lower energy consumption translates to reduced operating costs over time.
Durability and Longevity: P3 LED displays are built to last. They are resistant to environmental factors such as dust, moisture, and temperature fluctuations. This durability ensures a longer lifespan, making them a cost-effective investment for long-term use.

Benefits of P3 LED Displays

Enhanced Visual Experience: The high resolution and superior image quality of P3 LED display provide an enhanced visual experience. Whether used in advertising, entertainment, or information dissemination, these displays captivate audiences with their stunning visuals.
Versatility in Applications: P3 LED displays are incredibly versatile. They can be used in a wide range of applications, including digital signage, retail displays, event backdrops, and corporate presentations. Their adaptability makes them a popular choice across various industries.
Easy Maintenance: Maintenance of P3 LED display is relatively straightforward. Many models feature modular designs, allowing for easy replacement of individual panels or components. This reduces downtime and maintenance costs.
Customization Options: P3 LED display can be customized to fit specific needs. Whether it's creating unique shapes, curved screens, or large-scale installations, the flexibility of LED technology allows for creative and impactful designs.
Real-Time Content Updates: With the integration of advanced control systems, P3 LED display can support real-time content updates. This is particularly beneficial for applications such as live events, news broadcasting, and dynamic advertising.

Small Indoor Displays (Up to 100 inches): For small indoor P3 LED displays, prices can range from BDT 5,000 to BDT 7,000. These screens are commonly used in corporate settings, retail environments, and small event venues.
Medium-sized Displays (100 to 300 inches): Medium-sized P3 LED displays are suitable for larger indoor spaces and some outdoor applications. Prices for these displays typically range from BDT 8,000 to BDT 10,000.
Large Outdoor Displays (Above 300 inches): Large outdoor P3 LED displays, which are often used for advertising and public information displays, can range from BDT 10,000 to BDT 12,000 or more, depending on the specific requirements and features.

Where to Buy P3 LED Displays in Bangladesh

Authorized Dealers: Purchasing from authorized dealers ensures that you get genuine products with warranties and after-sales support. Some well-known dealers in Bangladesh include:

GCTL Technologies Ltd.
VARITO
GCTL LED

Applications of P3 LED Displays

Advertising and Digital Signage: P3 LED displays are widely used in advertising and digital signage due to their ability to attract and engage viewers. Their high resolution and vibrant colors make advertisements more appealing and effective.
Corporate and Conference Rooms: In corporate environments, P3 LED displays are used for presentations, video conferences, and digital whiteboards. Their clarity and reliability enhance communication and collaboration.
Entertainment and Events: From concerts to sports events, P3 LED displays provide an immersive visual experience. They are often used for stage backdrops, scoreboards, and live video feeds, ensuring that every spectator has a great view.
Control Rooms and Monitoring Centers: In control rooms and monitoring centers, the high resolution of P3 LED display is crucial for detailed data visualization. They help operators monitor and manage complex systems efficiently.
Retail and Hospitality: Retailers use P3 LED display to create engaging in-store experiences, showcase products, and communicate with customers. In the hospitality industry, these displays are used for wayfinding, digital menus, and entertainment.

Electricity Parameter

Operating Voltage

Power Requirements

AC 220 x (1±10%)V, 50x(1±10%)Hz

Max. Power Consume

Average Power Consume

The P3 LED display represent the pinnacle of modern display technology, offering unparalleled resolution, brightness, and versatility. Their applications span across various industries, providing enhanced visual experiences and efficient communication solutions. As technology continues to advance, P3 LED Screen are set to become even more integral to our digital landscape.
