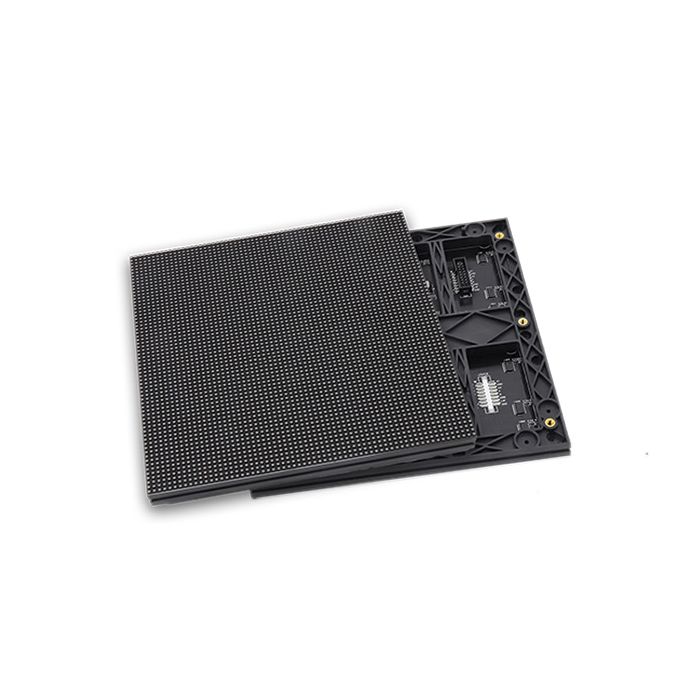

P3 GOB LED Display Module
P3 GOB LED Display Module
Pixel Pitch: 2.5 mm
LED Type: SMD 3-in-1
Module Size: 320 × 160 mm
Module Resolution: 128 × 64 dots
Pixel Density: 160,000 dots / m²
Brightness: 800 – 1000 cd/m²
Refresh Rate: ≥ 3840 Hz
Best Viewing Distance: 2.5 – 35 m
P3 GOB LED Display Module
The P3 GOB LED Module from GCTL VARITO is a premium-grade indoor LED display solution featuring a 3.0 mm pixel pitch, SMD 2121 3-in-1 LEDs, and GOB (Glue-on-Board) protection technology. It delivers exceptional brightness, smooth motion, and impact-resistant durability. With a 3840 Hz refresh rate and 160° wide viewing angle, this module ensures ultra-clear visuals for conference rooms, control centers, retail spaces and digital signage applications in Bangladesh.
Estimated Price in Bangladesh: ৳ 8,500 – ৳ 10,000 per module (approximate based on import stock and configuration)
Key Features
-
3.0 mm Pixel Pitch: Delivers sharp and vivid image quality for indoor HD applications.
-
GOB Encapsulation Technology: Protects LEDs from water, dust and physical damage for long-term stability.
-
SMD 3-in-1 LED: Delivers vibrant color accuracy and high contrast performance.
-
High Refresh Rate (≥ 3840 Hz): Smooth, flicker-free playback suitable for live broadcast and camera use.
-
Wide Viewing Angle (160°): Clear and consistent images from all directions.
-
Front / Rear Maintenance: Flexible installation and easy servicing.
-
Low Power, High Brightness: Optimized energy efficiency with 800–1000 cd/m² output.
-
Ideal for Indoor Use: Best suited for malls, studios, exhibitions, control rooms, and corporate displays.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
CL-I-P3-192-192 |
|
Pixel Pitch |
3.0 mm |
|
LED Type |
SMD 2121 (1R1G1B) |
|
Module Size |
192 × 192 mm |
|
Resolution per Module |
64 × 64 dots |
|
Pixel Density |
111,111 dots / m² |
|
Brightness |
800 – 1000 cd/m² |
|
Refresh Rate |
≥ 3840 Hz |
|
Viewing Angle (H/V) |
160° / 160° |
|
Best Viewing Distance |
3 – 40 m |
|
Scan Mode |
1/32 Scan |
|
Grey Scale |
14 – 16 bit |
|
Average Power Consumption |
250 W/m² (approx.) |
|
Max Power Consumption |
580 W/m² (approx.) |
|
Maintenance |
Front / Rear Service |
|
Control System |
DVI / HDMI / LAN / Remote Supported |
|
Operating Temperature |
–20 °C ~ +60 °C |
|
Humidity Range |
10 % – 90 % RH |
|
Protection Rating |
IP30 (Indoor Use) |
|
Lifespan |
≥ 100,000 hours |
|
Warranty |
2 Years (Provided by GCTL VARITO Bangladesh) |
| Call for Price | No |
|---|---|
| Brand | Varito |
