P3 Flexible LED Display Module
P3 Flexible LED Display Module
Pixel Pitch: 3.0 mm
Module Sizes: 240 × 120 mm
LED Type / Package: SMD 3-in-1
Brightness (White): Approx. 900 cd/m²
Refresh Rate: 1,920 Hz (typical)
Scan Mode: 1/20 scan
P3 Flexible LED Display Module

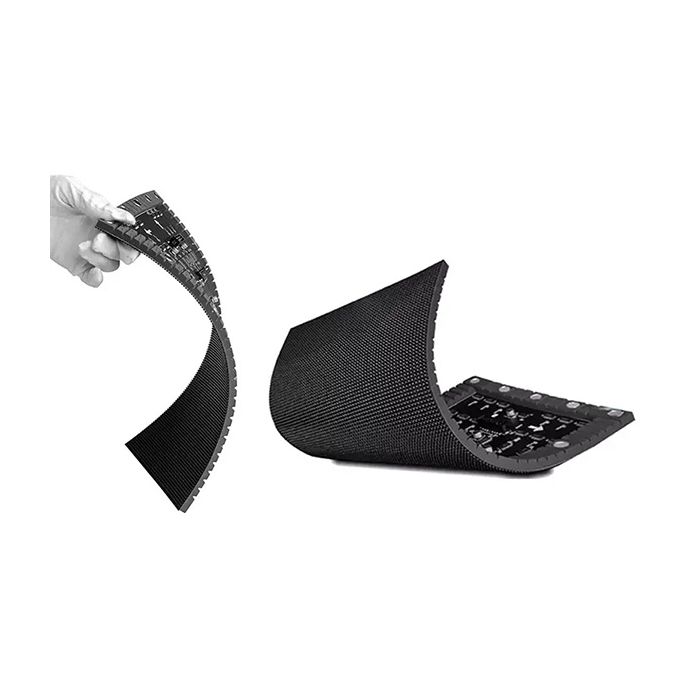

The P3 mm Flexible LED Module offers a 3.0 mm pixel pitch combined with a soft-flexible substrate, enabling high-definition indoor displays on curved, cylindrical or irregular surfaces. With module sizes of 240×120 mm or 320×160 mm and excellent visual performance, it is ideal for retail façades, exhibitions, architecture-integrated video walls and creative installation scenarios.
Key Features:
-
Pixel pitch of 3.0 mm delivers clear, vivid visuals suitable for indoor viewing environments.
-
Soft flexible module construction allows bending and shaping for concave, convex or free-form installations.
-
Two module size options: 240×120 mm (80×40 dots) and 320×160 mm (104×52 dots) for versatile layout design.
-
High contrast and visual uniformity in creative LED screen applications.
-
Certifications: CE, RoHS, FCC ensuring compliance for professional indoor display solutions.
-
Lightweight and slim module (~8.6 mm thickness typical) facilitating installation on irregular or curved surfaces.
Technical Specification:
|
Parameter |
Specification |
|
Pixel Pitch |
|
|
Module Sizes |
|
|
LED Type / Package |
SMD 3-in-1 (SMD2121 or equivalent) |
|
Brightness (White) |
Approx. 900 cd/m² for 240×120 variant; 650-750 cd/m² for 320×160 variant |
|
Refresh Rate |
1,920 Hz (typical) |
|
Scan Mode |
1/20 scan (for 240×120 version) |
|
Module Thickness |
~8.6 mm |
|
Curvature / Minimum Bend Radius |
Curvature radius ≥135° for 320×160 version |
|
Certifications |
CE, RoHS, FCC approved |
|
Typical Lifetime |
≥100,000 hours |
| Call for Price | No |
|---|---|
| Brand | Varito |
