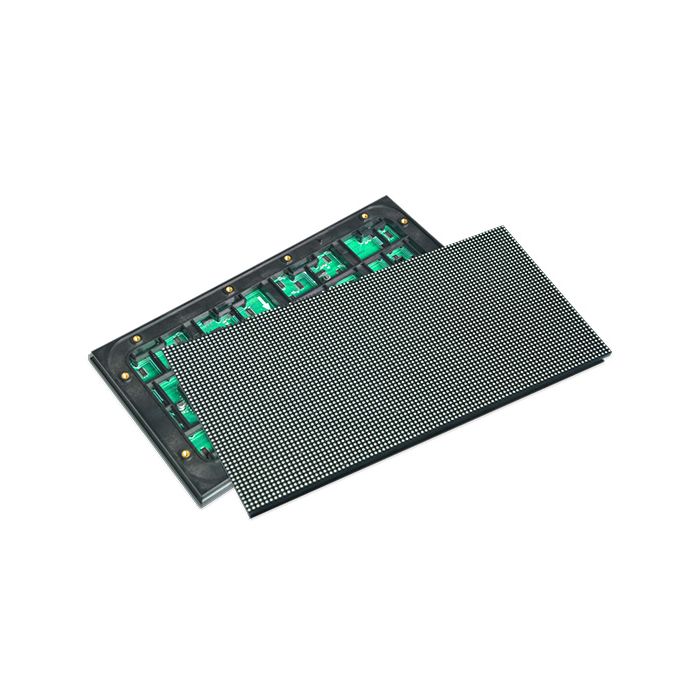

P3.076 Outdoor LED Display Module
P3.076 Outdoor LED Display Module
Pixel Pitch: 3.076 mm
LED Arrangement: SMD1415 (SMD 3-in-1)
Module Size: 320 mm × 160 mm
Resolution (H × V): 104 × 52 pixels
Brightness: 5,500-6,000 cd/m² (typical)
Viewing Distance: ~3 m to ~30 m
Viewing Angle: 140° H / 140° V (up to 160° according to some specs)
Grey Scale / Color Depth: 8-bit input, correction to 16-bit; 16.7M colors
P3.076 Outdoor LED Display Module
The P3.076 outdoor LED display module offers a robust and high-definition solution for outdoor fixed installation screens. With a 3.076 mm pixel pitch and standard module dimension of 320 × 160 mm, it is optimized for visibility both from moderate to longer distances (roughly 3 m to 30 m). The module uses high quality SMD1415 LED chips and features a full-colour 104×52 pixel matrix. Its high brightness (≈5,500–6,000 cd/m²) and wide viewing angle make it suitable for outdoor signage, billboards, façade screens, sports venues and digital advertising in bright sunlight. The rugged build includes IP65 waterproof protection and an operating temperature range from –20 °C to +60 °C, delivering durability in varied weather conditions. With standard dimensions and mounting, it integrates well into cabinets and structures built for 320×160 mm modules, simplifying installation and maintenance.
Features:
-
Pixel pitch: 3.076 mm, ideal for clear outdoor visuals at mid-to-long distances.
-
Module size: 320 × 160 mm, resolution 104 (H) × 52 (V) pixels.
-
LED arrangement: SMD1415 (SMD 3-in-1) high quality for uniform brightness and higher contrast.
-
Brightness: approx. 5,500–6,000 cd/m² (daylight readability outdoors).
-
Viewing angle very wide: ~140° horizontal and vertical (some specs say up to 160°).
-
Waterproof & outdoor-proof: protection rating IP65.
-
Operating temperature ranges from –20 °C to +60 °C.
-
Life expectancy: ≥100,000 hours.
Technical Specification:
|
Parameter |
Specification |
|
Model |
P3.076-O-104×52 |
|
Pixel Pitch |
3.076 mm |
|
LED Arrangement |
SMD1415 (SMD 3-in-1) |
|
Module Size |
320 mm × 160 mm |
|
Resolution (H × V) |
104 × 52 pixels |
|
Brightness |
5,500-6,000 cd/m² (typical) |
|
Viewing Distance |
~3 m to ~30 m |
|
Viewing Angle |
140° H / 140° V (up to 160° according to some specs) |
|
Grey Scale / Colour Depth |
8-bit input, correction to 16-bit; 16.7M colours |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
AC 100-240 V, 50/60Hz |
|
Max Power Consumption |
~940 W/m² (some sources) |
|
Average Power Consumption |
~450 W/m² (some sources) |
|
Refresh Rate |
960–1920 Hz (some specs higher) |
|
Operating Temperature |
–20 °C to +60 °C |
|
Operating Humidity |
10% to 95% RH |
|
Protection Level |
IP65 |
|
Life Expectancy |
≥100,000 hours |
|
Pixel Failure Rate |
≤0.01% |
