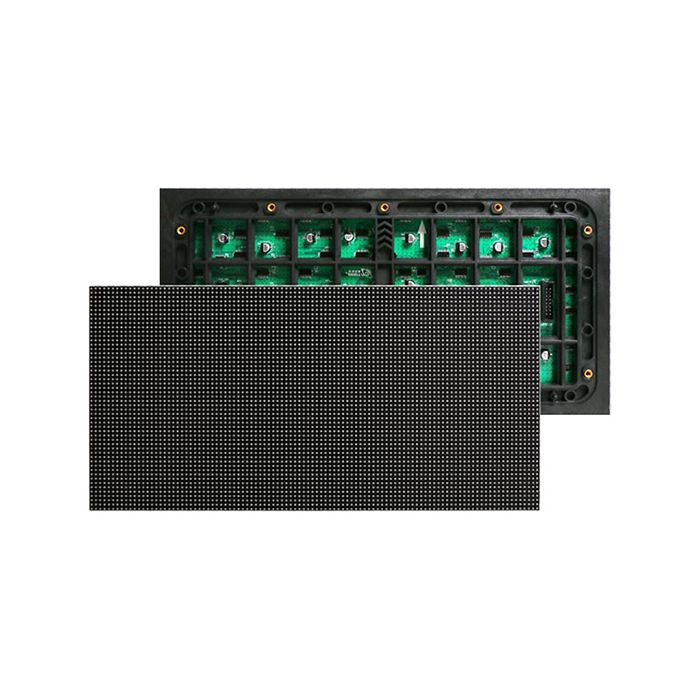

P3.076 Indoor LED Display Module
P3.076 mm Indoor LED Display Module
Pixel Pitch: 3.076 mm
Module Size: 320 × 160 mm
Module Resolution: 104 × 52 pixels
LED Type: SMD 2121 (Black LED)
Pixel Configuration: RGB 3-in-1
Driving Method: Current, 1/26 scan
P3.076 Indoor LED Display Module
The P3.076 mm Indoor LED Display Module offers a fine pixel pitch of 3.076 mm, delivering high-definition indoor visuals with excellent colour uniformity and high refresh rate. With a compact 320 × 160 mm module size, it’s designed for flexible installation in video walls, retail displays, conference rooms and indoor signage.
Key Features
-
3.076 mm pixel pitch (P3.076) for crisp indoor imagery.
-
SMD 2121 black-LED package for uniform colour and high contrast.
-
Standard module size: 320 × 160 mm; resolution 104 × 52 pixels.
-
Driving method: constant current, 1/26 scan for stable image display.
-
High refresh rate (≥ 1920 Hz) and brightness of 800–1000 cd/m² for clear visuals in indoor settings.
-
Wide viewing angle (approx. 140° H / 140° V), ideal for audience visibility from many angles.
-
Long lifetime (≥ 100,000 hours) and one-year warranty.
Technical Specifications:
|
Parameter |
Value |
|
Pixel Pitch |
3.076 mm |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
104 × 52 pixels |
|
LED Type |
SMD 2121 (Black LED) |
|
Pixel Configuration |
RGB 3-in-1 |
|
Driving Method/Scan |
Constant Current, 1/26 scan |
|
Brightness (White) |
800–1000 cd/m² |
|
Refresh Rate |
≥ 1920 Hz |
|
Contrast Ratio |
≥ 4000 : 1 |
|
Viewing Angle |
~140° horizontal / ~140° vertical |
|
Working Voltage |
DC 5 V |
|
Module Max Power |
~55 W per module (320×160) |
|
Avg. Power Consumption |
≤ 300 W/m² (Max ~700 W/m²) |
|
Best Viewing Distance |
Approximately 3 m – 30 m |
|
Lifetime |
≥ 100,000 hours |
|
Operating Humidity |
10% – 90% RH |
| Call for Price | No |
|---|---|
| Brand | Varito |
