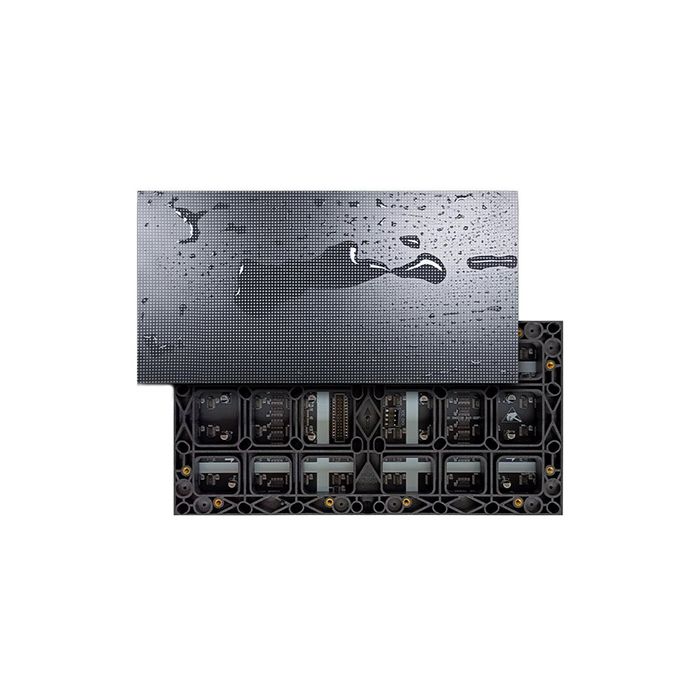

P2 GOB LED Display Module
P2 GOB LED Display Module
Pixel Pitch: 2.0 mm
LED Type: SMD 3-in-1
Module Size: 320 × 160 mm
Resolution per Module: 160 × 80 dots
Pixel Density: 250,000 dots / m²
Brightness: 800 – 1000 cd/m²
Refresh Rate: ≥ 3840 Hz
Best Viewing Distance: 2 – 30 m
P2 GOB LED Display Module
The P2 GOB LED Module delivers crisp, high-definition images with a 2.0 mm pixel pitch, ideal for indoor fixed installations. Built with advanced SMD1515 3-in-1 LEDs and GOB (Glue on Board) encapsulation, it offers superb protection against moisture, dust, and physical impact. With a 3840 Hz refresh rate, wide viewing angles, and superior color uniformity, the P2 GOB LED Module is perfect for conference rooms, studios, control centers, museums and retail environments requiring brilliant, long-lasting visual performance.
Key Features
-
2.0 mm Pixel Pitch: Delivers vivid and smooth images for short-distance viewing.
-
GOB Encapsulation: Protects LED surface from impact, dust, and moisture for longer lifespan.
-
High Refresh Rate (3840 Hz+): Ensures flicker-free video playback and motion clarity.
-
SMD 3-in-1 LED Technology: Rich color reproduction and seamless uniformity.
-
Wide Viewing Angle (160°): Perfect visibility from any direction.
-
Front / Rear Maintenance: Flexible installation and easy servicing options.
-
Low Power Consumption: Energy-efficient operation with stable brightness.
-
Ideal for Indoor Applications: Boardrooms, exhibition halls, control rooms, and retail stores.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
CL-I-P2-320-160 |
|
Pixel Pitch |
2.0 mm |
|
LED Type |
SMD 3-in-1 (1R1G1B) |
|
Module Size |
320 × 160 mm |
|
Resolution per Module |
160 × 80 dots |
|
Pixel Density |
250,000 dots / m² |
|
Brightness |
800 – 1000 cd/m² |
|
Refresh Rate |
≥ 3840 Hz |
|
Viewing Angle (H/V) |
160° / 160° |
|
Best Viewing Distance |
2 – 30 m |
|
Scan Mode |
1/32 Scan |
|
Grey Scale |
14 – 16 bit |
|
Average Power Consumption |
≈ 250 W/m² |
|
Max Power Consumption |
≈ 580 W/m² |
|
Maintenance |
Front / Rear Service |
|
Control System |
DVI, HDMI, LAN, Remote Supported |
|
Operating Temp |
–20 °C ~ +60 °C |
|
Humidity |
10 % – 90 % RH |
|
Protection Rating |
IP30 (Indoor Use) |
|
Lifetime |
≥ 100,000 hours |
|
Warranty |
2 Years |
| Call for Price | No |
|---|---|
| Brand | Varito |
