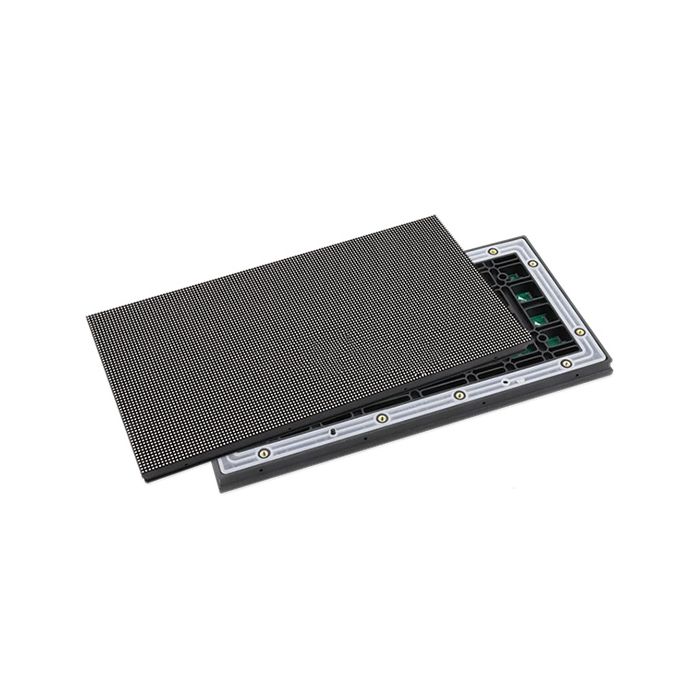

P2.5 Outdoor Full-Color LED Module
P2.5 Outdoor Full-Color LED Module
Pixel Pitch: 2.5 mm
LED Type: SMD1415 (1R1G1B)
Module Size: 320 × 160 mm
Module Resolution: 128 (H) × 64 (V) pixels
Brightness (White): 5,500–6,000 cd/m²
Viewing Angle: 140° H / 140° V
Best Viewing Distance: Approx. 2.5 m – 25 m
P2.5 Outdoor Full-Color LED Module
The P2.5 mm Outdoor LED Display Module delivers ultra-fine resolution for outdoor applications, featuring high brightness, deep contrast and weather-proof design. With a standard 320 × 160 mm panel, it’s ideal for digital signage, outdoor advertising, stadium screens and high-definition outdoor video walls.
Key Features
-
2.5 mm pixel pitch for sharp outdoor visuals even at moderate viewing distances.
-
High-brightness SMD LED module (> 5,500 cd/m²) built for strong daylight visibility.
-
Standard module size of 320 × 160 mm (128 × 64 pixels) for easy assembly, splicing and maintenance.
-
Weather-proof and robust construction (IP65) suitable for outdoor environments.
-
Constant-current driving mode with high refresh rate (480-960 Hz+) for flicker-free capture on camera.
-
High contrast display with black mask for deeper blacks and vibrant colours.
Technical Specifications:
|
Parameter |
Specification |
|
Pixel Pitch |
2.5 mm |
|
LED Type |
SMD1415 (1R1G1B) |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
128 (H) × 64 (V) pixels |
|
Brightness (White) |
5,500–6,000 cd/m² |
|
Viewing Angle |
140° H / 140° V |
|
Best Viewing Distance |
Approx. 2.5 m – 25 m |
|
Driving / Scan Mode |
Dynamic 1/16 duty, constant current |
|
Max Power Consumption |
~1,180 W/m² |
|
Average Power Consumption |
~550 W/m² |
|
Operating Temperature |
-20 °C to +60 °C |
|
Protection Level |
IP65 |
|
Lifetime |
≥ 100,000 hours |
| Call for Price | No |
|---|---|
| Brand | Abetree |
