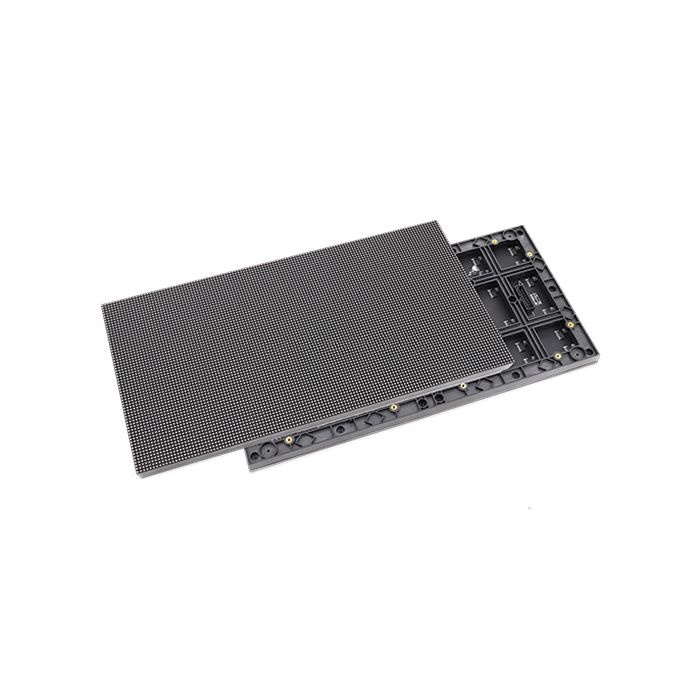

P2.5 GOB LED Display Module
P2.5 GOB LED Display Module
Pixel Pitch: 2.5 mm
LED Type: SMD 3-in-1
Module Size: 320 × 160 mm
Module Resolution: 128 × 64 dots
Pixel Density: 160,000 dots / m²
Brightness: 800 – 1000 cd/m²
Refresh Rate: ≥ 3840 Hz
Best Viewing Distance: 2.5 – 35 m
P2.5 GOB LED Display Module
The P2.5 GOB LED Module delivers high-definition visuals and exceptional durability for indoor applications. Featuring a 2.5 mm pixel pitch and advanced GOB (Glue-on-Board) encapsulation, it provides enhanced protection against dust, moisture, and impact while maintaining vivid color uniformity. With a 3840 Hz refresh rate, wide 160° viewing angle, and sleek modular design (320 × 160 mm), it’s ideal for conference rooms, studios, control centers, retail stores, and digital signage displays that demand clarity and reliability.
Key Features
-
2.5 mm Pixel Pitch: Ensures crisp, detailed images for short to medium viewing distances.
-
GOB Encapsulation Technology: Protects LEDs from water, dust, and physical damage for long-term stability.
-
SMD 3-in-1 LED: Delivers vibrant color accuracy and high contrast performance.
-
High Refresh Rate (≥ 3840 Hz): Smooth, flicker-free playback suitable for live broadcast and camera use.
-
Wide Viewing Angle (160°): Clear and consistent images from all directions.
-
Front / Rear Maintenance: Flexible installation and easy servicing.
-
Low Power, High Brightness: Optimized energy efficiency with 800–1000 cd/m² output.
-
Ideal for Indoor Use: Best suited for malls, studios, exhibitions, control rooms, and corporate displays.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
CL-I-P2.5-320-160 |
|
Pixel Pitch |
2.5 mm |
|
LED Type |
SMD 3-in-1 (1R1G1B) |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
128 × 64 dots |
|
Pixel Density |
160,000 dots / m² |
|
Brightness |
800 – 1000 cd/m² |
|
Refresh Rate |
≥ 3840 Hz |
|
Viewing Angle (H/V) |
160° / 160° |
|
Best Viewing Distance |
2.5 – 35 m |
|
Scan Mode |
1/32 Scan |
|
Grey Scale |
14 – 16 bit |
|
Average Power Consumption |
≈ 250 W/m² |
|
Maximum Power Consumption |
≈ 580 W/m² |
|
Maintenance Method |
Front / Rear Service |
|
Control System |
DVI, HDMI, LAN, Remote Supported |
|
Operating Temperature |
–20 °C ~ +60 °C |
|
Humidity Range |
10 % – 90 % RH |
|
Protection Rating |
IP30 (Indoor Use) |
|
Lifespan |
≥ 100,000 hours |
|
Warranty |
2 Years |
