P13.33 LED Display Module

P13.33 LED Display Module

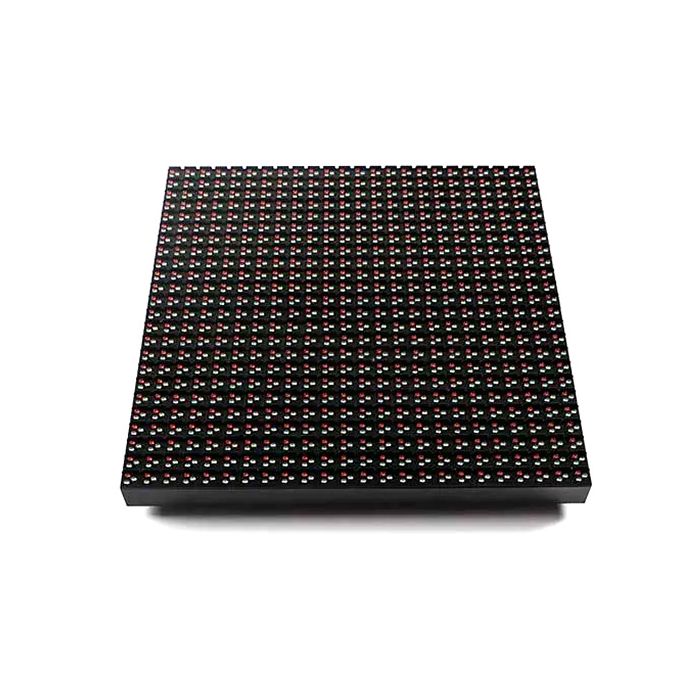

The P13.33 LED Module is a robust outdoor-ready 320×320 mm RGB display module built using high-quality DIP LED technology. With a pixel pitch of 13.33 mm, it delivers vivid content from a distance of 10 m or more, and features a rugged IP65 waterproof rating, ensuring reliable performance in demanding installations.

Key Features

• Modular 320 mm × 320 mm size for easy installation and scalable configurations.


• P13.33 mm pixel pitch yields 24 × 24 (or 32×32 per spec) resolution per module.

• High-brightness output up to 10,000 nits for excellent visibility in outdoor daylight.

• Durable DIP LED type, uniform current drive for consistent brightness and long life.

• Waterproof construction (IP65), suitable for outdoor signage and exhibition use.

• Wide viewing angles: ±110° horizontal and vertical for flexible mounting.


• Colour temperature user-adjustable (5,000–9,500 K) and 16-bit colour processing.

• Long lifetime of up to 100,000 hours, backed by 2-year warranty.


• Average power consumption approx. 350 W/m², peak up to 800 W/m².



Technical Specifications:
