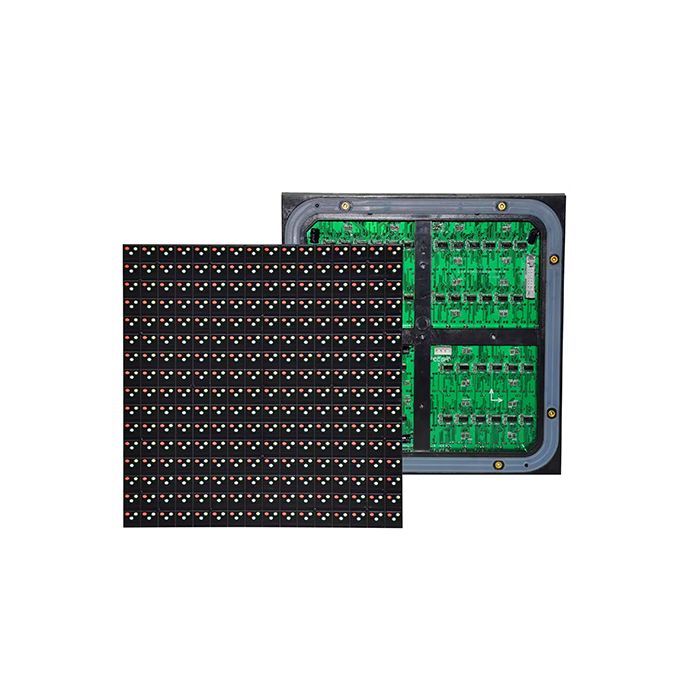

P10 Outdoor Full-Color LED Module
P10 Outdoor Full-Color LED Module
Pixel Pitch: 10 mm
Module Size: 320 × 160 mm
Module Resolution: 32 (H) × 16 (V) pixels
Pixel Density: ~10,000 pixels/m²
Brightness (White): 5,000–10,000 cd/m² (typical outdoor)
Best Viewing Distance: Approx. ≥ 10 m
Viewing Angle (H/V): ~110°–140° / ~110°–140°
P10 Outdoor Full-Color LED Module
The P10 Outdoor LED Module features a 10 mm pixel pitch in a standard 320×160 mm (32×16 pixel) module size. Built for demanding outdoor applications with high brightness, waterproof design and durable full-colour RGB performance.
Key Features
-
P10 (10 mm) pixel pitch suited for outdoor viewing distances.
-
RGB 3-in-1 DIP/LED configuration for vibrant colour and uniform brightness.
-
Standard module size 320 mm × 160 mm with 32 × 16 pixel resolution for flexible assembly.
-
High brightness exceeding ~5,000–10,000 cd/m² for daylight-visible outdoor screens.
-
Robust waterproof protection (front IP65) for reliable outdoor performance in harsh weather.
-
Constant-current driving, high refresh rate for smooth video playback and long lifetime (100,000+ hours typical).
Technical Specifications:
|
Specification |
Value |
|
Pixel Pitch |
10 mm |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
32 (H) × 16 (V) pixels |
|
Pixel Density |
~10,000 pixels/m² |
|
Brightness (White) |
5,000–10,000 cd/m² (typical outdoor) |
|
Best Viewing Distance |
Approx. ≥ 10 m |
|
Viewing Angle (H/V) |
~110°–140° / ~110°–140° |
|
Driving / Scan Mode |
Constant-current, typically 1/4 scan |
|
Max Power Consumption |
~800 W/m² |
|
Average Power Consumption |
~300-400 W/m² |
|
Operating Temperature |
-20 °C to +50/60 °C |
|
Protection Grade |
IP65 (front) |
|
Lifetime |
≥ 100,000 hours |
|
Certificates |
CE, RoHS |
| Call for Price | No |
|---|---|
| Brand | Varito |
