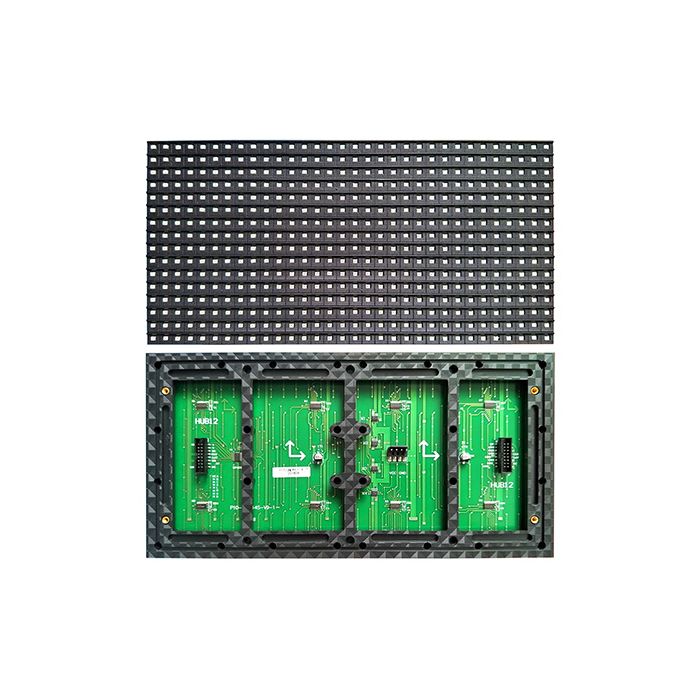

P10 LED Display Module 320×160 mm
P10 LED Display Module 320×160 mm
Pixel Pitch: 10 mm
LED Type: DIP 3-in-1 RGB
Module Size: 320 × 160 mm
Module Resolution: 32 (H) × 16 (V) pixels
Pixel Density: ~10,000 pixels/m²
Brightness (White): Approx. 10,000 cd/m²
Best Viewing Distance: ≥ 10 m
Viewing Angle (H / V): ~±110° horizontal / ~±110° vertical
P10 LED Display Module 320×160 mm
The P10 LED Display Module features a robust 10 mm pixel pitch with DIP 3-in-1 RGB LED package and a standard 320×160 mm module size (32×16 pixels). Built for outdoor fixed installations, it supports high brightness, waterproof protection (IP 65) and constant-current driving for reliable performance in demanding environments.
Key Features
-
10 mm pixel pitch (P10), ideal for outdoor viewing distances of 10 m or more.
-
DIP 3-in-1 LED (integrated red, green & blue in one LED) for durability and high brightness.
-
Module size 320 mm × 160 mm, resolution 32 × 16 dots, supporting standard outdoor LED wall builds.
-
Waterproof front rated IP65, and built for outdoor conditions (-20 °C to +50 °C).
-
High brightness (≥ 10,000 nits typical) for strong daylight visibility.
-
Constant-current driving method with 1/4 scan; certified CE & RoHS with 2-year warranty.
Technical Specifications:
|
Specification |
Value |
|
Pixel Pitch |
10 mm |
|
LED Type / Package |
DIP 3-in-1 RGB |
|
Module Size |
320 × 160 mm |
|
Module Resolution |
32 (H) × 16 (V) pixels |
|
Pixel Density |
~10,000 pixels/m² |
|
Brightness (White) |
Approx. 10,000 cd/m² |
|
Best Viewing Distance |
≥ 10 m |
|
Viewing Angle (H / V) |
|
|
Driving / Scan Mode |
Constant current, 1/4 scan |
|
Average Power Consumption |
~350 W/m² |
|
Max Power Consumption |
~800 W/m² |
|
Working Temperature |
-20 °C to +50 °C |
|
Protection Grade |
IP65 front waterproof |
|
Lifetime |
≥ 100,000 hours |
|
Certifications |
CE, RoHS |
| Call for Price | No |
|---|---|
| Brand | Varito |
