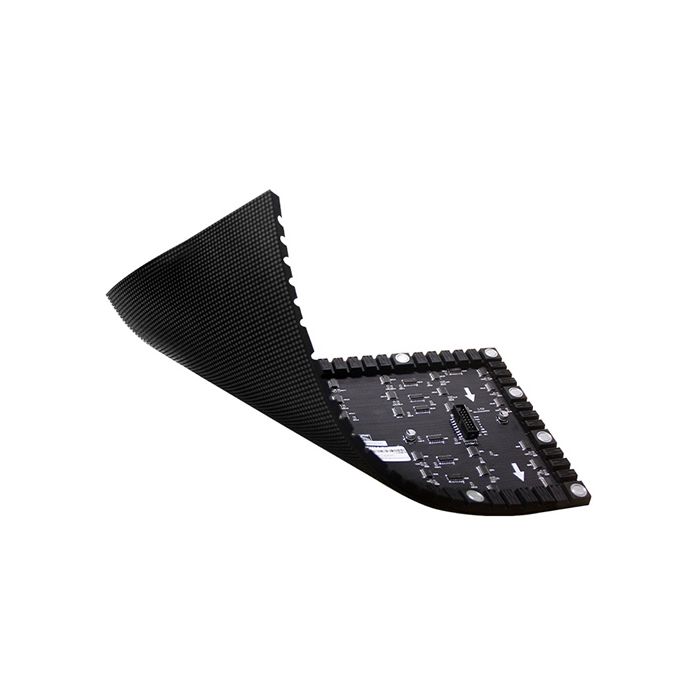

P1.875 Flexible LED Module
P1.875 Flexible LED Module
Pixel Pitch: 1.875 mm
Module Size: 240 mm × 120 mm
Module Resolution: 128 × 64 pixels
LED Type: SMD 1515
Brightness (White): Approx. 750 cd/m²
Refresh Rate: ~3840 Hz
Scan Mode: 1/32 scan
P1.875 Flexible LED Module
The P1.875 mm Flexible LED Module delivers an ultra-fine 1.875 mm pixel pitch combined with a soft, bendable substrate design, enabling high-definition imagery on curved, cylindrical or irregular indoor surfaces. Ideal for premium retail displays, exhibition backdrops, architectural integrated installations and creative LED video walls.
Key Features:
-
Ultra-fine 1.875 mm pixel pitch for crisp visuals even at short viewing distances.
-
Soft-flexible module construction allows bending and shaping for concave, convex and free-form installations, perfect for creative indoor curved video walls.
-
Lightweight and slim design (thickness approx. 8.6 mm) simplifies installation on non-standard surfaces and reduces structural demands.
-
High refresh rate (≈ 3840 Hz) ensures flicker-free video playback and suitability for camera-sensitive environments.
-
Brightness of approximately 750 cd/m² (typical) delivers vivid indoor image quality.
-
Supports front-service maintenance and curved installation thanks to modular design and flexible format.
-
Certified with CE, RoHS standards for quality assurance.
Technical Specification:
|
Parameter |
Specification |
|
Pixel Pitch |
1.875 mm |
|
Module Size |
240 mm × 120 mm |
|
Module Resolution |
128 × 64 pixels |
|
LED Type |
SMD 1515 (3-in-1 full-colour) |
|
Brightness (White) |
Approx. 750 cd/m² |
|
Refresh Rate |
~3840 Hz |
|
Scan Mode |
1/32 scan |
|
Input Voltage |
DC 5 V |
|
Max Power Consumption |
Approx. 14 W per module |
|
Module Thickness |
~8.6 mm |
|
Module Weight |
~0.15 kg |
|
Certifications |
CE, RoHS approved |
| Call for Price | No |
|---|---|
| Brand | Varito |
