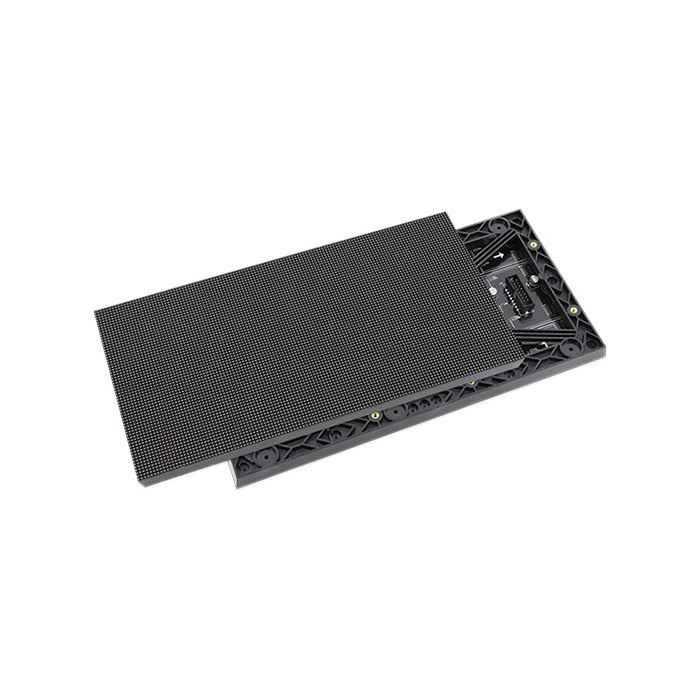

P1.86 GOB LED Display Module
P1.86 GOB LED Display Module
Pixel Pitch: 1.86 mm
LED Type: SMD1515 (3-in-1 RGB)
Module Size: 320 × 160 mm
Resolution per Module: 172 × 86 dots
Pixel Density: ≈ 288,906 dots/m²
Brightness: 600 – 1000 cd/m²
Refresh Rate: ≥ 3840 Hz
Best Viewing Distance: 1.8 – 25 m
P1.86 GOB LED Display Module
The P1.86 GOB LED Module delivers high-precision visuals with a 1.86 mm pixel pitch for ultra-clear indoor display applications. Equipped with SMD1515 3-in-1 LEDs and optional GOB encapsulation, it ensures exceptional color accuracy, impact resistance, and dust protection. Perfect for boardrooms, control centers, museums and retail spaces, this module offers a 3840 Hz refresh rate and superior visual uniformity for seamless viewing experiences.
Key Features
-
1.86 mm Pixel Pitch: Delivers fine-detail images for short-viewing distances.
-
GOB Technology: Protects LEDs against moisture and impact, extending lifespan.
-
Full Black LEDs: Improved contrast and color depth for vivid imagery.
-
High Refresh Rate 3840 Hz+: Smooth video and motion display without flicker.
-
Front or Rear Maintenance: Simplified installation and service.
-
Standard Size 320×160 mm: Modular design compatible with most LED cabinets.
-
Wide Viewing Angle 160°: Consistent color and brightness from any angle.
-
Low Power Consumption: Energy-efficient operation with stable performance.
Technical Specifications:
|
Parameter |
Specification |
|
Model |
CL-I-P1.86-320-160 |
|
Pixel Pitch |
1.86 mm |
|
LED Type |
SMD1515 (3-in-1 RGB) |
|
Module Size |
320 × 160 mm |
|
Resolution per Module |
172 × 86 dots |
|
Pixel Density |
≈ 288,906 dots/m² |
|
Brightness |
600 – 1000 cd/m² |
|
Refresh Rate |
≥ 3840 Hz |
|
Viewing Angle (H/V) |
160° / 160° |
|
Best Viewing Distance |
1.8 – 25 m |
|
Scan Mode |
1/32 Scan |
|
Grey Scale |
14 – 16 bit |
|
Avg. Power Consumption |
250 W/m² |
|
Max Power Consumption |
580 W/m² |
|
Maintenance Method |
Front / Rear |
|
Control System |
DVI / HDMI / LAN / Remote Supported |
|
Operating Temp |
–20 °C ~ +60 °C |
|
Humidity Range |
10 % – 90 % RH |
|
Protection Rating |
IP30 (Indoor) |
|
Lifetime |
≥ 100,000 hours |
|
Warranty |
2 Years |
