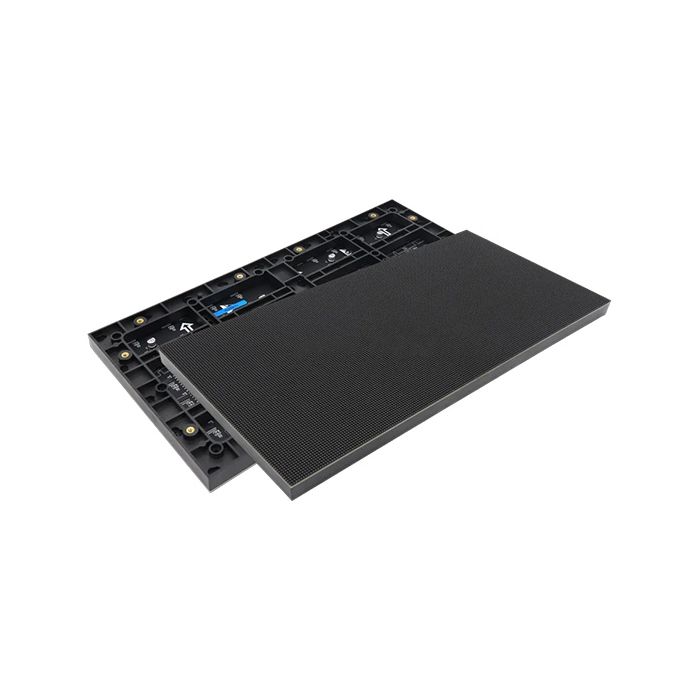

P1.86 Flexible LED Module
P1.86 Flexible LED Module
Pixel Pitch: 1.86 mm
Module Size: 320 mm × 160 mm
Module Resolution: 172 × 86 dots
LED Package / Type: SMD1212
Pixel Configuration: 1R-1G-1B
Refresh Rate: ≥ 3840 Hz
Brightness (White): ~700-750 cd/m²
P1.86 Flexible LED Module
The P1.86 mm Flexible LED Module offers a fine 1.86 mm pixel pitch and a soft-flexible module design, enabling high-definition indoor displays on curved, cylindrical or dynamic surfaces. Ideal for premium retail installations, exhibition walls, architecture-integrated visuals and creative fixed indoor LED installations.
Key Features:
-
Ultra-fine 1.86 mm pixel pitch provides high-density imagery even at closer viewing distances.
-
Soft flexible module design, supports bending for convex and concave surfaces and special-shape installations like arcs and waves.
-
Two module size options (e.g., 320 × 160 mm or 300 × 168 mm) for flexible installation layouts.
-
High refresh rate (≥ 3840 Hz) for flicker-free video playback in camera-sensitive environments.
-
High contrast and wide viewing angles for vivid indoor visual performance.
-
Lightweight and thin construction, simplifies installation on non-standard surfaces compared with rigid modules.
-
CE, RoHS, FCC approved for reliability in professional indoor fixed installations.
Technical Specification:
|
Parameter |
Specification |
|
Pixel Pitch |
|
|
Module Size |
|
|
Module Resolution |
|
|
LED Package / Type |
|
|
Pixel Configuration |
|
|
Refresh Rate |
|
|
Brightness (White) |
|
|
Curvature / Flexibility |
|
|
Scan Method |
|
|
Typical Lifetime |
|
|
Viewing Angle (H/ V) |
|
|
Certifications |
| Call for Price | No |
|---|---|
| Brand | Varito |
