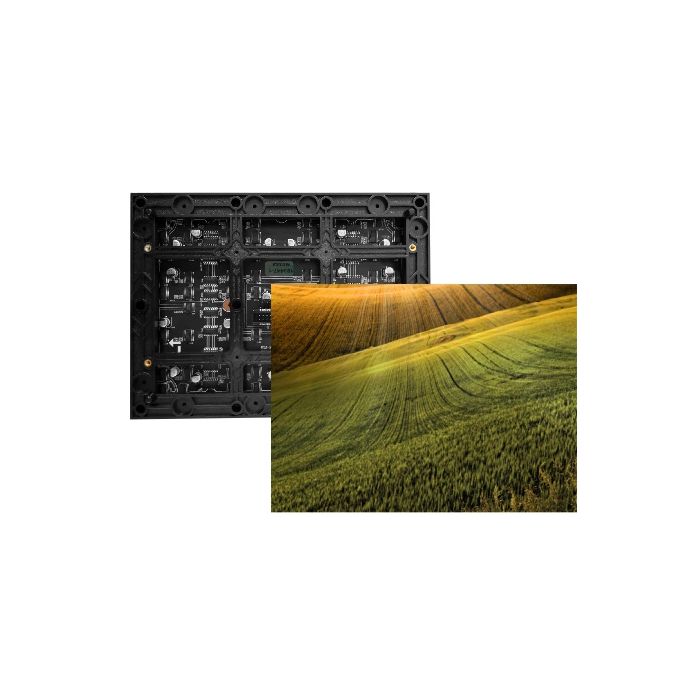

P1.56 COB LED Display Module
P1.56 COB LED Display Module
Pixel Pitch: 1.56 mm
Pixel Configuration: 1R : 1G : 1B
Pixel Density: ~ 409,600 dots/m²
Module Size; ~150 mm × 168.75 mm
Module Resolution: ~96 × 108 pixels
Cabinet Size: ~600 mm × 337.5 mm
Cabinet Resolution: ~384 × 216 pixels
Brightness: ≥ 600 cd/m²
Refresh Rate: ≥ 3,840 Hz
P1.56 COB LED Display Module
The P1.56 mm COB LED Display Module delivers ultra-fine pixel pitch of 1.56 mm, enabling exceptional image clarity and smooth visuals for high-end indoor installations. With advanced COB (Chip-On-Board) packaging for seamless surface, high refresh rate and wide viewing angles, it’s ideal for environments such as broadcast studios, command & control rooms, luxury retail spaces and corporate presentation walls. Designed for front-service maintenance and long-term reliability, it sets the standard for high-definition video wall solutions.
Key Features
-
Ultra-fine pixel pitch of 1.56 mm for close-up viewing with sharp text and detailed graphics.
-
COB packaging technology ensures minimal seams, superior flatness and excellent colour uniformity.
-
High refresh rate (≥ 3,840 Hz) for flicker-free video playback and smooth motion rendering.
-
Wide vertical/horizontal viewing angles (≈ 160°-170°) for consistent image quality across the room.
-
Modular design (module size ~150 × 168.75 mm, cabinet size ~600 × 337.5 mm) for flexible, large-scale video wall configurations.
-
Lightweight die-cast aluminium cabinet ensures good flatness, fast installation and improved heat dissipation.
-
Energy-efficient design thanks to common-cathode/COB architecture, significantly lower average power consumption than older SMD modules.
-
Full front maintenance support, enabling module and power supply access from the front for fast servicing and minimal downtime.
-
Ideal for high-definition indoor fixed installations requiring premium image quality and long service life (≥ 100,000 hours).
Technical Specifications:
|
Parameter |
Specification |
|
Pixel Pitch |
1.56 mm |
|
Pixel Configuration |
1R : 1G : 1B |
|
Pixel Density |
~ 409,600 dots/m² (for P1.56) |
|
Module Size |
~150 mm × 168.75 mm (common) |
|
Module Resolution |
~96 × 108 pixels (typical) |
|
Cabinet Size |
~600 mm × 337.5 mm (for standard 16:9 layout) |
|
Cabinet Resolution |
~384 × 216 pixels (for 600×337.5mm) |
|
Brightness |
≥ 600 cd/m² (typical indoor) |
|
Refresh Rate |
≥ 3,840 Hz |
|
Grey Scale / Colour Depth |
14-16 bit or higher depending on driver |
|
Viewing Angle |
~ 160° H / ~ 160° V (or up to 170°) |
|
Operating Temperature |
~ –20 °C to +60 °C (indoor range) |
|
Humidity |
~ 10%-90% RH (non-condensing) |
|
Average Power Consumption |
~ 200 W/m² (typical) for P1.56 COB |
|
Maximum Power Consumption |
~ ≤ 500 W/m² (tested at ~600 nits) for P1.56 COB |
|
Service Method |
Full front maintenance (module & power supply) |
|
Protection Level |
Typical indoor IP54 front rating (COB version) |
| Call for Price | No |
|---|---|
| Brand | Varito |
