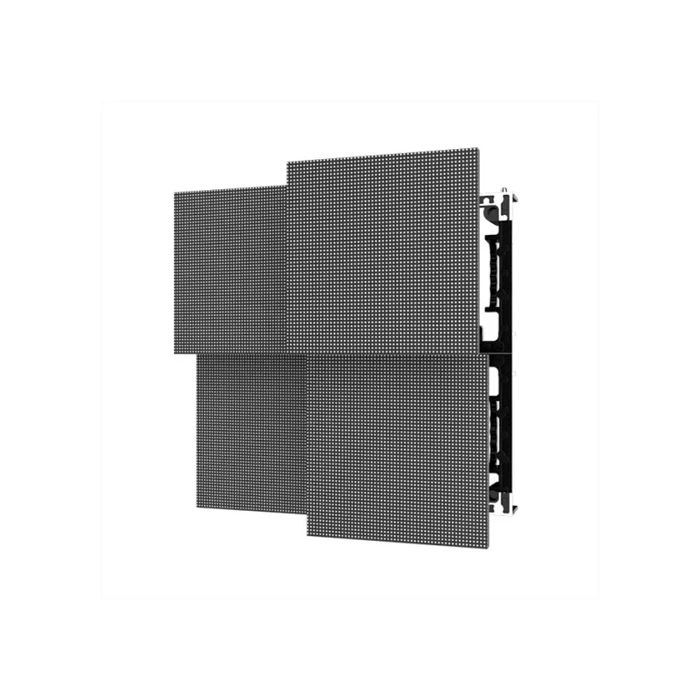

P1.5 Indoor LED Display Screen Module
$24,000.00
In stock
SKU
P15LEDM
Main Specification
Pixel Pitch: 1.538mm
Module Size: 320*160*15mm
Resolution: 208*104dps
Horizontal View Angle: 140 Deg.
Verticle View Angle: 120 Deg.
Brightness: ≥600cd/m2 nits
Contrast Ratio: ≤5000:1
Pixel Density: 640000pix/㎡
Refresh Rate: ≥1920-3840Hz
Control Distance: Cable:100m, Optical Fiber:10KM
P1.538 LED Module Specification
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red | 3 IN 1 SMD | 70-100mcd | 140°/120° | 620-625nm | 25℃,20mA | |
| Green | 120-200mcd | 140°/120° | 515-530nm | 25℃,10mA | ||
| Blue | 30-40mcd | 140°/120° | 465-475nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | P1.538mm | |||||
| Pixel Strcture | 3 IN 1 SMD | |||||
| Pixel Density | 640000pixels/㎡(real pixel) | |||||
| Module Resolution | 208pixel(L) * 104pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm (H) * 15mm(D) | |||||
| Cabinet Dimension | 640*480*48.5mm | |||||
| Cabinet Weight | .32 (kg) | |||||
| Single Point Brightness, Chroma Correction: Support | ||||||
| White Balance Brightness | ≥600 cd/㎡ | |||||
| Viewing Angle | 140°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Color Tempareture | 2000K-12500K (adjustable) | |||||
| Display Color | 68.7 Billion Color | |||||
| Brightness Uniformity | ≥97% | |||||
| Contrast Ratio | ≥5000:1 | |||||
| Process Performance | ||||||
| Single Processing bits | 16bits*3 | |||||
| Gray Scale | 12-16Bit | |||||
| Control Distance | Cable:100m, Optical Fiber:10KM | |||||
| Drive Mode | Constant current source driver | |||||
| Frame rate | ≥60Hz | |||||
| Refress rate | 1920-3840Hz | |||||
| Way to control | Synchronize | |||||
| Brightness adjustment range | 0-100 Stepless | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| User Paramiter | ||||||
| Working Temperature | -20～+50 ºC | |||||
| Stored Temperature | -30～+60 ºC | |||||
| Working Humidity | 10%～80% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| IP Protection Grade | IP20 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||
| Electricity Parameter | ||||||
| Operating Voltage | DC 4.5-5V | |||||
| Power Requirements | AC 220 x (1±10%)V, 50x(1±10%)Hz | |||||
| Max. Power Consume | 680w/m2 | |||||
| Average Power Consume | 270w/m2 | |||||
| Call for Price | No |
|---|---|
| Brand | Varito |
