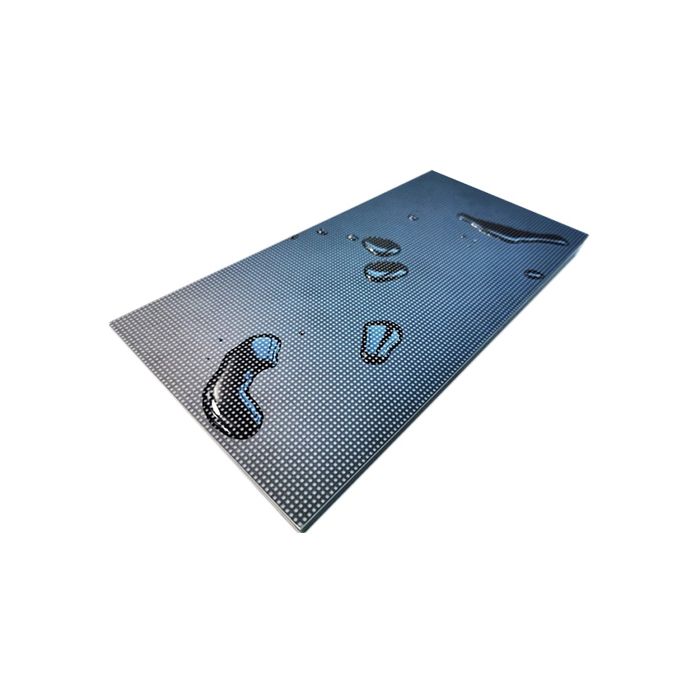

P1.25 GOB LED Display Module
P1.25 GOB LED Display Module
Pixel Pitch: 1.25 mm
Module Size: 320 mm (W) × 160 mm (H)
Pixel Configuration: 1R1G1B (SMD 3-in-1)
Resolution per Module: 256 × 128 dots
Scan Rate: 1/64 constant current
Viewing Angle (H / V): ~160° / ~160°
P1.25 GOB LED Display Module
The P1.25 GOB LED Module delivers ultra-fine 1.25 mm pixel pitch clarity in a durable GOB (Glue-on-Board) package designed for professional indoor visual environments. With a compact 320 × 160 mm module size, it supports front or rear servicing and provides rich colour, deep contrast, smooth motion and high density resolution, ideal for conference rooms, exhibition halls, control centres and premium digital signage.
Key Features
-
Ultra-fine 1.25 mm pixel pitch delivers premium high-definition image clarity.
-
Standard module size: 320 mm × 160 mm, enabling easy installation and seamless tiling.
-
GOB encapsulation (Glue-on-Board) with SMD 3-in-1 LED technology for enhanced durability and uniformity.
-
Wide viewing angles (typically 160° horizontal and vertical) ensure consistent image quality from diverse vantage points.
-
High refresh rate (up to 3840 Hz) and advanced grayscale for smooth video playback without flicker.
-
Front or rear maintenance design, simplifying installation, servicing and module replacement.
-
Deep contrast (>5000:1) and rich colour rendering provide immersive visual experiences.
-
Flexible control options (synchronous/ asynchronous) and remote monitoring capability for modern installations.
Technical Specifications:
|
Parameter |
Specification |
|
Pixel Pitch |
|
|
Module Size |
320 mm (W) × 160 mm (H) |
|
Pixel Configuration |
1R1G1B (SMD 3-in-1) |
|
Resolution per Module |
256 × 128 dots |
|
Scan Rate |
1/64 constant current |
|
Viewing Angle (H / V) |
~160° / ~160° |
|
Best Viewing Distance |
1.5 m – 20 m |
|
Grey Level |
14-bit |
|
Brightness |
600–1000 cd/㎡ |
|
Brightness Uniformity |
>99% |
|
Input Voltage |
AC 100-240V / 50-60Hz |
|
Avg. Power Consumption |
250 W/m² |
|
Max Power Consumption |
580 W/m² |
|
Control System |
DVI card + full-colour control card; synchronous & asynchronous supported |
|
Lifetime |
≥100,000 hours |
|
Working Temp / Humidity |
–20 °C to +60 °C; 10%–90% RH |
|
Protection Rating |
Front/Rear IP30 |
|
Warranty |
2 years |
| Call for Price | No |
|---|---|
| Brand | Varito |
