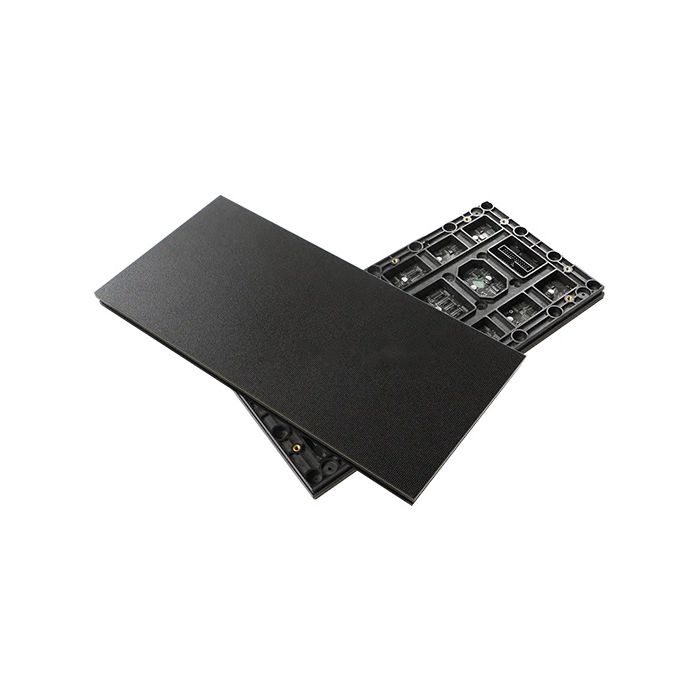

P1.25 Flexible LED Module
P1.25 Flexible LED Module
Pixel Pitch: 1.25 mm
Module Size: 320 mm × 160 mm
Module Resolution: 256 × 128 pixels
Pixel Configuration: 1R-1G-1B (SMD3-in-1)
Driving Method / Scan: Constant current, 1/64 scan
Brightness (White): Approx. 600-1000 cd/m²
Viewing Angle: Horizontal: ~160°, Vertical: ~160°
P1.25 Flexible LED Module
The P1.25 mm Flexible LED Module delivers ultra-fine resolution with a 1.25mm pixel pitch, while offering a soft-flexible form-factor that enables creative indoor curved and irregular surface installations. Ideal for high-end retail, experiential spaces, architectural integration and premium fixed indoor displays.
Key Features:
-
Ultra-fine 1.25 mm pixel pitch delivers sharp, high-density imagery even at close viewing distances.
-
Soft-flexible module design allows bending around convex and concave surfaces, enabling curved, wave, or cylindrical LED installations.
-
High refresh rate (≥ 3840 Hz) ensures flicker-free smooth video playback, ideal for camera-sensitive environments.
-
SMD “3-in-1” full-colour LED configuration (Red/Green/Blue) ensures rich colour fidelity and uniform brightness.
-
Excellent viewing angles (up to 160° horizontal/vertical) for consistent image quality across wide audiences.
-
High contrast, deep blacks and high uniformity for premium visual appearance in indoor ambient lighting.
-
Lightweight, modular assembly with quick-service design for efficient installation and maintenance on indoor projects.
Technical Specification:
|
Parameter |
Specification |
|
Pixel Pitch |
1.25 mm |
|
Module Size |
320 mm × 160 mm |
|
Module Resolution |
256 × 128 pixels |
|
Pixel Configuration |
1R-1G-1B (SMD3-in-1) |
|
Driving Method / Scan |
Constant current, 1/64 scan |
|
Brightness (White) |
Approx. 600-1000 cd/m² |
|
Viewing Angle |
Horizontal: ~160°, Vertical: ~160° |
|
Grey Level |
~14-16 bits |
|
Best Viewing Distance |
~1.5 m – 20 m |
|
Lifetime |
≥100,000 hours typical |
|
Input Voltage |
DC 5 V (module) typical |
|
Max Power Consumption |
Typical ~250 W/m², maximum ~580 W/m² |
|
Operating Humidity |
10% – 90% RH |
|
Scan Mode |
1/64 scan typical |
| Call for Price | No |
|---|---|
| Brand | Varito |
