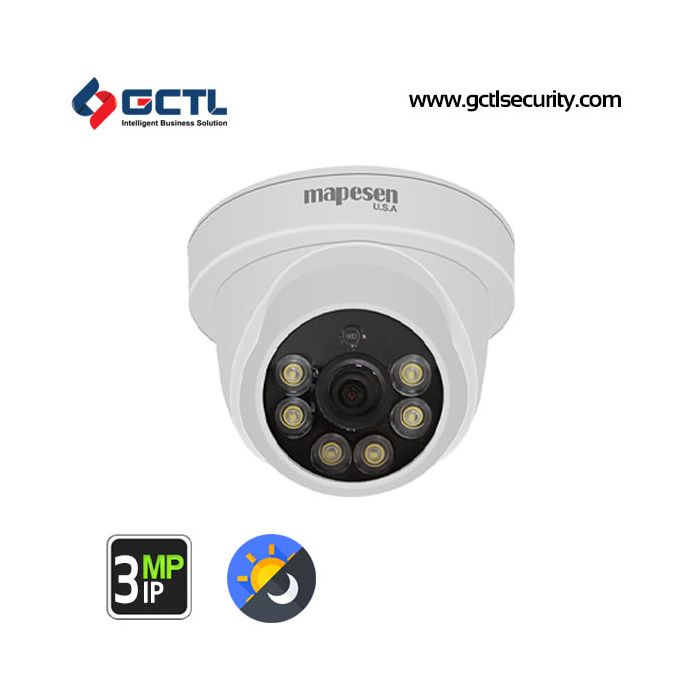

MAPESEN MP-Q2ESI301LF Night Vision Network Dome Camera
MAPESEN MP-Q2ESI301LF Night Vision Network Dome Camera
Brand: MAPESEN
Model: MP-Q2ESI301LF
Sensor: 1/2.9" Color CMOS
Lens: Varifocal 3.6mm
Resolution: 2304 x 1296
IR Distance: 20-25 meters
Lamp Plate : 6pcs Auto-adjust LEDs
Best CCTV Camera price in Bangladesh
Call for Discount / Price Match policy
MAPESEN MP-Q2ESI301LF Night Vision Network Dome Camera
The MAPESEN MP-Q2ESI301LF Night Vision Network Dome Camera is a high-performance IP surveillance camera designed for indoor or outdoor use in commercial or residential settings. Featuring a 1/2.9″ colour CMOS sensor, a fixed 3.6 mm lens, full-colour day & night capability and advanced video compression (H.265/H.264), it delivers crisp, full-time video monitoring.
This dome camera supports network streaming, remote access, and smart detection functions, all within a compact, discreet dome housing. With its low-light performance, reliable weather-proofing and ONVIF compatibility, the MP-Q2ESI301LF is ideal for homes, offices, shops and institutional premises in Bangladesh seeking cost-effective, professional security solutions.
Features
-
1/2.9″ colour CMOS image sensor for sharp imagery.
-
Full-colour Day & Night mode (no IR cut required) for continuous 24-hour monitoring.
-
Fixed 3.6 mm lens offering a wide field of view.
-
Support for H.265 / H.264 compression to save bandwidth and storage.
-
ONVIF compliance for easy integration with third-party NVRs and VMS systems.
-
Adjustable image settings: brightness, contrast, saturation, mirror/flip and OSD overlay.
-
Motion detection windows (22 × 18 grid) for detailed alarm configuration.
-
Network interface: RJ-45 10/100 Mb/s Ethernet; supports TCP/IP, HTTP, RTSP, DHCP, NTP, UPNP.
-
Low power consumption (max ≈ 4 W) under DC12V ±10%.
-
Operating temperature range –30 °C to +85 °C, humidity 10%–95% (non-condensing).
Technical Specifications:
|
Model No. |
MP-Q2ESI301LF |
|
Camera |
|
|
Image Sensor |
1/2.9" color CMOS |
|
Day & night Mode |
FULL COLOR DAY&NIGHT |
|
Lens |
3.6mm |
|
Shutter Time |
Auto |
|
Light Distance |
20-25m |
|
Lamp Plate |
6pcs Auto-adjust LEDs |
|
White Balance |
Auto / Manual |
|
AGC |
Auto |
|
WDR |
Digital WDR |
|
DNR |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
Video |
|
|
Max. Image Resolution |
3MP(2304*1296)@25fps,1080P(1920x1080)@30fps |
|
Frame Rate |
Main code stream:3MP@25fps;1080P/720P/D1@30fps; Auxiliary stream: D1/VGA/640x352/CIF@30fps |
|
Video Compression |
H265[$add]/H265/H264 |
|
Video Bit Rate |
500Kbps-4096Kbps support self-adjustable as needed |
|
Image Settings |
Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable |
|
Bit Superposition |
Support OSD name,time and date information superposition |
|
Web Access |
Internet explorer 6.0 and above (Web Server embedded in device) browser |
|
Audio |
|
|
Audio I/O |
No |
|
Audio compression |
G.711 |
|
Network |
|
|
Network Interface |
1*RJ45 10M/100M Ethernet Port |
|
Networking Protocol |
TCP/IP, HTTP, RTSP, DHCP, NTP, UPNP |
|
ONVIF |
ONVIF2.6 |
|
APP |
Support android, IOS |
|
PC |
Support |
|
System |
|
|
Alarm I/O |
Motion detection alarm |
|
Storage |
No |
|
Motion Detection |
22*18 windows motion detection areas can be setting (sensitivity setting 1-100) |
|
Video Mask |
Support |
|
Action with Alarm |
Push to mobile APP |
|
General |
|
|
Language Support |
CHN(S)/CHN(T)/ENG |
|
POE |
No |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 4W |
|
Lightning protection |
Support |
|
Housing |
Plastic Dome |
|
Weather Proof |
N/A |
|
Working Temperature |
-30 °C to 85 °C |
|
Working Humidity |
10%-95% (Non-condensing) |
| Call for Price | Yes |
|---|---|
| Brand | Mapesen |
| case_type | Dome |
| image_sensor | CMOS |
| ir_distance | 21-30 Meter |
| ir_led | 3-20 IR LED |
| Lens Type | Varifocal Lens |
| local_storage | N/A |
| power_supply | DC12V |
| resolution | 3 Mega Pixel |
| weather_protection | For Outdoor |
| wifi | N/A |
