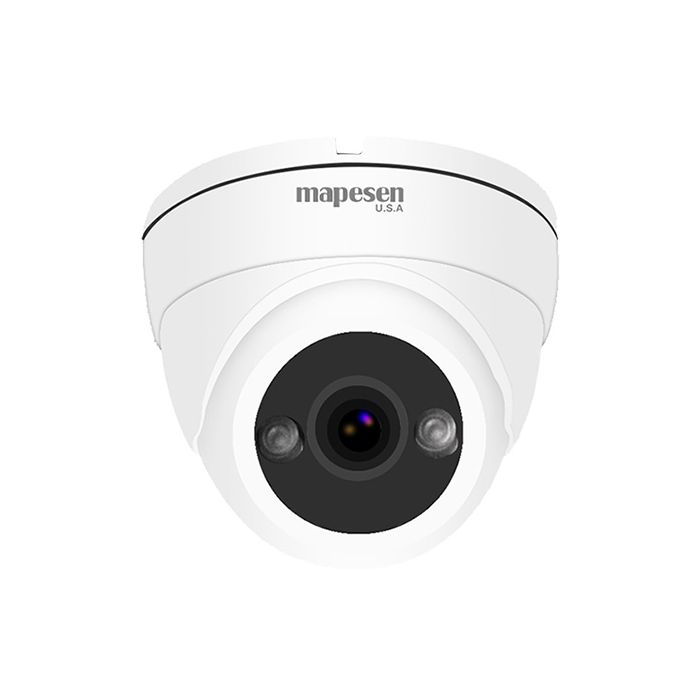

MAPESEN MP-M9AH503V-A HD 4-in-1 IR Indoor Varifocal Camera
MAPESEN MP-M9AH503V-A Varifocal Camera
Brand: MAPESEN
Model: MP-M9AH503V-A
Image Sensor: 1/2.9” COMS Sensor
Image Resolution: 2560X1920
Infrared Distance: 25-30M
IR LED: 36PCS IR LEDs
Best CCTV Camera price in Bangladesh
Call for Discount / Price Match policy
MAPESEN MP-M9AH503V-A HD 4-in-1 IR Indoor Varifocal Camera
The MAPESEN MP-M9AH503V-A is a versatile indoor varifocal bullet camera designed for compatibility with AHD, HDCVI, HDTVI and CVBS formats (4-IN-1). With an adjustable varifocal lens to customize the field of view, built-in smart IR for reliable low-light performance, and enhanced image-processing features like DWDR and noise reduction, it offers flexible indoor surveillance suitable for homes, offices and retail settings.
Features
-
Multi-format output: AHD / HDCVI / HDTVI / CVBS all supported in a single camera design for simple integration.
-
Varifocal lens (2.8-12 mm or similar) allowing customised viewing angle and zoom level without needing separate lenses.
-
Smart IR night-vision capability, provides clear imagery in low-light indoor conditions thanks to built-in infrared LEDs.
-
Advanced image processing: DWDR (Wide Dynamic Range), 3D-DNR (3D Digital Noise Reduction), BLC/HLC support to handle challenging lighting environments indoors.
-
One-button signal switching (UTC/OSD) for easy format change-over during installation.
-
Indoor-optimised housing and mounting bracket for walls or ceilings, ideal for office, retail and home use.
Technical Specification
|
Specification |
Detail (typical for the M9A indoor varifocal series) |
|
Image Sensor |
1/ 2.7″ or 1/ 3″ high sensitivity CMOS sensor |
|
Maximum Resolution |
Up to 4 MP (or variant in series), 2688×1520 or 1920×1080 |
|
Lens |
Varifocal lens (e.g., 2.8-12 mm) for flexible view angle |
|
Minimum Illumination |
Colour mode ~0.01 Lux @ F1.2; IR mode 0 Lux (when IR on) |
|
Smart IR Distance |
Approx. 30-35 m indoor effective range |
|
Signal Format Support |
AHD / HDCVI / HDTVI / CVBS (selectable 4-in-1) |
|
Image Enhancements |
DWDR, 3D-DNR, BLC/HLC, Motion detection support |
|
Power Supply |
DC12 V ±10% (typical for analog HD CCTV cameras) |
|
Power Consumption |
Approx. 3-5 W (depending on IR LED count & lens) |
|
Housing & Environment |
Indoor-rated bullet housing for wall/ceiling mount |
|
Operating Conditions |
Temperature approx. 10 °C to +50 °C; Humidity 10-90% RH (non-condensing) |
| Call for Price | Yes |
|---|---|
| Brand | Mapesen |
| case_type | Dome |
| ir_distance | 21-30 Meter |
| ir_led | 31-50 IR LED |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 5 Mega Pixel |
| technology | AHD |
| weather_protection | For Outdoor |
