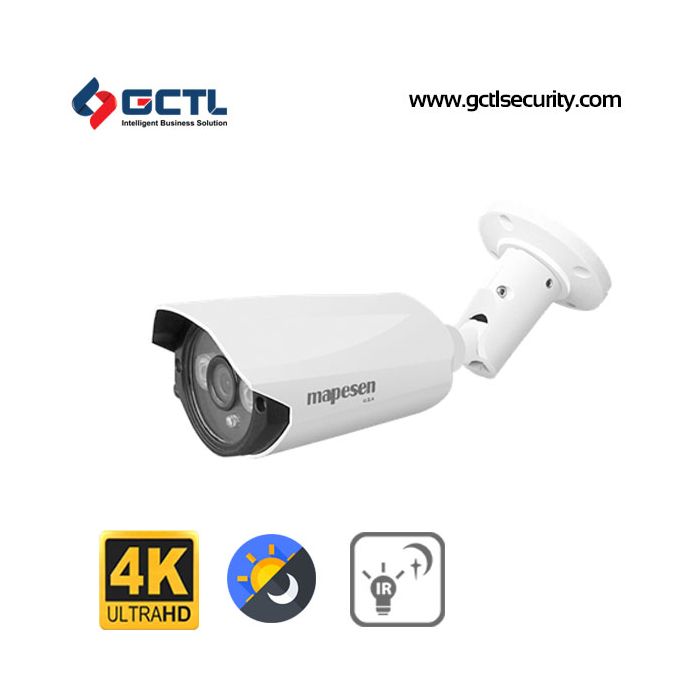

MAPESEN MP-L2QH800F-A 4K 4 IN 1 IR Bullet Camera
Product Key Points
• Brand: MAPESEN
• Model: MP-L2QH800F-A
• Image Sensor: 1/2.3” COMS Sensor
• Image Resolution: 4K(3480x2160)
• Infrared Distance: 30-35M
• IR LED: 3PCS Array IR LEDs
• Best CCTV Camera price in Bangladesh
• Call for Discount / Price Match policy
MAPESEN MP-L2QH800F-A 4K 4 IN 1 IR Bullet Camera
HD 4 IN 1 IR Bullet Camera • 4K • AHD/HDCVI/HDTVI/CVBS• Smart IR • 30-35M IR Distance • DWDR • UTC • One-button switching • Low illumination • IP66 • We offer a range of HD camera series with different shapes, resolutions and lens to fulfill different demands.
FEATURES:
- 1/2.3" CMOS image sensor
- Low light sensitivity of f2.8mm / F1.8
- One-button switching, Vandal-proof
- ONVIF standard supported to simplify system integration
- DWDR to increase image recognizability in overexposure and dark areas
- Day and night 24-hour surveillance with IR effective distance up to 30-35 meters
SPECIFICATIONS:
|
Model number |
MP-L2QH800F-A |
|
|
Camera |
||
|
Image Sensor |
1/2.3’’ CMOS Image Sensor |
|
|
Resolution |
4KMP@12/20fps |
|
|
Effective Pixels |
3480(H)x2160(V) |
|
|
Resolution |
AHD/HDTVI/HDCVI:8Mega Pixell ，CVBS: 960H |
|
|
Video Standard |
PAL/NTSC（OSD） |
|
|
Synchronization |
Inter-Sync |
|
|
Night Vision |
||
|
30-35M |
30-35M |
|
|
IR Led |
3PCS Array IR Leds |
|
|
IR Power On |
CDS Auto Control |
|
|
Features |
||
|
Day & Night mode |
External control（Default）/AUTO/COLOR / B&W |
|
|
UTC |
Support |
|
|
OSD Support |
Support |
|
|
WDR |
Digital WDR |
|
|
Min. Illumination |
0.1Lux@(F1.2,AGC ON) |
|
|
S/N Ratio |
≥47dB |
|
|
Electronic Shutter |
AUTO |
|
|
White Balance |
Auto/Manual |
|
|
AGC |
Default |
|
|
Video Output |
AHD/TVI/CVI/CVBS Switch by key cable |
|
|
Dynamic Range |
68db |
|
|
DNR: |
2D 3D DNR |
|
|
Language: |
Chinese/English |
|
|
Lens |
||
|
Focal Length |
4.5mm |
|
|
Lens Mount |
M12 |
|
|
Lens Type |
Fixed,8.0MP |
|
|
Angle of View |
Horizontal: 70.6° Vertical：51.5° |
|
|
General |
||
|
Type |
Outdoor Metal Bullet Camera(IP66) |
|
|
Video Interface |
BNC Cable |
|
|
Power Supply |
12 V DC±10% |
|
|
Lightning Protection |
Support |
|
|
Power Consumption |
4W |
|
|
Working Humidity |
Relative humidity less than 90% |
|
|
Operating Temperature |
-20°C to [$add]50°C (- 14°F to 122°F ) |
|
|
Storage Temperature |
-40°C to [$add]60°C ( -40°F to 140°F ) |
|
|
Model number |
MP-L2QH503F-A |
|
|
Camera |
|
|
|
Image Sensor |
1/2.9’’ Sony CMOS Image Sensor |
|
|
Resolution |
5MP@12/20fps，4MP@15 / 25fps / 30fps |
|
|
Effective Pixels |
2560(H)x1920(V) |
|
|
Resolution |
AHD/HDTVI:5.1Mega Pixel,HDCVI:4.0Mega Pixel CVBS: 960H |
|
|
Video Standard |
PAL/NTSC（OSD） |
|
|
Synchronization |
Inter-Sync |
|
|
Night Vision |
|
|
|
30-35M |
30-35M |
|
|
IR Led |
3PCS Array IR Leds |
|
|
IR Power On |
CDS Auto Control |
|
|
Features |
|
|
|
Day & Night mode |
External control（Default）/AUTO/COLOR / B&W |
|
|
UTC |
Support |
|
|
OSD Support |
Support |
|
|
WDR |
Digital WDR |
|
|
Min. Illumination |
0.001Lux@(F1.2,AGC ON) |
|
|
S/N Ratio |
≥45dB |
|
|
Electronic Shutter |
AUTO |
|
|
White Balance |
Auto/Manual |
|
|
AGC |
Default |
|
|
Video Output |
AHD/TVI/CVI/CVBS Switch by key cable |
|
|
Dynamic Range |
72db |
|
|
DNR |
2D DNR |
|
|
Language |
Chinese/English |
|
|
Lens |
|
|
|
Focal Length |
3.6mm |
|
|
Lens Mount |
M12 |
|
|
Lens Type |
Fixed,5.0MP |
|
|
Angle of View |
Horizontal: 79.3° Vertical：54.5° |
|
|
General |
|
|
|
Type |
Outdoor Metal Bullet Camera(IP66) |
|
|
Video Interface |
BNC Cable |
|
|
Power Supply |
12 V DC±10% |
|
|
Lightning protection |
Support |
|
|
Power Consumption |
4W |
|
|
Working Humidity |
Relative humidity less than 90% |
|
|
Operating Temperature |
-20°C to [$add]50°C (- 14°F to 122°F ) |
|
|
Storage Temperature |
-40°C to [$add]60°C ( -40°F to 140°F ) |
|
|
Model number |
MP-L2QH401F-A |
|
|
Camera |
|
|
|
Image Sensor |
1/3’’ CMOS Image Sensor |
|
|
Resolution |
2688(H)x1520(V)@15/25/30fps 1920*1080@25/30fps |
|
|
Effective Pixels |
2688(H)x1520(V) |
|
|
Resolution |
AHD/HDCVI/HDTVI:4.0Mega Pixel,4MP, CVBS: 960H |
|
|
Video Standard |
PAL/NTSC（Switch by OSD） |
|
|
Synchronization |
Inter-Sync |
|
|
Night Vision |
|
|
|
30-35M |
30-35M |
|
|
IR Led |
3PCS Array IR LEDs |
|
|
IR Power On |
CDS Auto Control |
|
|
Features |
|
|
|
Day & Night mode |
External control（Default）/AUTO/COLOR / B&W |
|
|
UTC |
Support |
|
|
OSD Support |
Support |
|
|
WDR: |
Digital WDR |
|
|
Min. Illumination |
0.05Lux@(F1.2,AGC ON) |
|
|
S/N Ratio |
≥38dB |
|
|
Electronic Shutter |
Auto |
|
|
White Balance |
Auto/Manual |
|
|
AGC |
Default |
|
|
Video Output |
AHD/TVI/CVI/CVBS Switch by key cable |
|
|
Dynamic Range |
65db |
|
|
DNR |
2D DNR |
|
|
Language |
Chinese/ English |
|
|
Lens |
|
|
|
Focal Length |
3.6mm |
|
|
Lens Mount |
M12 |
|
|
Lens Type |
Fixed,5.0MP |
|
|
Angle of View |
Horizontal: 79.2° Vertical：56.5° |
|
|
General |
|
|
|
Type |
Outdoor Metal Bullet Camera(IP66) |
|
|
Video Interface |
BNC |
|
|
Power Supply |
12 V DC±10% |
|
|
Lightning Protection |
Support |
|
|
Power Consumption |
4W |
|
|
Working Humidity |
Relative humidity less than 90% |
|
|
Operating Temperature |
-20°C to [$add]50°C (- 14°F to 122°F ) |
|
|
Storage Temperature |
-40°C to [$add]60°C ( -40°F to 140°F ) |
|
What is the price range of MAPESEN MP-L2QH800F-A 4K 4 IN 1 IR Bullet Camera in Bangladesh?
The price of MAPESEN MP-L2QH800F-A 4K 4 IN 1 IR Bullet Camera in Bangladesh from BDT 5,500 to BDT 15,500. Germany Computer and Telecom Limited-GCTL offer Best Price in Bangladesh for MAPESEN IP CAMERA for any single need. We provide MAPESEN IP Camera with all available technologies.
What is our after-sales service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
| Call for Price | Yes |
|---|---|
| Brand | Mapesen |
| case_type | Bullet |
| ir_distance | 31-50 Meter |
| ir_led | 3-20 IR LED |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 4K |
| technology | AHD |
| weather_protection | For Outdoor |
