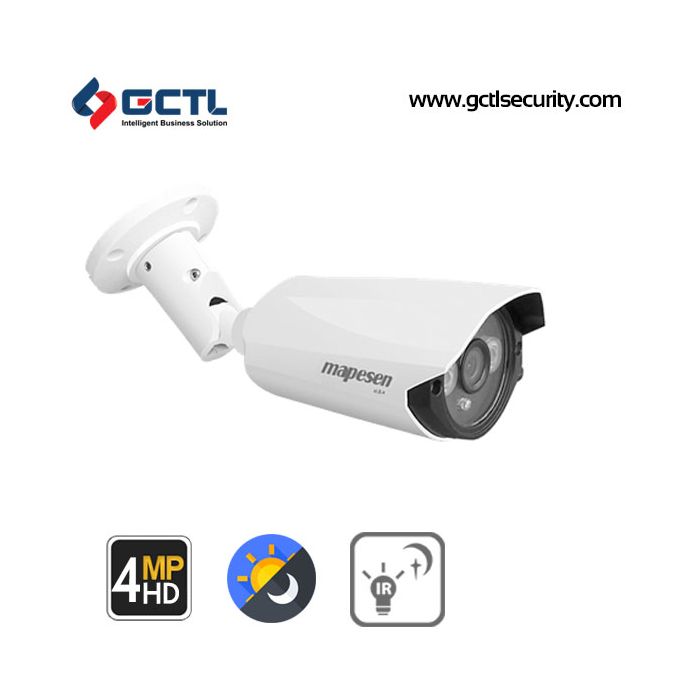

MAPESEN MP-L2QH503F-A HD 4 IN 1 IR Bullet Camera
MAPESEN 5MP Network Bullet Camera
Brand: MAPESEN
Model: MP-L2QH503F-A
Image Sensor: 1/2.9” COMS Sensor
Image Resolution: 2560×1920
Infrared Distance: 30-35M
IR LED: 3PCS Array IR LEDs
Best CCTV Camera price in Bangladesh
Call for Discount / Price Match policy
MAPESEN MP-L2QH503F-A 5MP Pro Network Bullet Camera
A powerful 5-megapixel network bullet camera with H.265/H.264 compression, DWDR, 3D-DNR and IP67 outdoor housing, ideal for professional CCTV installations.
Key Features
-
High resolution: supports up to 5 MP image capture for superior detail in surveillance scenes.
-
Efficient video compression: H.265 & H.264 switchable for reduced bandwidth and storage.
-
Advanced image enhancement: Digital WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction) and BLC (Back-Light Compensation) ensure clear images in challenging light conditions.
-
Low illumination performance and plug-and-play network configuration via ONVIF compatible interface.
-
Robust and weather-proof housing: metal bullet design with IP67 rating for outdoor installations.
-
Lightning protection and strong surge resistance (6 kV rating) to ensure reliability in harsh environments.
Technical Specifications
|
Specification |
Details |
|
Model |
MP-L2QH503F-A |
|
Maximum Resolution |
Up to 5 MP (e.g., 2592 × 1944) |
|
Video Compression |
H.265 / H.264 switchable |
|
Image Enhancement |
DWDR, 3D DNR, BLC |
|
Lens & Field of View |
Fixed / typical such as 3.6 mm (varies by specific variant) |
|
Minimum Illumination |
~0.01 Lux @ F1.2 (color), 0 Lux with IR on |
|
IR Distance |
Approx. 30-35 m (for network bullet variant) |
|
Housing |
Metal bullet type, outdoor rated |
|
Weather-proof Grade |
|
|
Power Supply |
DC12 V ±10% (some variants support PoE) |
|
Operating Temperature & Humidity |
–30 °C to 85 °C; 10%–95% non-condensing |
|
Network Interface |
1× RJ-45 10/100 Mbps Ethernet port |
|
ONVIF |
ONVIF 2.x compatible |
|
Surge / Lightning Protection |
6 kV (typical for this series) |
| Call for Price | Yes |
|---|---|
| Brand | Mapesen |
| case_type | Bullet |
| ir_distance | 31-50 Meter |
| ir_led | 3-20 IR LED |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 5 Mega Pixel |
| technology | AHD |
| weather_protection | For Outdoor |
