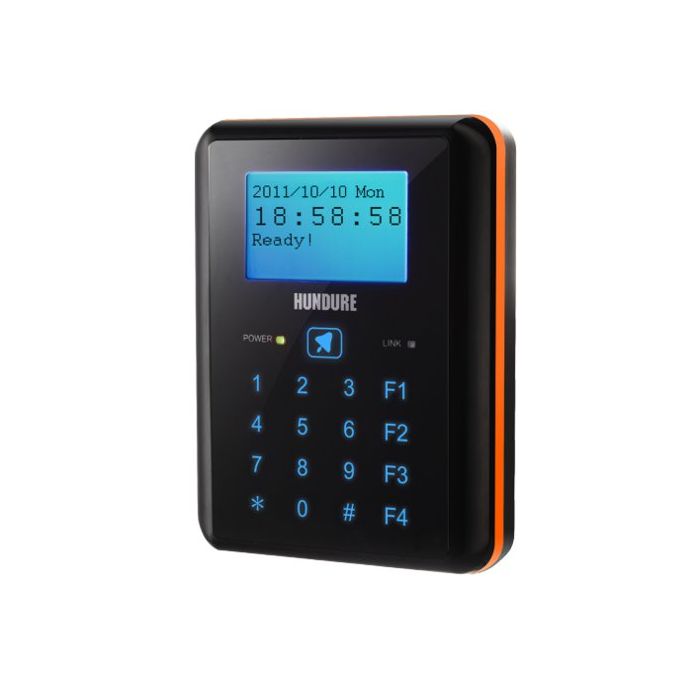

Hundure RAC-960PE Door RFID Access Control Time Attendance Device
Short Details:
Display: 128 x 64 Dot. Graphic Display with backlight.
Card Capacity: 40,000 Max
Log Capacity: 100,000.
Authentication Type: Card+ Password
Keypad: 17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad).
Communication Interface: Built-in RS-485 & TCP / IP
Hundure RAC-960PE Door RFID Access Control Time Attendance Device Price in Bangladesh
- Bell key design. Suit for various location.
- Casing tamper proof detection and door tampers alarm.
- Support swipe card and swipe card with pin codes enter modes.
- The memory of the standard model is 40,000 cardholders (max) and 100,000 events.
- Unique ID or Block read format supported. (RAC-960PM V2.0)
- Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
- Built-in RS-485 & TCP / IP communication interface to PC.
- Blacklist and Duress card/code setting. When door opened in the emergency, the controller will send signal to control center at the same time for tracing and rescue.
- Programmable disarm code and able set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid intrusion in and has self security.
- Provide 32 working shifts and 32 siren output. LCD will display current shift and activate alarm. Provide 100 holiday schedules per year.
- Able to connect external slave reader, And support anti-pass back to every single door.
- Provide 128 time zones and time schedules, 8 time conditional unlock door schedules. (per week) Display name on the LCD screen after swiped card. Function keys of access control and shifts which are convenient to personnel to generate time attendance reports.
- On-board lithium battery ensures data storage can reach up to 1 year upon power outage.
- Conforms to ISO 14443A standard; supporting Mifare card. (RAC-960PM V2.0)
Detaled Specifications :
|
Model No. |
RAC-960PE V2.0 |
RAC-960PM V2.0 |
|
CPU Processor |
32 Bits |
|
|
Read Format |
EM (125 KHz ) |
MI fare (13.56 MHz) |
|
Read Range |
8-10 cm (max) |
3-5 cm (max) |
|
Slave Reader |
T2 or Wiegand (1 Set) |
|
|
Input Ports |
3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
|
|
Output Ports (Built-in) |
Relay x 1 (Door Lock or Bell) |
|
|
Output Ports (External) |
O.C. Output x 2 (Door Lock / Alarm or Siren, external ACU-30) |
|
|
Cardholders |
40,000 (max) |
|
|
Events |
100,000 |
|
|
LED Indicator |
Power / Comm. |
|
|
LCD Display |
128 x 64 Dot. Graphic Display with backlight |
|
|
Keypad |
17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad) |
|
|
Real Time Clock |
Yes |
|
|
Beep Tone |
Buzzer |
|
|
Water-proof |
IP 65 |
|
|
ID or IP Setting |
Command setting by keypad |
|
|
Power Input |
DC 12V / 1A |
|
|
Current Consumption |
500mA. (max. excluding slave reader) |
|
|
Comm. Interface |
RS-485 / TCP/IP |
|
|
Comm. Baudrate |
RS-485：9,600/19,200 bps-N-8-1, TCP/IP：10/100 Mbps |
|
|
Operating Temp. |
0˚C~ 55˚C / 32˚F~ 131˚F |
|
|
Relative Humidity |
20% ~ 80% (Non-condensing) |
|
|
Dimension |
130mm(L) x 100mm(W) x 27mm(H) |
|
