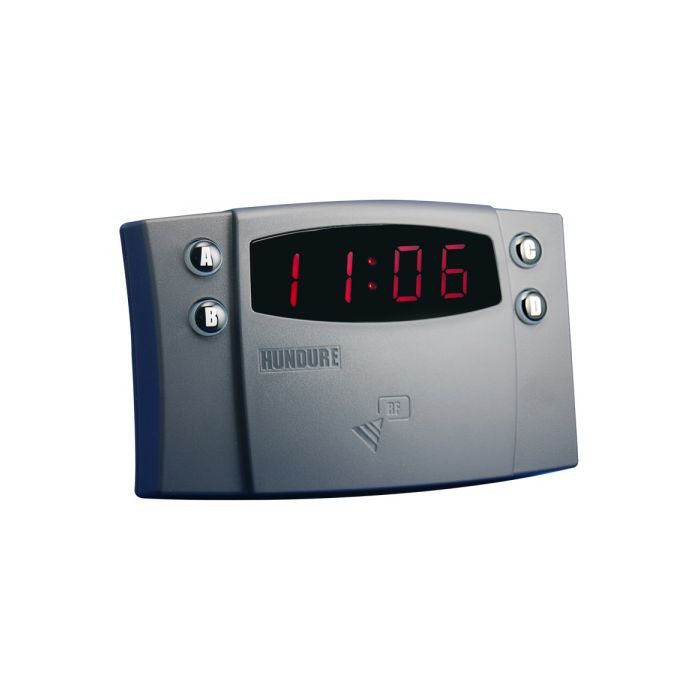

Hundure HTA830 RFID Time Attendance Access Control System
HTA-830/840 Series Time Attendance Access Control
16 Duty Timetable.
32 sets siren output.
Memory full warning.
Suitable for chains and enterprises.
Built-in TCP/IP communication interface to PC.
Watchdog function ensures device free from halting.
At least 60 days data storage in case of power outage.
Hundure HTA830 RFID Time Attendance Access Control System Price in Bangladesh
- 16 Duty Timetable.
- 32 sets siren output.
- Memory full warning.
- Suitable for chains and enterprises.
- Built-in TCP/IP communication interface to PC.
- Watchdog function ensures device free from halting.
- At least 60 days data storage in case of power outage.
- Cope with seasonal time change - daylight saving control.
- Simple, reliable & easily installed, first time set up in 3 minutes.
- Follows your usual practice - auto or manual clock in / clock out.
- Invalid & re-swiped cards off-the-record saves memory capacity.
- Auto scheduling for data collection, time synchronization, valid card download.
- RTC (Real Time Clock) ensures accurate time regardless of power outage.
- Dynamic control of memory up to 15,000 cardholders (max), 40,000 transaction
data. - Visual LED for display of time, card number, communication mode, swiped card indication.
- PoE (Power Over Ethernet) for HTA-840, eliminates serial cable material & installation, power adapter - significant cost saving.
Product Specification
|
Model No. |
HTA-830 |
HTA-840 |
|
Cardholders/Events |
15,000 / 40,000 (max) |
|
|
Keypad |
Duty switch by A, B, C, D |
|
|
Output Ports |
1 Relay (Siren / Door Lock) |
|
|
LED Indicator |
Visual LED for display of time, Swiped card indication (last 4 digits), Comm. x 1 |
|
|
Real Time Clock |
Yes |
|
|
Beep Tone |
Buzzer |
|
|
IP Setting |
Software |
|
|
Read Format & Range |
EM (125 KHz ) 8~10cm |
|
|
Power Input |
DC 12V / 1A |
Power PoE HUB |
|
Power Consumption |
500mA (max.) |
|
|
Comm. Interface |
TCP/IP |
TCP/IP (PoE) |
|
Comm. Baudrate |
10/100 Mbps |
|
|
Operating Temp. |
-10° C ~ 55° C / 14° F ~ 131° F |
|
|
Relative Humidity |
20% ~ 80%(Non-condensing) |
|
|
Dimension |
160mm(L) x 100mm (W) x 40mm (H) (excluding base) |
|
|
Weight (Device) |
400g |
|
