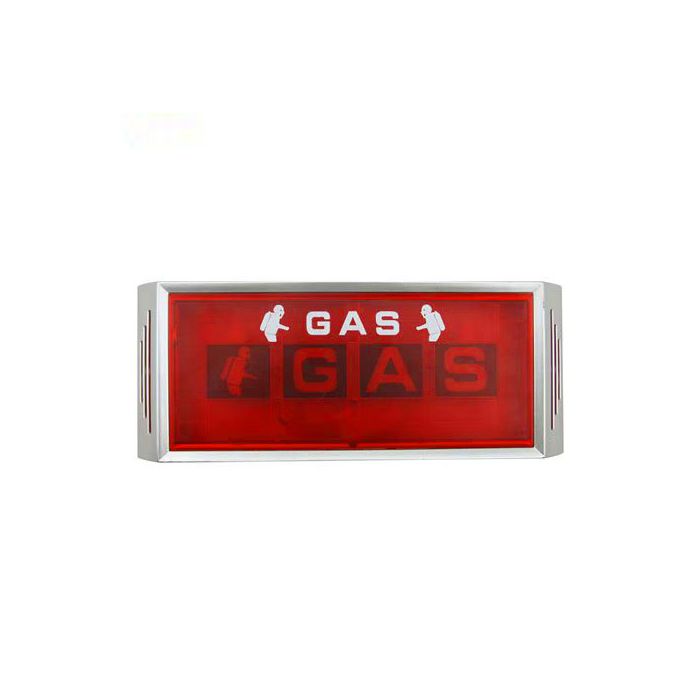

Gas Releasing Warning Sign Indicator

Gas Releasing Warning Sign Indicator

The Gas Releasing Warning Sign Indicator is a vital safety accessory for fire suppression and gas-extinguishing systems, designed to display a flashing visible message (GAS IS RELEASING – DO NOT ENTER) when the system activates. Supplied for Bangladesh installations, it works with 24 V AC/DC control panels, features a flashing period of ~1.2–1.5 seconds, and is suited for server rooms, data centres, generator rooms, warehouses and retail back-rooms.

Key Features

• Enables clear, high-visibility warning at the entrance to protected zones during gas discharge, enhances evacuation safety and regulatory compliance.


• Works with non-polarised 24 V AC/DC power and draws low current (~≤ 70 mA @ 24 V) to integrate easily into existing suppression systems.


• Flashing LED visual indicator with flash period ~1.2-1.5 s for immediate attention when the system triggers.


• Designed for automatic system integration, interfaces with gas-extinguishing control panels, module input/output or loop wiring for reliable operation.


• Rated for indoor use in a wide temperature operating range (approx. -10 °C to +50 °C) and up to 95 % relative humidity (non-condensing) — suitable for Bangladesh’s environment.


• Lightweight design (≈100 g for model AW-GRS2158) and compact mounting footprint, convenient for installation above doors/entrances.


Technical Specification

Application & Usage

Install this indicator at entrances of protected areas where gas suppression systems operate (e.g., server rooms, warehouse racks, clean rooms, retail back-stock). When the gas suppression system activates, the panel flashes and displays warning text to prevent personnel from entering and ensure safety compliance. It is a critical component for fire safety and building code adherence in Bangladesh’s commercial, industrial and retail environments.
