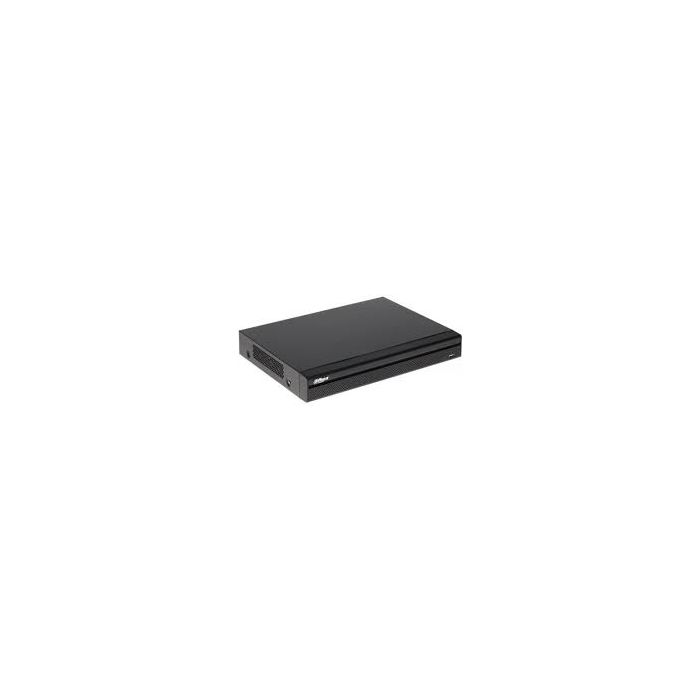

Dahua XVR1B08H 08 Channel XVR ( 5 MP Supported )
Features and Key points :
H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Long transmission distance over coax cable
• Supports 1 SATA HDD, up to 6TB
• Smart Search and Intelligent Video System
• Installation with expert Technician
• Best price in Bangladesh
• Call for Discount / Price Match policy
Buy Dahua XVR1B08H 08 Channel XVR ( 5 MP Supported ) with best Price in Bangladesh
DAHUA XVR1A08 Digital Video Recorder supports HDCVI/AHD/TVI/CVBS/IP video inputs with H.264 video compression. This 8 Channel penta-brid recorder has maximum full HD resolution with 20/40Mbps Incoming Bandwidth. The storage capacity of 1TB to 6TB provides full freedom of usability. Long Distance Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P. Smart SearchThis function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.Perfect Image QualityHigh performance chip provides perfect image quality with better color reproduction.P2PMonitor at anytime and anywhere. Easily and conveniently mange the device.
Use high quality video recorder for the ultimate security system available at Germany Computer & Telecom Ltd. Preserve your precious recording in this best priced XVR. Order online and have the delivery any place in Bangladesh.
Key Features of Dahua XVR1B08H 08 Channel XVR
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6 channels IP camera inputs, each channel up to 6MP; Max 24 Mbps incoming bandwidth
- Long transmission distance over coax cable
- Supports 1 SATA HDD, up to 6TB
- Smart Search and Intelligent Video System
Dahua XVR1B08HSpicification :-
|
Model |
Dahua XVR1B04H |
|
Type |
04 Channel XVR |
|
Video Input Channel (BNC) |
4 Channel, BNC |
|
Max HDD Support(GB,TB) |
up to 6TB capacity |
|
Video Compression/Format |
H.265+, H.265, H.264+, H.264 |
|
Video Recording Res. |
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
|
Video Output (VGA) |
1920 x 1080, 1280 x 1024, 1280 x 720 |
|
Video Output (HDMI) |
1920 x 1080, 1280 x 1024, 1280 x 720 |
|
Audio Input Channel (RCA) |
1/1, RCA |
|
Two way Audio |
Reuse audio in/out, RCA |
|
Network Interface (RJ45) |
1 RJ-45 Port (100M) |
|
XVR Supported |
Yes |
|
USB Port |
2 x USB2.0 |
|
Number HDD interface (SATA) |
1 SATA Port |
|
Audio Output Channel |
1/1, RCA |
|
Audio Compression |
AAC(only for the 1st channel), G.711A, G.711U, PCM |
|
Backup Stroge |
USB Device/Network |
|
Power Supply |
DC12V/1.5A |
|
Dimensions |
197 x 192 x 41mm |
|
Warranty |
1 year |
|
Made in/ Assemble |
China |
|
Country Of Origin |
China |
HD Cameras Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | No |
|---|---|
| Alarm in/out | Yes |
| audio_input | N/A |
| Brand | Dahua |
| esata | N/A |
| HDD | 1 SATA |
| Support_resolution | 5 Mega Pixel |
| technology | Hybrid |
| video_chanel | 4 Port |
