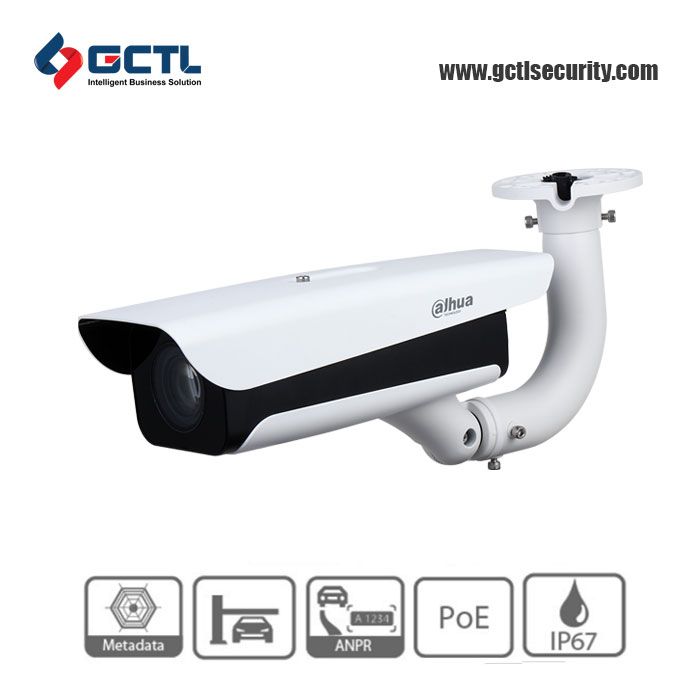

Dahua ITC237-PW6M-(IR)LZF1050-B Long Range Access ANPR Camera

Be the first to review this product

$0.00

In stock

SKU

DLAAC-ITC237

Best Product Features:

Embedded with LPR algorithm inside the camera.
Support plate cutout, overview picture snapshot and video recording.
Embedded with White list database, control the barrier Gate.
Powerful motorized lens and IR light, ideal for monitor ANPR distance.
Wide working temperature, IP66 and superior performance for outdoor applications.
Ultra-low light Starlight and true WDR technology.

Details

Dahua 2MP Long Range Access ANPR Camera:

CMOS image sensor
Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG
Integrated design, IP67

Image Processing

Illuminator

6 IR illuminators (brightness adjustable)

Image Sensor

1/1.8'' CMOS

Image Resolution

1920 × 1080 (OSD black strip excluded)

Video Resolution

Main stream: 1080P (1920 × 1080) / 720P (1280 × 720)
Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream: (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate

H.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps

Video Encoding

H.264B/H.264M/H.264H/H.265/MJPEG

Image Encoding

JPEG

Noise Reduction

3DNR

White Balance

Full auto; auto color temperature range; customized color temperature

Electronic Shutter

1/50–1/10000, auto or manual

Wide Dynamic Range

96db

Edge Enhancement

Yes

Exposure Mode

Full auto; customized auto; customized

Iris

Auto iris (W:1.3–T:2.3)

Function

Trigger Mode

Video detection; I/O coil; video detection and I/O coil

Shutter

Single shutter

Storage

1 built-in TF card port. Kingston 16G, 32G and 64G; Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G

Image Tampering Prevention

Yes. Video/picture can be checked through watermark and verification

Max Illumination Distance

30 m (98.43 ft)

Capture Range

8 m–30 m (26.25 ft–98.43 ft)

Detected Lane Width

6 m –7 m (19.69 ft–22.97 ft)

Min Ambient Illuminance

0.002 Lux. Illuminator is designed with the camera for illumination

Max Speed that the Camera Detects

60 km/h

Alarm Event

Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access

Security Mode

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

ANR (Automatic Network Replenishment)

Yes. Platform/FTP

Auto Register

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥99%

Vehicle Recognition

Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without plate. Vehicle recognition rate ≥95%

Video Metadata

Yes

Intelligent Track Frame

Intelligent frame display. Supports displaying vehicle plate and vehicle path

Ports

Lens

Lens in the camera module

Analog Output

Ethernet Port

1 100/1000M Ethernet port (RJ45)

RS-485 Port

RS-232 port

Alarm Input

3, optocoupler input (switch quantity)

Alarm Output

3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers

Audio Input

1-channel RCA port

Audio Output

1-channel RCA port

General

Power Supply

12V DC, 24V AC, PoE+

Power Consumption

< 20W

Working Temperature

−30°C to +65°C (−22°F to +149 °F)

Working Humidity

10%–90% (no condensation)

Housing

Metal and plastic

Protection Grade

IP67

Dimensions (L×W×H)

515.2mm×124.7mm×183.2mm (20.28''×4.91''×7.21'')

Net Weight

1.9kg (4.19lb)

Gross Weight

3.3kg (7.28lb)

Installation

Universal joint installation

Lens

10mm–50mm (0.39''–1.97'')

Certification

CE, FCC

Yes

RoHS

Yes

Designed for License Plates:

This camera uses a special high contrast image sensor which allows you to read number plates day or night. It als has the ability to recognize characters and turn them into text. This is stored on the on-board SD card. Characters can be searched afterwards and a snap shot of the vehicle is shown.

H.265 Encoding:

This camera is capable of encoding H.264 or H.265 streams. H.265 encoding will use half of the bandwidth to that of H.264 meaning that is requires half the disk space and half of the network bandwidth for the same quality image. When recording H.265 the NVR must alos support it.

Web Interface:

The easy-to-use web interface is fast and intuitive. Features likes video settings, SD card record and playback control, network information, motion detection as well as hundreds of other settings can all be done from here.

Mobile Phone Support:

All Dahua cameras and NVRs feature fully featured mobile apps. These are supported for iPhone and Android. Features include live view, playback, alarm monitoring, status monitoring, full remote setup and push alerts. Push alerts send notifications straight to your phone regarding motion detector other alarms.

Smart PSS:

Smart PSS (smart pro surveillance software) is a free camera management tool for PC or MAC that comes with all Dahua cameras. This allows 16CH or recording and playback on a PC or MAC. It allows alarm management and has multi-monitor support.
