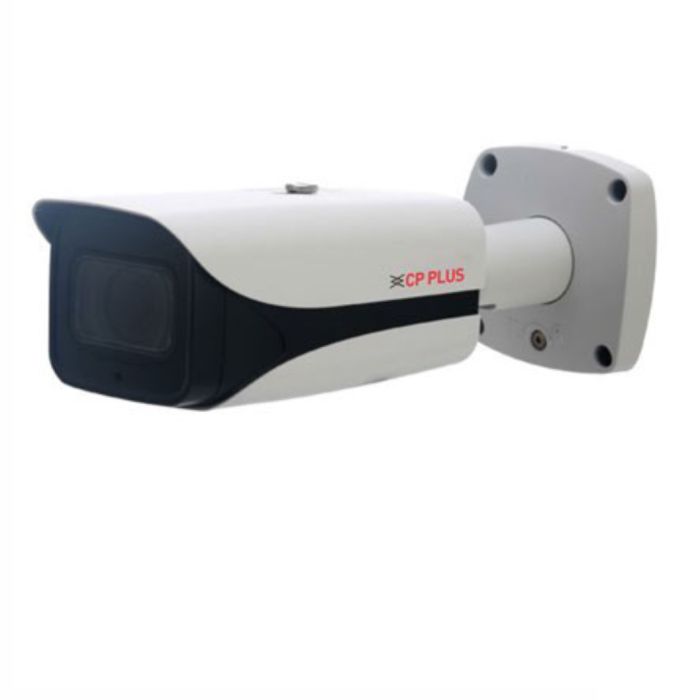

CP-PLUS CP-UNC-TE4K081ZL10E-VMD 4K WDR IR Network Bullet Camera
CP PLUS CP-UNC-TE4K081ZL10E-VMD Bullet Camera
Image Sensor: 1/2.5″ 8 MP Progressive Scan CMOS
Maximum Resolution: 3840 × 2160 (4K)
Lens: Motorised varifocal 7 – 35 mm
Day/Night Function: ICR Day/Night mode
IR Range: Up to ~100 metres
WDR / Noise Reduction: WDR, 3D-DNR, ROI, AWB, AGC
Video Encoding: H.265/H.265+ / H.264/H.264
Storage: microSD support (up to ~128 GB)
CP PLUS CP-UNC-TE4K081ZL10E-VMD 4K WDR IR Network Bullet Camera
The CP PLUS CP-UNC-TE4K081ZL10E-VMD is a premium 4K (8 MP) WDR IR network bullet camera designed for high-end surveillance in demanding environments. With motorised 7 – 35 mm lens, built-in IR for up to 100 metres, and rugged IP67 & IK10 rated housing, it delivers next-level clarity and durability for both outdoor and indoor security in Bangladesh.
Key Features
-
True 8 MP (3840×2160) resolution delivers ultra-HD detail for identification and monitoring.
-
Wide Dynamic Range (WDR) and advanced image enhancements including 3D-DNR, HLC/BLC, ICR for day/night performance.
-
Motorised varifocal lens (7 – 35 mm) allows flexible field-of-view adjustment and zoom for tailored coverage.
-
Infra-red illumination up to approximately 100 metres for reliable night-vision even in total darkness.
-
Rugged build-quality: IP67 (weatherproof) and IK10 (vandal resistant) housing suitable for tough outdoor conditions.
-
Advanced network encoding: H.265/H.264 triple-stream support for efficient bandwidth and storage usage.
-
Smart features supported: micro-SD recording (up to ~128 GB), ePoE/PoE power supply, mobile viewing via compatible apps
Technical Specification
|
Specification |
Details |
|
Image Sensor |
1/2.5″ 8 MP Progressive Scan CMOS (≈1.016 cm) |
|
Maximum Resolution |
3840 × 2160 (4K) at 15 fps; 2304×1296 at 25/30 fps |
|
Lens |
Motorised varifocal 7 – 35 mm |
|
Day/Night Function |
ICR Day/Night mode |
|
Minimum Illumination |
0.05 Lux @ F1.4 (Color, 1/3 s); 0.2 Lux @ F1.4 (Color, 1/30 s); 0 Lux with IR on |
|
IR Range |
Up to ~100 metres |
|
WDR / Noise Reduction |
WDR, 3D-DNR, ROI, AWB, AGC, BLC/HLC |
|
Video Encoding |
H.265/H.265+ / H.264/H.264+ triple-stream |
|
Storage |
|
|
Power Supply |
DC12V or ePoE (depending on model) |
|
Power Consumption |
< 12.95 W |
|
Operating Temperature |
-30 °C to +60 °C, ≤95% RH |
|
Weatherproof/Vandal Rating |
IP67 & IK10 |
|
Dimensions |
273.2 mm × 95 mm × 95 mm |
|
Weight |
Approximately 1.11 kg |
|
Network Protocols |
HTTP/HTTPS, TCP/IP, RTSP, SNMP, ONVIF etc. |
