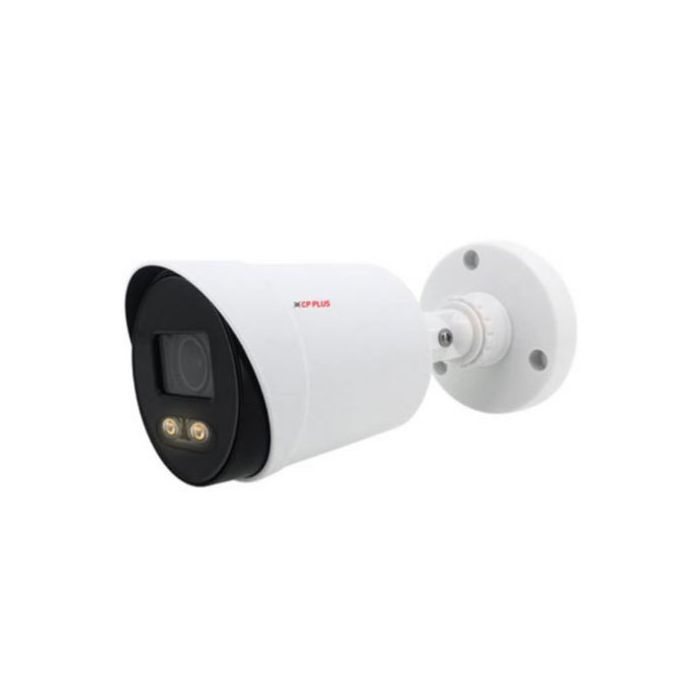

CP Plus CP-GPC-T24PL2-S 2.4MP Full HD IR Guard Bullet Camera
CP PLUS CP-GPC-T24PL2-S 2.4MP Bullet Camer
Image Sensor: 1/2.9″ 2.4 MP PS CMOS
Resolution: 2.4 MP full HD
Frame Rate: 25/30 fps at 2.4 MP
Lens: 3.6 mm fixed (6 mm optional)
Minimum Illumination Colour: 0.1 lux at F2.1 with AGC ON
IR / Illumination Range: 2 pcs 3600 K warm-LED + IR
WDR / Noise Reduction: DWDR, 2D/3D-DNR
CP PLUS CP-GPC-T24PL2-S 2.4MP Bullet Camera Bangladesh
The CP PLUS CP-GPC-T24PL2-S is a high-performance 2.4 MP Full HD “Guard+” bullet camera designed for outdoor surveillance in Bangladesh. With full-colour imaging even in low-light, 20-metre IR illumination, and robust weather-proof IP66 housing, it offers strong value for both home and commercial security setups.
Key Features
-
2.4 MP (≈2304×1296) resolution for crisp Full HD quality imaging.
-
1/2.9″ CMOS sensor with minimum illumination of 0.1 lux (colour) and 0 lux with IR.
-
Frame rate up to 25/30 fps at 2.4 MP resolution.
-
3.6 mm fixed lens (6 mm optional) giving a versatile field of view.
-
Dual warm-LED illumination (2 pcs 3600 K) with IR range of up to ~20 metres for full-colour night vision.
-
Wide dynamic range (DWDR), 2D/3D-DNR noise reduction, AWB, BLC, AGC—all enhancing image clarity under challenging lighting.
-
Weather-proof IP66 rated housing ensures reliable outdoor operation in varying Bangladeshi conditions.
-
Plug-and-play ease of installation with compatibility across multiple HD-analog formats (HD-TVI/AHD/CVI/CVBS) via “UNI+” technology.
Technical Specifications
|
Specification |
Details |
|
Image Sensor |
1/2.9″ 2.4 MP PS CMOS (0.8758 cm) |
|
Resolution |
2.4 MP full HD |
|
Frame Rate |
25/30 fps at 2.4 MP |
|
Lens |
3.6 mm fixed (6 mm optional) |
|
Minimum Illumination |
Colour: 0.1 lux at F2.1 with AGC ON; 0 lux with IR LED on |
|
IR / Illumination Range |
2 pcs 3600 K warm-LED + IR — up to 20 metres range |
|
WDR / Noise Reduction |
DWDR, 2D/3D-DNR |
|
Gain / White Balance |
AGC (Auto Gain Control), AWB (Auto White Balance), BLC |
|
Video Output |
HD-TVI / AHD / HDCVI / CVBS (UNI+ technology) |
|
Operating Temperature |
–20 °C to +60 °C (or up to +55 °C depending on variant) |
|
Weather/Waterproof Rating |
IP66 (dust & water resistant) |
|
Power Supply |
12 V DC ±10% |
|
Power Consumption |
Max. ~5 W with IR/LED active |
|
Dimensions (W×D×H) |
154 mm × 71 mm × 71 mm |
|
Weight |
Approx. 0.19 kg |
| Call for Price | No |
|---|---|
| Brand | CP Plus |
| case_type | Bullet |
| ir_distance | 21-30 Meter |
| ir_led | 21-30 IR LED |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 2 Mega Pixel |
| technology | HD CVI |
| weather_protection | For Indoor |
