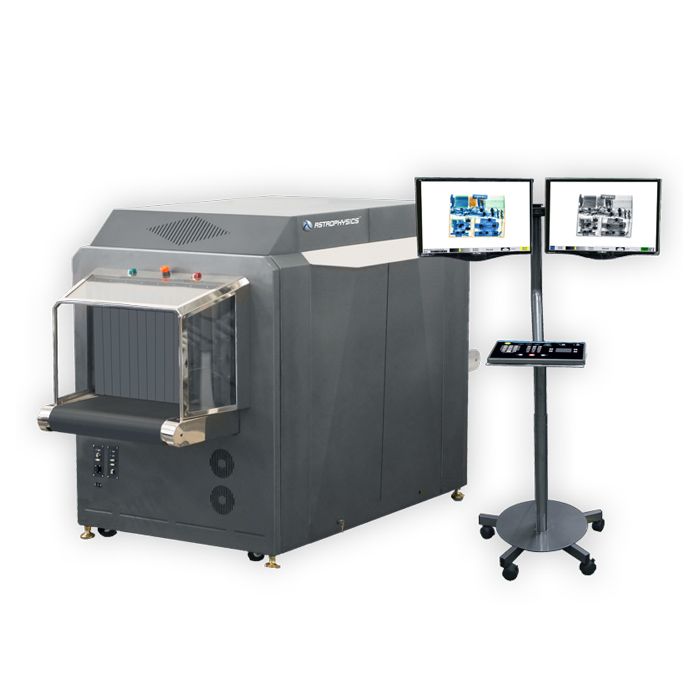

Astrophysics XIS-VI7 X Ray Baggage Scanner
Astrophysics XIS-VI7 X Ray Baggage Scanner
Brand : Astrophysics
Model : XIS-VI7
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
High-resolution images with 24-bit color
Enhanced material discrimination
Windows Operating System with Intel Core Processor
Real-time diagnostics
High-contrast image analysis
Astrophysics XIS-VI7 X Ray Baggage Scanner
The Astrophysics XIS-VI7 X-Ray Baggage Scanner is a state-of-the-art security inspection system designed for high-traffic checkpoints such as airports, government buildings, embassies, hotels, and logistics facilities. Featuring a large tunnel size of 700 mm × 500 mm, the XIS-VI7 offers powerful screening capabilities for small to medium-sized baggage, parcels and packages.
With Astrophysics’ advanced imaging software, this model delivers superior image clarity and material discrimination, helping operators identify threats such as weapons, explosives, and contraband with unmatched accuracy. Built for performance, reliability and compliance with global standards, the XIS-VI7 ensures safe, efficient and intelligent security screening operations.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
62.1 cm x 41.7 cm |
| Dimensions (LxWxH) |
274 cm x 120 cm x 153.3 cm |
| Support |
Screw jack leveling feet and heavy duty |
| Net Weight | 1202 kg (2650 lbs) |
| Shipping Weight | 1043 kg (2300 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 70 cm (27.5”) from Floor |
| Conveyor Capacity | 150 kg (330 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | 180kV, Operating at 165kV |
| Tube Current | 1.2 mA |
| Sensitivity | 38 AWG Typical, 36 AWG Standard |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration | 41 mm Typical, 39 mm Standard |
| Contrast Sensitivity | 24 Visible Levels, 4096 Gray Level |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 4 GB RAM |
| Storage Capacity | 500 GB HDD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1600 x 1200 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power |
120VAC: 20 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-VI7 X Ray Baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-Astrophysics XIS-VI7 X Ray Baggage Scanner Baggage Scanner in Bangladesh start from Tk 10,00,000 only. Buy Astrophysics Astrophysics XIS-VI7 X Ray Baggage Scanner from Dhaka at reasonable price in GCTL.
The Astrophysics XIS-VI7 X Ray Baggage Scanner is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the Astrophysics XIS-VI7 X Ray Baggage Scanner provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice
