Astrophysics XIS-7858 X-ray Airport Baggage Scanner
Astrophysics XIS-7858 X-ray Airport Baggage Scanner
Brand : Astrophysics
Model : XIS-7858
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Minimal footprint
High-resolution images with 24-bit color
Enhanced material discrimination
Windows Operating System with Intel® Core™ Processor
Real-time diagnostics
High-contrast image analysis
Astrophysics XIS-7858 X-ray Airport Baggage Scanner

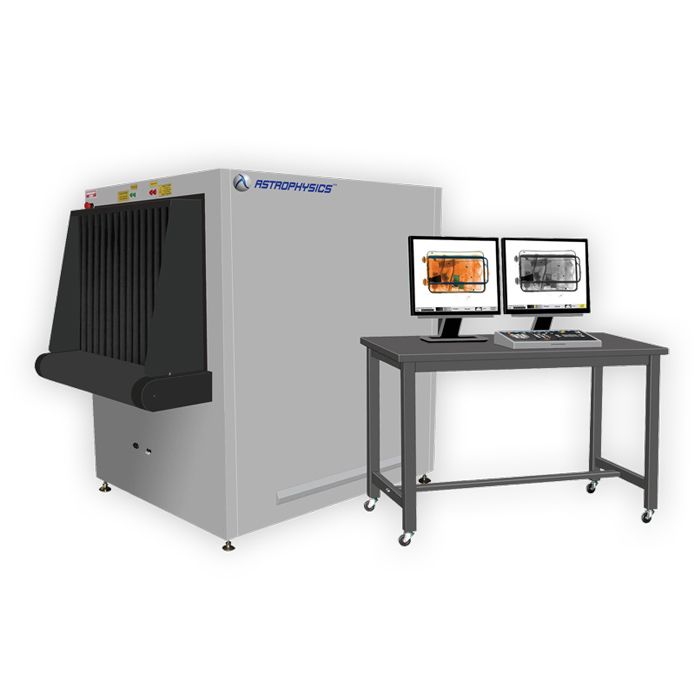

The XIS-7858 is a uniquely engineered X-Ray Inspection System with a tunnel size of 78 x 58.3 cm. The XIS-7858 is designed to provide maximum object screening with a minimized system profile. The XIS- 7858 is well-suited for hotels, corporate sites, government offices, mailrooms, and airports.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
78 cm x 58.3 cm |
| Dimensions (LxWxH) |
188 cm x 103 cm x 139.4 cm |
| Shipping Dimensions (LxWxH) |
198.6 cm x 113 cm x 249.4 cm |
| Net Weight | 587 kg (1294 lbs) |
| Shipping Weight | 861 kg (1898 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 69.1 cm (27.2”) from Floor |
| Conveyor Capacity | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.2 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 39 mm Typical, 37 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 4 GB RAM |
| Storage Capacity | 1TB HDD, 240 GB SSD |
| Display Type | Dual 19” Flat Monitor |
| Display Resolution | 1280 x 1024 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 39 mm Steel Typical, 37 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-7858 X-ray Airport Baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-7858 Baggage Scanner in Bangladesh start from Tk 10,50,000 only. Buy Astrophysics XIS-7858 from Dhaka at reasonable price in GCTL.
The XIS-7858 is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-7858 provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
