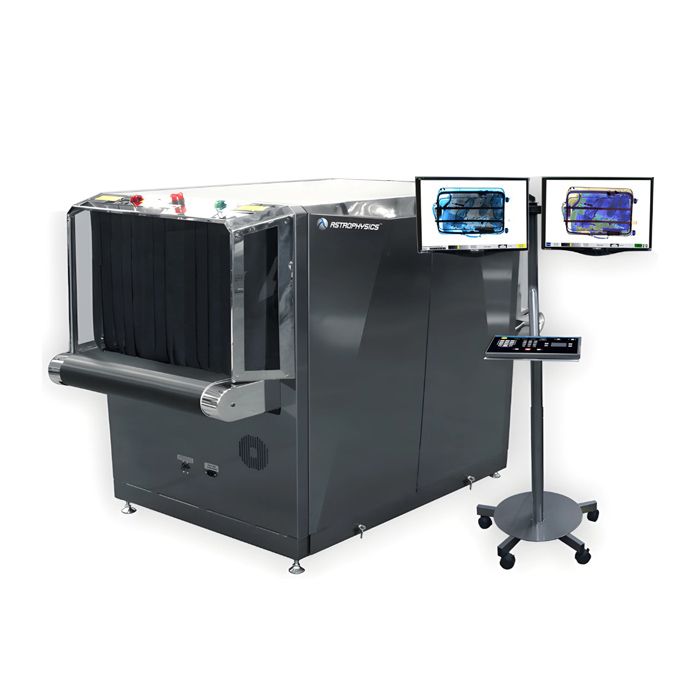

Astrophysics XIS-7858 VI X-ray Baggage Scanner
Astrophysics XIS-7858 VI X-Ray Inspection System
Brand : Astrophysics
Model : XIS-7858 VI
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Combines the VI Series performance
Larger screening capacity
Dynamic look with a stainless steel frame panels
Mobile monitor stand
Impressive suite of software and hardware advancements
Unrivaled image manipulation and quality
Astrophysics XIS-7858 VI X-ray Baggage Scanner
The 7858 VI combines the VI Series performance with a larger screening capacity. The 7858 VI has a dynamic look with a stainless steel frame panels and a Mobile Monitor Stand, complimented by an impressive suite of software and hardware advancements for unrivaled image manipulation and quality.
With its ideal design, the 7858 VI maximizes baggage and small parcel screening with a minimized system profile. Matched with VI Series technology and a standard 180 kV generator, the 7858 VI boasts heightened material identification and increased throughput. The 7858 VI is your solution to sleek screening of larger objects with fast and accurate threat detection.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
77.5 cm x 58.3 cm |
| Dimensions (LxWxH) |
188 cm x 103 cm x 139.4 cm |
| Support |
Screw jack leveling feet and heavy duty |
| Net Weight | 1202 kg (2650 lbs) |
| Shipping Weight | 1043 kg (2300 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 70 cm (27.5”) from Floor |
| Conveyor Capacity | 150 kg (330 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | 180kV, Operating at 165kV |
| Tube Current | 1.2 mA |
| Sensitivity | 38 AWG Typical, 36 AWG Standard |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration | 41 mm Typical, 39 mm Standard |
| Contrast Sensitivity | 24 Visible Levels, 4096 Gray Level |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 4 GB RAM |
| Storage Capacity | 500 GB HDD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1600 x 1200 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power |
120VAC: 20 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-7858 VI X-ray baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-7858 VI Baggage Scanner in Bangladesh start from Tk 10,00,000 only. Buy Astrophysics XIS-7858 VI from Dhaka at reasonable price in GCTL.
The XIS-7858 VI is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-7858 VI provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
