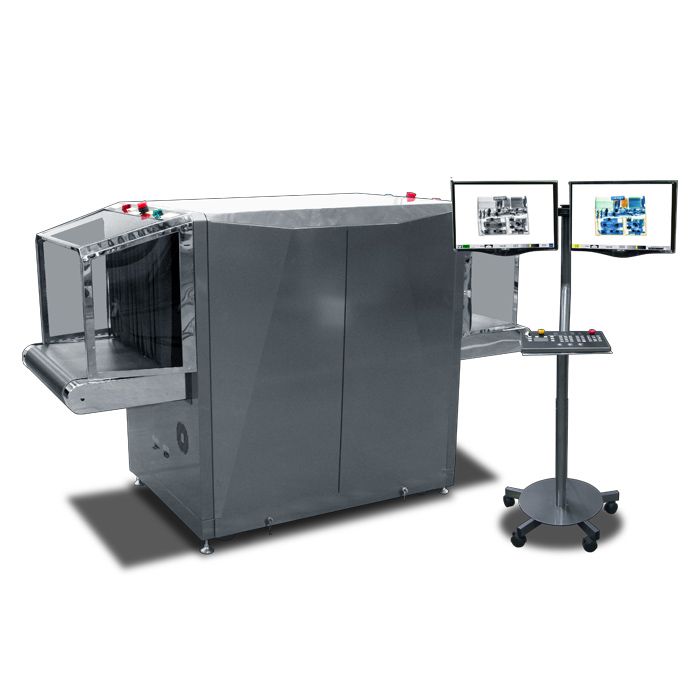

Astrophysics XIS-6545VI X-ray Baggage Scanner Machine
Astrophysics XIS-6545VI X-ray Baggage Scanner Machine
Brand : Astrophysics
Model : XIS-6545VI
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
High-resolution images with 24-bit color
Enhanced material discrimination
Windows Operating System with Intel Core Processor
Real-time diagnostics
High-contrast image analysis
Undoubtedly the high performance system
Upgraded frame with stainless steel accents, tunnel extensions
Service friendly paneling
Complete with a Mobile Monitor Stand
Astrophysics XIS-6545VI X-ray Baggage Scanner Machine
The 6545VI is undoubtedly the highest performance system in its class. The 6545VI has an upgraded frame with stainless steel accents, tunnel extensions, and service friendly paneling, complete with a Mobile Monitor Stand for a sleek new aesthetic.
With advanced VI software, dual 21.5” monitors and a 180 kV generator, the 6545VITM generates high definition images with unparalleled clarity and penetration.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
65.1 cm x 45.4 cm |
| Dimensions (LxWxH) |
218.8 cm x 95.3 cm x 130.7 cm |
| Support |
Screw jack leveling feet and heavy duty |
| Net Weight | 520 kg (1145 lbs) |
| Shipping Weight | 710 kg (1565 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 73.4 cm (28.9”) from Floor |
| Conveyor Capacity | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | 180kV, Operating at 165kV |
| Tube Current | 1.2 mA |
| Wired Resolution | 41 AWG Typical, 40 AWG Standard |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration | 43 mm Typical, 41 mm Standard |
| Contrast Sensitivity | 24 Visible Levels, 4096 Gray Level |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 4 GB RAM |
| Storage Capacity | 500 GB HDD |
| Display Type | Dual 21.5” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power |
110VAC +/- 10% 50/60Hz, 15 Amp Max 220 VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Automatic Voltage Regulator (AVR), 600VA |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-6545VI X-ray Baggage Scanner Machine Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545VI Baggage Scanner in Bangladesh start from Tk 10,00,000 only. Buy Astrophysics XIS-6545VI from Dhaka at reasonable price in GCTL.
The XIS-6545VI is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-6545VI provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
