Astrophysics XIS-6545DVS X-ray Luggage Scanner
Astrophysics XIS-6545DVS X-ray Luggage Scanner
Brand : Astrophysics
Model : XIS-6545DVS
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual Image Generators
Enhanced Material Discrimination
High-Contrast Image Analysis
High Image Resolution with 24-Bit Color
Windows Operating System with Intel® Core™ Processor
Real-Time Diagnostics

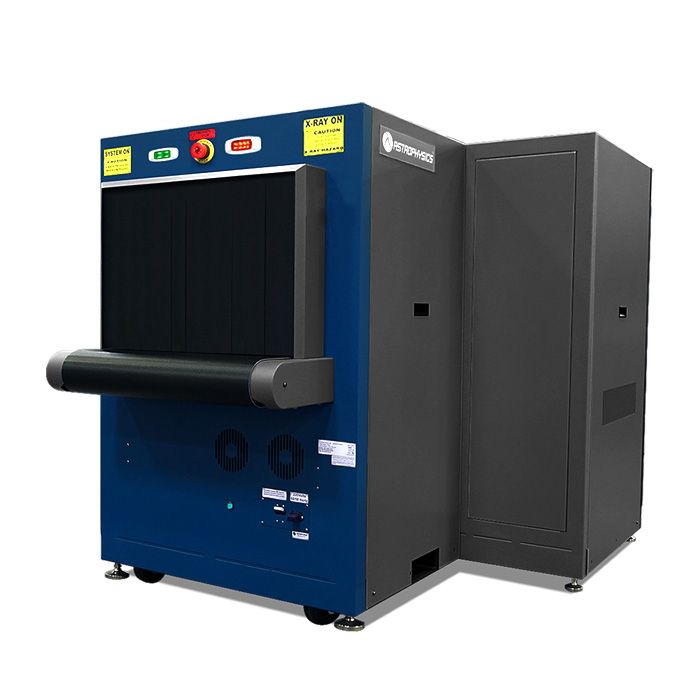

Astrophysics XIS-6545DVS X-ray Luggage Scanner
The XIS-6545DVS is an advanced X-Ray Inspection System (XIS) with dual imaging generators that allow operators to examine objects from the side and underneath simultaneously, reducing the effect of blind spots and obstructions. Each view can be inspected separately with Astrophysics’ multi-colored, high-contrast screening software.
The XIS-6545DVS makes it possible to locate threats in bags and packages with better speed and accuracy. Its high-quality imaging enables higher throughput, with less time spent on false alarms and manual inspections.
The XIS-6545DVS is a dual-view X-ray Inspection System with tunnel dimensions measuring 65.0 cm x 45.1 cm (25.6” x 17.8”). Designed for high threat security locations, the XIS-6545DVS is ideal for airports, government facilities, ports, hospitals and banks.
The XIS-6545DVS features dual X-ray generators that create two different image perspectives that can be manipulated independently. By utilizing dual-view technology alongside Astrophysics’ 6 Color Imaging and Atomic Z-number Measurement, the XIS-6545DVS provides unparalleled threat identification for any security mission.
Ultimately, the XIS-6545DVS maximizes throughput and enhances detection in locations where efficiency and high security screening is crucial.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
65.0 cm x 45.2 cm 25.6” x 17.8” |
| Dimensions (LxWxH) |
204.0 cm x 128.2 cm x 135.0 cm 80.3” x 50.5” x 53.1” |
| Shipping Dimensions (LxWxH) |
228.6 cm x 139.7 cm x 165.1 cm 90.0” x 55.0” x 65.0“ |
| Net Weight | 975 kg (2150 lbs) |
| Shipping Weight | 1100 kg (2425 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 71.9 cm (28.3”) from Floor |
| Conveyor Capacity | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.2 mA |
| Wire Resolution | 41 AWG Typical, 40 AWG Standard |
| Steel Penetration | 41 mm Typical, 39 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 21.5” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation and ports and border sites worldwide |
Astrophysics XIS-6545DVS X-ray Luggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545DVS Baggage Scanner in Bangladesh start from Tk 10,50,000 only. Buy Astrophysics XIS-6545DVS from Dhaka at reasonable price in GCTL.
The XIS-6545DVS is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-6545DVS provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
| Call for Price | Yes |
|---|---|
| Brand | Others |
