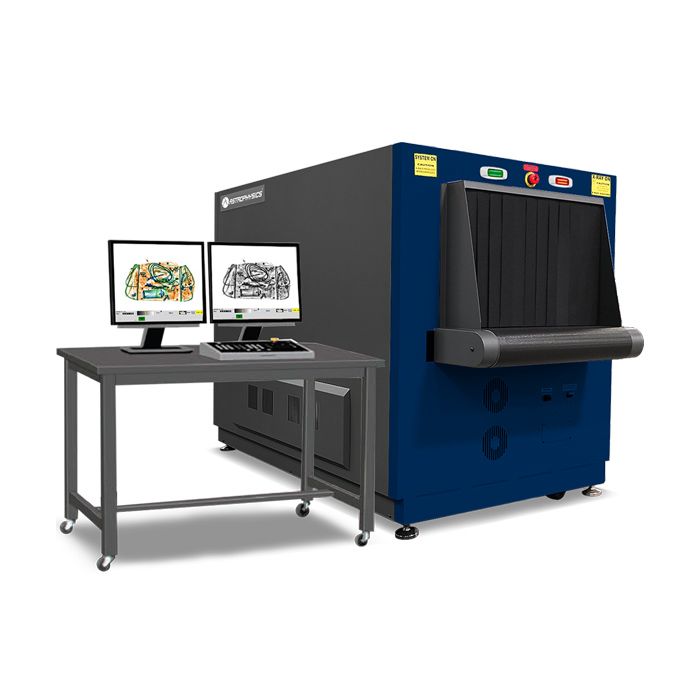

Astrophysics XIS-6545DV X-ray Baggage Scanner
Astrophysics XIS-6545DV X-ray Baggage Scanner
Brand : Astrophysics
Model : XIS-6545DV
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual-view imaging
High-resolution images with 24-bit color
Enhanced material discrimination
Windows Operating System with Intel Core Processor
Real-time diagnostics
High-contrast image analysis
Astrophysics XIS-6545DV X-ray Baggage Scanner
The XIS-6545DV is an advanced x-ray Inspection System (XIS) designed for dual-view x-ray screening. Its powerful dual generators provide upward and diagonal viewing angles of screened objects. Each view can be manipulated independently, allowing operators to perform rapid and in-depth inspections while simultaneously using different screening modes.
With Astrophysics’ best-in-class imaging software, the XIS-6545DV™ allows operators to inspect objects with colorful, high-contrast filters and identify materials, recognize objects and isolate threats with increased speed and accuracy.
The XIS-6545DV is a dual view X-Ray Inspection System with tunnel dimensions 65.0 cm x 45.0 cm (25.6” x 17.7”). Designed for high threat security locales, the XIS- 6545DV is ideal for airports, government, facilities, ports, hospitals, and banks.
The XIS-6545DV features dual X-Ray generators to create two different image perspectives which can be manipulated independently. By utilizing dual view technology, alongside 6 Color Imaging and Atomic Z-Number Measurement, the XIS-6545DV provides unparalleled threat identification.
Ultimately, the XIS-6545DV dual view x ray maximizes throughput and enhances detection in locations where time efficiency and high security screening is crucial.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
65.7 cm x 45.1 cm |
| Dimensions (LxWxH) |
213.3 cm x 101.6 cm x 129.0 cm 84.0” x 40.0” x 50.8” |
| Shipping Dimensions (LxWxH) |
279.4 cm x 114.3 cm x 165.1 cm 110.0” x 45.0” x 65.0“ |
| Net Weight | 862 kg (1900 lbs) |
| Shipping Weight | 975 kg (2150 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 70.4 cm (27.7”) from Floor |
| Conveyor Capacity | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.2 mA |
| Wire Resolution | 41 AWG Typical, 40 AWG Standard |
| Steel Penetration | 41 mm Typical, 39 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 21.5” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation and ports and border sites worldwide |
Astrophysics XIS-6545DV X-ray Airport Baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545DV Baggage Scanner in Bangladesh start from Tk 10,00,000 only. Buy Astrophysics XIS-6545DV from Dhaka at reasonable price in GCTL.
The XIS-6545DV is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-6545DV provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
