Astrophysics-XIS-6545 X-Ray Inspection System
Astrophysics-XIS-6545 X-Ray Inspection System
Brand : Astrophysics
Model : XIS-6545
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
High-resolution images with 24-bit color
Enhanced material discrimination
Windows Operating System with Intel Core Processor
Real-time diagnostics
High-contrast image analysis

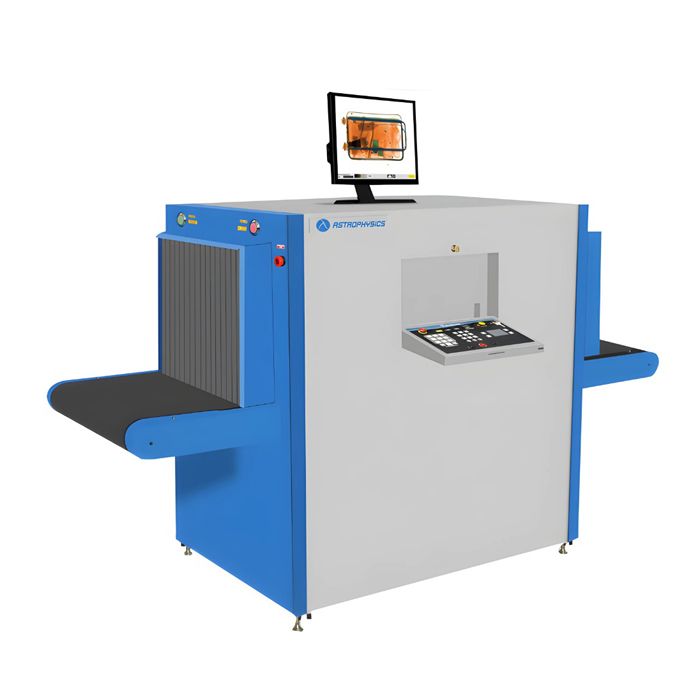

Astrophysics-XIS-6545 X-Ray Inspection System
The XIS-6545 is a robust and reliable X-Ray Inspection System (XIS), designed with both a narrow frame and large tunnel enabling it to screen a wide range of bags and parcels. Its highly calibrated x-ray geometry delivers crisp, clear images that make it easy for operators to clearly distinguish objects, even in crowded bags.
The XIS-6545’s superior image quality enables high screening throughput, reducing the time spent on false alarms and secondary inspections, making the system well-suited for a variety of checkpoints and security missions.
The XIS-6545 is the ultimate X-Ray Inspection System with a tunnel opening of 65.0 cm x 45.1 cm (25.6” x 17.8”). Designed for small to medium sized objects, the XIS-6545 is the first product ever manufactured by Astrophysics and is characterized by its reliability, optimal dimensions and effective threat detection.
The XIS-6545 x ray inspection system boasts a diverse application range from courthouses, prisons, hospitals, and airport checkpoints. With a standard 160kV generator, the XIS-6545 is also available for upgrade to a 180kV generator for enhanced penetration.
Among the most commonly sold XIS units, it is a quality checkpoint system featuring Astrophysics superior XIS software and maximized throughput.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
65.0 cm x 45.1 cm |
| Dimensions (LxWxH) |
153.4 cm x 87.7 cm x 130.5 cm |
| Shipping Dimensions (LxWxH) |
165.1 cm x 96.5 cm x 160.0 cm 65.0” x 38.0” x 63.0” |
| Net Weight | 476 kg (1050 lbs) |
| Shipping Weight | 522 kg (1150 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 71.9 cm (28.3”) from Floor |
| Conveyor Capacity | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | 160kV, Operating at 150kV |
| Tube Current | 0.7 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 39 mm Typical, 37 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | 21.5” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner | Automatic Voltage Regulator (AVR), 600VA |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics-XIS-6545 X-Ray Inspection System Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545 Baggage Scanner in Bangladesh Tk 10,50,000 only. Buy Astrophysics XIS-6545 from Dhaka at reasonable price in GCTL.
The XIS-6545 is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-654 provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
