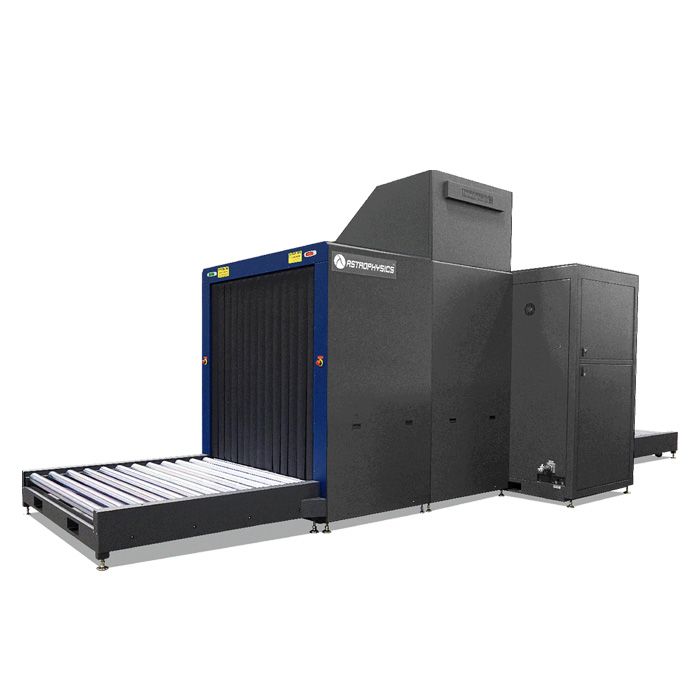

Astrophysics XIS-1818DV X-ray Inspection System
Astrophysics XIS-1818DV X-ray Inspection System
Brand : Astrophysics
Model : XIS-1818DV
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual-view imaging
Heavy-duty roller bed
High-resolution images with 24-bit color
Multi-colored material discrimination
Windows Operating System with Intel® Core™ Processor
Real-time diagnostics
High-contrast image analysis
Astrophysics XIS-1818DV X-ray Inspection System
Astrophysics XIS-1818DV X-ray Inspection System is designed for high-efficiency screening in busy security checkpoints, offering detailed and clear images for effective baggage inspection. Built with advanced X-ray imaging technology, this scanner provides enhanced detection and analysis of a wide range of threats and prohibited items. It's large tunnel size makes it ideal for screening large and bulky items, offering an optimal balance of performance and reliability.
XIS-1818DV 320kV is a dual-view X-ray Inspection System designed to scan baggage and hold cargo. Its generator delivers improved steel penetration and its heavy-duty roller bed speeds up freight loading and unloading. Dual imaging system provides operators with two views of scanned objects. Each view can be manipulated independently, allowing operators to examine objects with separate imaging filters at the same time. Combined with Astrophysics’ best-in-class software, the XIS-1818DV 320kV allows operators to recognize objects, identify materials and isolate threats with greater speed and accuracy.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
181.0 cm x 180.5 cm 71.3” x 71.1” |
| Dimensions (LxWxH) |
853.1 cm x 289.6 cm x 316.8 cm 335.9” x 114.0” x 124.7” |
|
Shipping Dimensions (LxWxH) |
863.1 cm x 269.1 cm x 296.3 cm |
| Net Weight | 6123 kg (13500 lbs) |
| Shipping Weight | 7300 kg (16094 lbs) |
| Conveyor Speed | 20 cm/s (40 ft or 12m/min) |
| Conveyor Height | 38.3 cm (15.0”) from Floor |
| Conveyor Capacity | 3000 kg (6613 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 200kV Generators |
| Tube Current | Dual 1.0 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 52 mm Typical, 50 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Horizontally Sideward, Vertically Downward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner | Uninterruptible Power Supply (UPS) (Computer Operation) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 200KV Generator Upgrade | |
| Penetration | 40 mm Steel Typical, 38 mm Standard |
|
Safeguarding critical infrastructure, aviation and ports and border sites worldwide |
Astrophysics XIS-1818DV X-ray Inspection System Price in Bangladesh
Buy reasonable price of Astrophysics XIS-1818DV Baggage Scanner in Bangladesh start from Tk 10,00,000 only. Buy Astrophysics XIS-1818DV from Dhaka at reasonable price in GCTL.
The XIS-1818DV is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-1818DV provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
