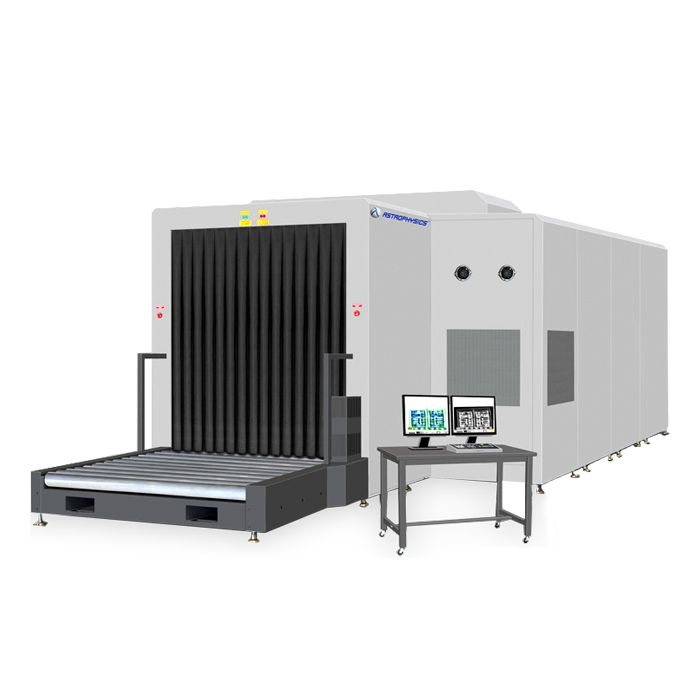

Astrophysics XIS-1517DV X-ray Baggage Inspection System
Astrophysics XIS-1517DV 200kV X-Ray Inspection System
Brand : Astrophysics
Model : XIS-1517DV
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual-view imaging
200kV generators with increased steel penetration
Heavy-duty roller bed
High-resolution images with 24-bit color
Multi-colored material discrimination
Windows Operating System with Intel® Core™ Processor
Real-time diagnostics
High-contrast image analysis
Astrophysics XIS-1517DV 200kV X-Ray Inspection System
The XIS-1517DVTM 200kV is a dual-view X-Ray Inspection System (XIS) designed for cargo screening. The system features a heavy duty roller bed only 38.3 cm (15”) above the floor, convenient for loading and unloading freight. Its dual 200kV generators provide 52 mm of steel penetration and clear, highresolution images, making it an ideal solution for airports, logistics centers, and customs facilities.
All Astrophysics X-ray Inspection Systems are equipped with Real-Time Diagnostics, a unique Astrophysics feature which allows users to monitor system health. This software was specifically engineered to save you valuable time and money. If requested, Astrophysics would also be able to connect to your system and troubleshoot any issues remotely.
An exclusive Astrophysics option is our 6 Color Imaging, which enables operators to view screened objects in 6 colors, each color correlating to a specific range of Atomic Z-Numbers. 6 Color Imaging enables operators to achieve optimal material identification which improves throughputs.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
150.2 cm x 170.2 cm 59.1” x 67.0” |
| Dimensions (LxWxH) |
853.1 cm x 259.1 cm x 286.3 cm |
| Shipping Dimensions (LxWxH) |
863.1 cm x 269.1 cm x 296.3 cm |
| Net Weight | 5300 kg (11685 lbs) |
| Shipping Weight | 920.3 kg (13052 lbs) |
| Conveyor Speed | 20 cm/s (40 ft or 12m/min) |
| Conveyor Height | 38.3 cm (15.0”) from Floor |
| Conveyor Capacity | 3000 kg (6613 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 200kV |
| Tube Current | Dual 1.0 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 52 mm Typical, 50 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Horizontally Sideward, Vertically Downward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner | Uninterruptible Power Supply (UPS) (Computer Operation) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 200KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-1517DV X-Ray Inspection System Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545 Baggage Scanner in Bangladesh Tk 10,50,000 only. Buy Astrophysics XIS-1517DV from Dhaka at reasonable price in GCTL.
The XIS-1517DV is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-1517DV provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
| Call for Price | Yes |
|---|---|
| Brand | Others |
