Astrophysics XIS-1080D X-Ray Baggage Scanner Solution
Astrophysics XIS-1080D X-Ray Inspection System
Brand : Astrophysics
Model : XIS-1080D
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Small Footprint
High Image Resolution with 24-Bit Color
Enhance Material Discrimination
Windows Operating System with Intel® Core™ Processor
Real-Time Diagnostics
High-Contrast Image Analysis

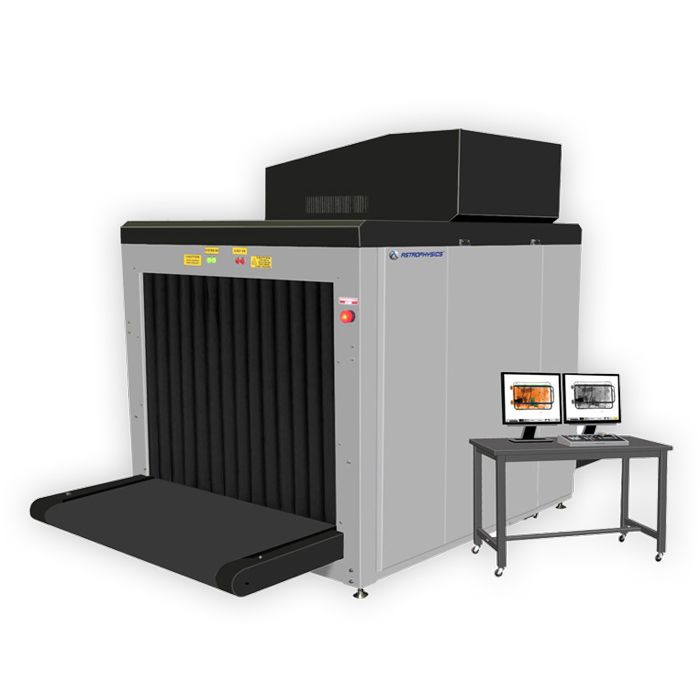

Astrophysics XIS-1080D X-Ray Baggage Scanner
The XIS-1080D is a compact X-Ray Inspection System (XIS) built to screen heavy baggage. Its conveyor can support up to 200 kg (440 lbs.) and is only 30 cm (12.0”) above the floor, to help crews load and unload freight. A high-resolution generator provides clear images that make it easy to inspect dense, tightly-packed bags and parcels. Colorful material discrimination and enhanced image filters allows operators to recognize objects, identify materials, and isolate threats with better speed and accuracy.
The XIS-1080D has a small operational footprint that makes it well-suited to confined spaces that require strong protection against weapons, explosives, and contraband.
The XIS-1080D is an advanced X-Ray Inspection System that offers tunnel dimensions of 101.0 cm x 80.0 cm (40.0” x 31.4”). Significantly, with a low conveyor height of just 30 cm (12”), it facilitates fast loading and is well suited for heavy object screening.
With a redesigned XIS-1080 frame, the XIS-1080D embodies efficiency and ease of use for operators. The XIS-1080D boasts reliability and increased throughput rate due to its convenient conveyor height.
Moreover, the XIS-1080D x ray inspection system is the smallest of the XIS Series for medium capacity screening and is ideally suited for locales with high congestion, limited system space and heavy object screening.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
101.6 cm x 80.0 cm |
| Dimensions (LxWxH) |
242.2 cm x 127.5 cm x 171.4 cm |
| Shipping Dimensions (LxWxH) |
228.6 cm x 145.5 cm x 223.5 cm 90.0” x 57.3” x 88.0” |
| Net Weight | 912 kg (2010 lbs) |
| Shipping Weight | 1043 kg (2300 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 30.0 cm (12.0”) from Floor |
| Conveyor Capacity | 220 kg (485 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.2 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 37 mm Typical, 35 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 37 mm Steel Typical, 35 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-1080D X-ray baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-1080DBaggage Scanner in Bangladesh start from Tk 10,50,000 only. Buy Astrophysics XIS-100XDV from Dhaka at reasonable price in GCTL.
The XIS-1080D is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-1080D provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
| Call for Price | Yes |
|---|---|
| Brand | Others |
