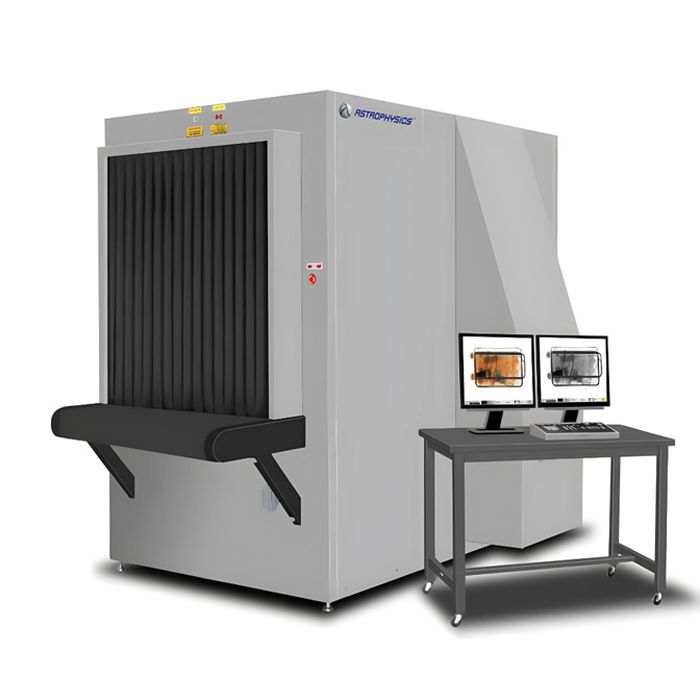

Astrophysics XIS-100XDV Security X-ray baggage Scanner
Astrophysics XIS-100XDV Security X-ray baggage Scanner
Brand : Astrophysics
Model : XIS-100XDV
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual-View X-Ray Generators with Detachable Side Shooter
High Image Resolution with 24-Bit Color
Enhanced Material Discrimination
Windows Operating System with Intel® Core™ Processor
Real-Time Diagnostics
High-Contrast Image Analysis
Astrophysics XIS-100XDV Security X-ray baggage Scanner
The XIS-100XDV is a dual-view X-Ray Inspection System (XIS) designed for large baggage and parcels. Its generators provide side and bottom views of scanned objects. Each view can be manipulated independently, allowing operators to inspect objects in different imaging modes simultaneously.
The XIS-100XDV is equipped with a detachable side shooter, a one-of-a-kind innovation that makes it easy to maneuver the system in confined areas and reassemble it in an hour. Its advanced analytic software helps operator’s separate materials and identify threats in less time and with greater accuracy, while its superior image quality ensures high throughput.
Designed for high-threat security, the XIS-100XDV is a dual view X-Ray Inspection System with a generous tunnel size of 100.3 cm x 100.1 cm (39.5” x 39.43”). The XIS-100XDV is well-suited for airports, military and government sites.
Boasting two x-ray generators, it produces two screening perspectives and allows operators to manipulate each independently. Thus, the XIS-100XDV enhances operator’s ability to identify potential security threats with increased accuracy and speed.
Combined with dual view technology and Astrophysics software, the XIS-100XDV dual view x ray is the ultimate solution for large object screening at inspection sites requiring heightened security protection.
An exclusive Astrophysics option is our 6 Color Imaging, which enables operators to view screened objects in 6 colors, each color correlating to a specific range of Atomic Z-Numbers. 6 Color Imaging enables operators to achieve optimal material identification which improves throughputs.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
100.3 cm x 100.1 cm |
| Dimensions (LxWxH) |
303.1 cm x 176.6 cm x 197.8 cm |
| Shipping Dimensions (LxWxH) |
345.4 cm x 194.3 cm x 224.8 cm |
| Net Weight | 1565 kg (3450 lbs) |
| Shipping Weight | 1746 kg (3850 lbs) |
| Conveyor Speed | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height | 76.8 cm (30.2”) from Floor |
| Conveyor Capacity | 220 kg (485 lbs) Evenly Distributed Load |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.2 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 39 mm Typical, 37 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Diagonally Upward, Horizontally Sideward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | Dual 24” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner |
Uninterruptible Power Supply (UPS) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 180KV Generator Upgrade | |
| Penetration | 39 mm Steel Typical, 37 mm Standard |
| Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics XIS-100XDV Security X-ray baggage Scanner Price in Bangladesh
Buy reasonable price of Astrophysics XIS-100XDV Baggage Scanner in Bangladesh start from Tk 10,50,000 only. Buy Astrophysics XIS-100XDV from Dhaka at reasonable price in GCTL.
The XIS-6545 is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-100XDV provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
