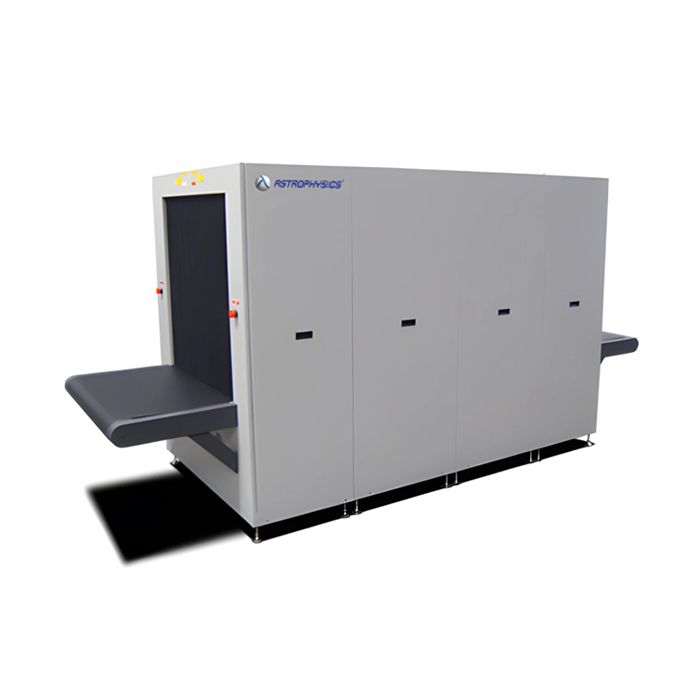

Astrophysics XIS-100XDV-MD Checkpoint Security X-Ray Machine
Astrophysics XIS-100XDV-MD Checkpoint Security X-Ray Machine
Brand : Astrophysics
Model : XIS-100XDV-MD
Brand Origin: USA
Manufacture from: USA
Feature Highlights:
Dual-View X-Ray Generators
Modular Design Aids Integration
High Image Resolution with 24-Bit Color
6 Color Material Discrimination
Real-Time Diagnostics
High-Contrast Image Analysis
Astrophysics XIS-100XDV-MD Checkpoint Security X-Ray Machine
The XIS-100XDV-MD Designed for high-threat security, the modular XIS-100XDV MD is a dual view X-Ray Inspection System with a generous tunnel size of 101.0 cm x 101.5 cm. Based on our standard XIS-100XDV, the MD (modular design) version is built in separate modules, each with their own set of casters to allow for easy installation and integration into facilities where space may be an issue.
Boasting two x-ray generators, the XIS-100XDV MD produces two screening perspectives and allows operators to manipulate each independently, thus enhancing the operator’s ability to identify potential security threats with increased accuracy and speed. The XIS-100XDV MD is the ultimate solution for large object screening at inspection sites requiring heightened security protection.
Technical Specifications:
| General Specification | |
|
Tunnel Size (WxH) |
101.0 cm x 101.5 cm |
| Dimensions (LxWxH) |
380.7 cm x 165.4 cm x 182.2 cm |
| Shipping Dimensions (LxWxH) |
390.7 cm x 175.4 cm x 192.2 cm |
| Net Weight | 250 kg (551.156 lbs) |
| Shipping Weight | 300 kg (661.387 lbs) |
| Conveyor Speed | 20 cm/s (40 ft or 12m/min) |
| Conveyor Height | 38.3 cm (15.0”) from Floor |
| Conveyor Capacity | 2000 kg (4409.245 lbs) |
| X-RAY Generator | |
| Voltage | Dual 180kV, Operating at 165kV |
| Tube Current | Dual 1.0 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 52 mm Typical, 50 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Procedure Required |
| Beam Direction | Horizontally Sideward, Vertically Downward |
| Computer Display | |
| Operating System | Windows 10 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Display Type | 21.5” Flat Monitor |
| Display Resolution | 1920 x 1080 |
| Environmental Specification | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up To 95% Non-Condensing |
| Electrical Specification | |
| System Power | 110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner | Uninterruptible Power Supply (UPS) (Computer Operation) |
| Health and Safety |
| Compliant with USFDA Center for Devices and Radiation Health |
| Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Typical radiation leakage is less than 0.1 mR/hr |
| Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards |
| 200KV Generator Upgrade | |
| Penetration | 41 mm Steel Typical, 39 mm Standard |
|
Safeguarding critical infrastructure, aviation, and ports and border sites worldwide |
Astrophysics-XIS-6545 X-Ray Inspection System Price in Bangladesh
Buy reasonable price of Astrophysics XIS-6545 Baggage Scanner in Bangladesh start from Tk 10,50,000 only. Buy Astrophysics XIS-100XDV-MD from Dhaka at reasonable price in GCTL.
The XIS-100XDV-MD is a field proven X-Ray Inspection System designed with a wide tunnel to accommodate a larger variety of screened objects while minimizing floor space. Ideal for high-volume screening sites, the XIS-100XDV-MD provides high-resolution images enabling operators to identify materials and isolate threats with speed and accuracy. The Number One Global Manufacturer of critical infrastructure products, Astrophysics is the clear choice.
